Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

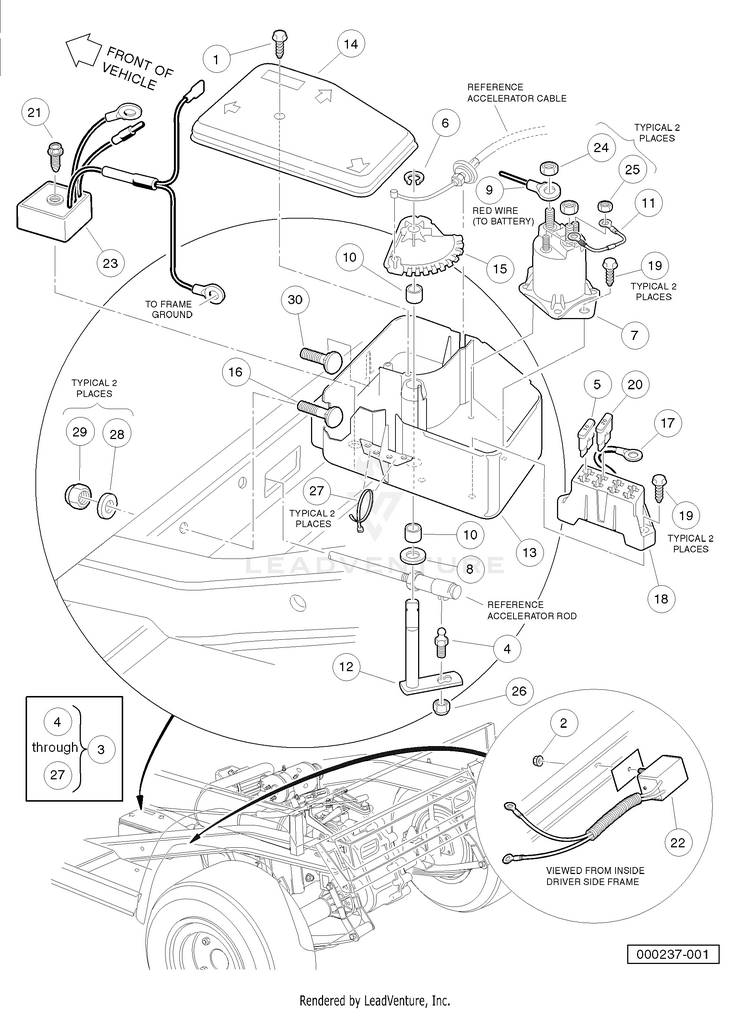

Electrical Component Box

...
...
1
SCREW, #12-16 X .625 HI-LO HUS-603000268
...
2
LOCKNUT, 5/16-18 HEX FLANGE HUS-603000616
...
4
STUD HUS-603000117
...
5
10 AMP FUSE HUS-603000135
...
6
RING HUS-603000177
...
7
SOLENOID, 12 VOLT HUS-603000180
...
8
WASHER HUS-603000204
...
9
WIRE ASSY #6 RED HUS-603000211
...
10
BUSHING, SECONDARY WGHT SPLIT HUS-603000215
...
11
ASM, DIODE HUS-603000238
...
12
BELL CRANK AND SHAFT ASSY HUS-603000249
...
13
BOX, ELECTRICAL COMPONENT HUS-603000251
...
14
COVER, OHV ELECTRIC BOX HUS-603000252
...
15
CAM, ELECTRIC BOX HUS-603000253
...
16
BOLT,5/16-18 X 2.0 RD HD SQ NK HUS-603000257
...
17
WIRE ASSY, #10 RED HUS-603000266
...
18
FUSE BLOCK HUS-603000267
...
19
SCREW, #12-16 X .625 HI-LO HUS-603000268
...
20
FUSE - 20 AMP HUS-603000293
...
21
SCREW, 1/4-15 X .50 HI-LO HEX HUS-603000526
...
22
DIODE ASSY HUS-603000826
...
23
ASM, VOLTAGE REGULATOR HUS-603002287
...
24
NUT, 5/16-18 HEX HUS-603000066
...
25
NUT, #10-32 HEX HUS-603000084
...
26
LOCKNUT, 1/4-28 NYLON INSERT HUS-603000094
...
27
TIE WRAP, 8" NYLON HUS-603002963
...
28
WASHER, 5/16 TYPE A FLAT HUS-603000065
...
29
LOCKNUT, 5/16-18 NYLON INSERT HUS-603000078
...
30
BOLT 5/16-18 X 1.5 HUS-603000082
