Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

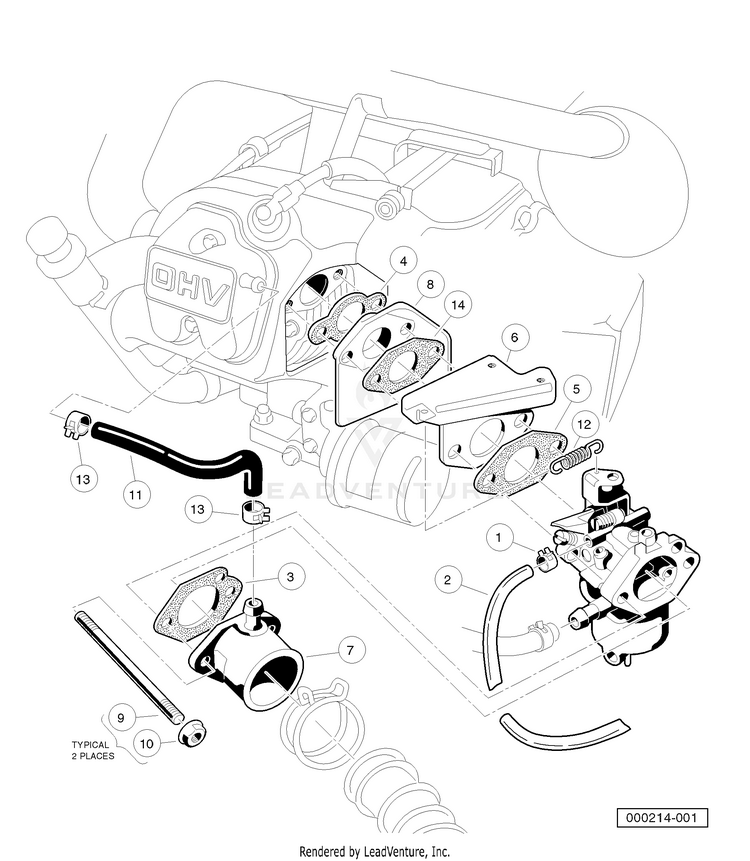

Carburetor Installation - FE350

...
...
1
CLAMP HUS-603000185
...
2
FUEL LINE (available by the foot) HUS-603000240
...
3
GASKET, CARB TO INTAKE MANIFOL HUS-603000298
...
4
GASKET, ENGINE TO INSULATOR HUS-603000299
...
5
GASKET, SPRG BRKT TO CARB OHV HUS-603000300
...
6
BRACKET, THROTTLE SPRG RETURN HUS-603000302
...
7
PIPE, INTAKE MANIFOLD HUS-603000317
...
8
INSULATOR, CARBURETOR HUS-603000470
...
9
STUD, M6-1.00 2-ENDED HUS-603000472
...
10
NUT HUS-603000341
...
11
TUBE, CRANKCASE VENT HUS-603000352
...
12
SPRING, THROTTLE RETURN HUS-603000358
...
13
CLAMP HUS-603000411
...
14
GASKET, INSULATOR TO BRACKET HUS-603000620
