Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

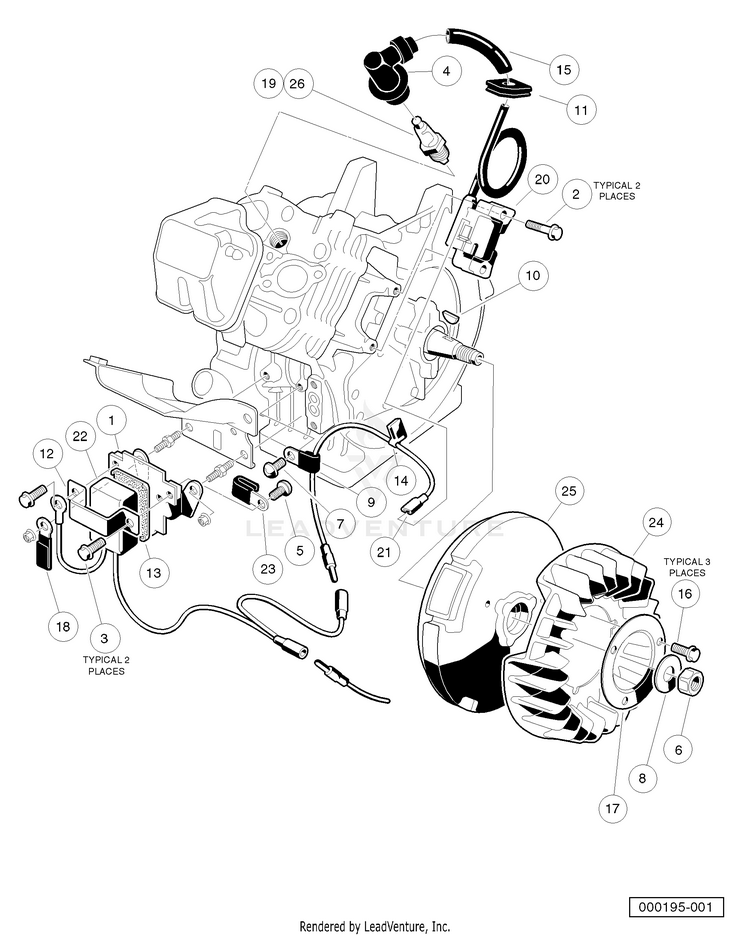

FE290 Engine - Ignition Components and Flywheel

...
...
1
BRACKET, RPM LIMITER HUS-603000303
...
2
BOLT, FLANGED HUS-603000308
...
3
BOLT, FLANGED HUS-603000309
...
4
CAP ASSEMBLY, PLUG HUS-603003119
...
5
SCREW, PAN WP CROSS HUS-603000323
...
6
NUT, HEX, FINE HUS-603003120
...
7
SCREW HUS-603000339
...
8
WASHER, M16 FLAT HUS-603003135
...
9
CLAMP HUS-603000344
...
10
KEY HUS-603000345
...
11
GROMMET HUS-603000355
...
12
BAND, RPM LIMITER MOUNT HUS-603000356
...
13
DAMPER, RPM LIMITER HUS-603000362
...
14
CLAMP HUS-603000363
...
15
TUBE, 7MM X 10MM X 70MM HUS-603000364
...
16
BOLT - FLANGED HUS-603000402
...
17
PLATE HUS-603000405
...
18
CLAMP HUS-603004379
...
19
SPARK PLUG OHV (Autolite) HUS-603000007
...
20
COIL, IGNITION HUS-603000581
...
21
LEAD WIRE ASSY HUS-603000582
...
22
LIMITER, RPM HUS-603000583
...
24
FAN, FE290 CW (cw) HUS-603003228
...
25
Flywheel, Complete HUS-603004482
...
26
NGK OHV SPARK PLUG (NGK) HUS-603000580
