Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

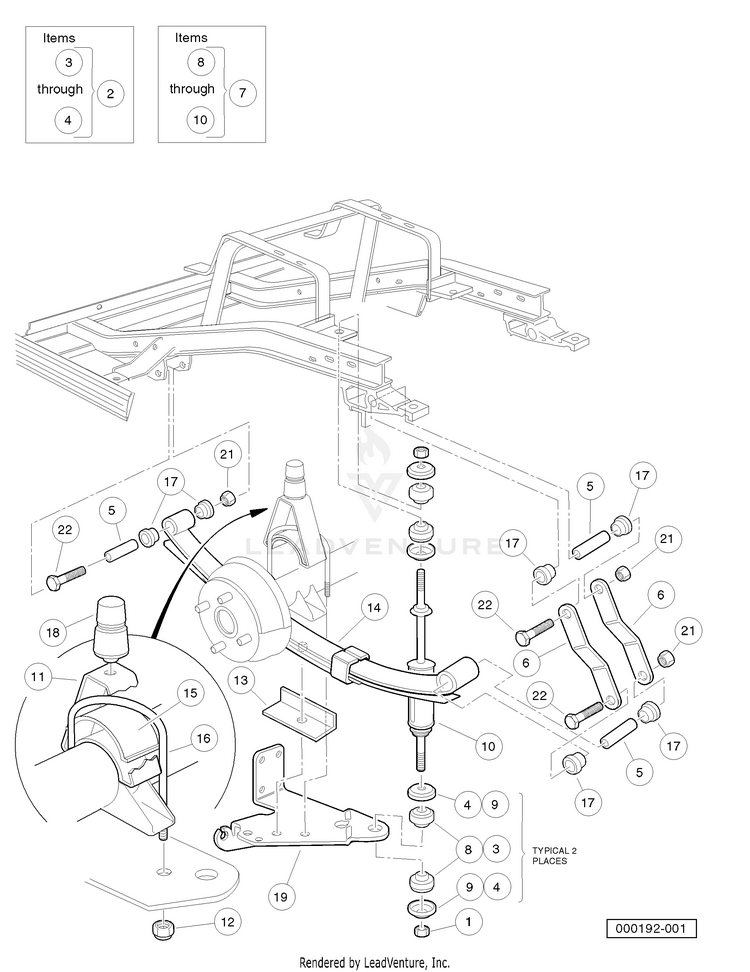

Rear Suspension - Vehicles with Two-Wheel Brakes

...
...
1
NUT, 3/8-24 HEX HUS-603000104
...
2
SHOCK ABSORBER CUSHION KIT (includes items 3 and 4) HUS-603003022
...
5
BUSHING - STEEL (GAS CAR) HUS-603000136
...
6
SHACKLE, REAR SPRING -GAS STR HUS-603003052
...
7
SHOCK ABSORBER KIT (includes items 8 through 10) HUS-603003056
...
10
SHOCK ABSORBER REAR PRV SPD HUS-603004378
...
11
BUMPER MOUNT ANGLED - ELECTRIC HUS-603003076
...
12
LOCKNUT HUS-603000233
...
13
SPRING RETAINER HUS-603003077
...
14
REAR LEAF SPRING HUS-603003078
...
15
SPACER - OVERLOAD BUMPER CA HUS-603003079
...
16
U - BOLT HUS-603003080
...
17
BUSHING, URETHANE HUS-603000263
...
18
BUMPER, JOUNCE HUS-603003159
...
19
BRACKET, LEFT HAND HUS-603003633
...
20
BRACKET RIGHT HAND HUS-603003634
...
21
LOCKNUT, 3/8-16 HEX HUS-603000095
...
22
SCREW, 3/8-16 X 3.375 HUS-603000096
