Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

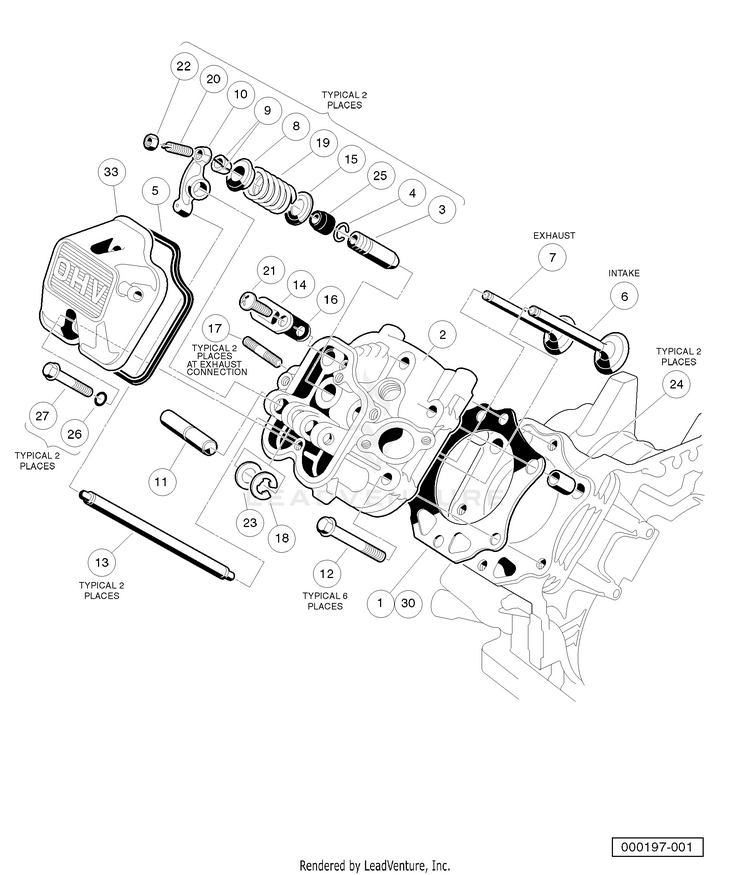

FE290 Engine - Cylinder Head

...
...
1
GASKET, FE290 HEAD HUS-603003097
...
2
HEAD ASSY, FE290 CYLINDER (includes items 3 and 4) HUS-603003098
...
3
GUIDE, VALVE, INTAKE HUS-603000331
...
4
SNAP RING HUS-603000343
...
5
GASKET, ROCKER CASE HUS-603000296
...
6
VALVE - INTAKE HUS-603003103
...
7
VALVE - EXHAUST HUS-603003104
...
8
RETAINER - VALVE SPRING HUS-603000304
...
9
COLLET HUS-603000305
...
11
SHAFT - ROCKER HUS-603000306
...
12
BOLT, FLANGED HUS-603000311
...
13
ROD, PUSH HUS-603003115
...
14
PLATE HUS-603000315
...
15
SEAT, SPRING HUS-603000316
...
16
VALVE HUS-603000318
...
17
STUD, M8-1.25 2-ENDED HUS-603000320
...
18
CIRCLIP - TYPE - E HUS-603000330
...
19
SPRING, ENGINE VALVE HUS-603003126
...
20
SCREW HUS-603003133
...
21
SCREW HUS-603000339
...
22
NUT HUS-603003134
...
23
WASHER, 12.1X19X1.8 HUS-603000342
...
24
PIN HUS-603000346
...
25
SEAL, OIL HUS-603000348
...
26
O-RING HUS-603000349
...
27
BOLT, 6X35 HUS-603000359
...
28
GASKET KIT, FE290 (includes items 29 through 32) HUS-603003255
...
29
GASKET, OHV EXHAUST HUS-603003083
...
30
GASKET, FE290 HEAD HUS-603003097
...
31
GASKET, ENGINE TO INSULATOR HUS-603000299
...
32
GASKET, CRANKCASE COVER HUS-603003102
...
33
CASE, ROCKER -W/O LOGO FE290 HUS-603000301
