Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

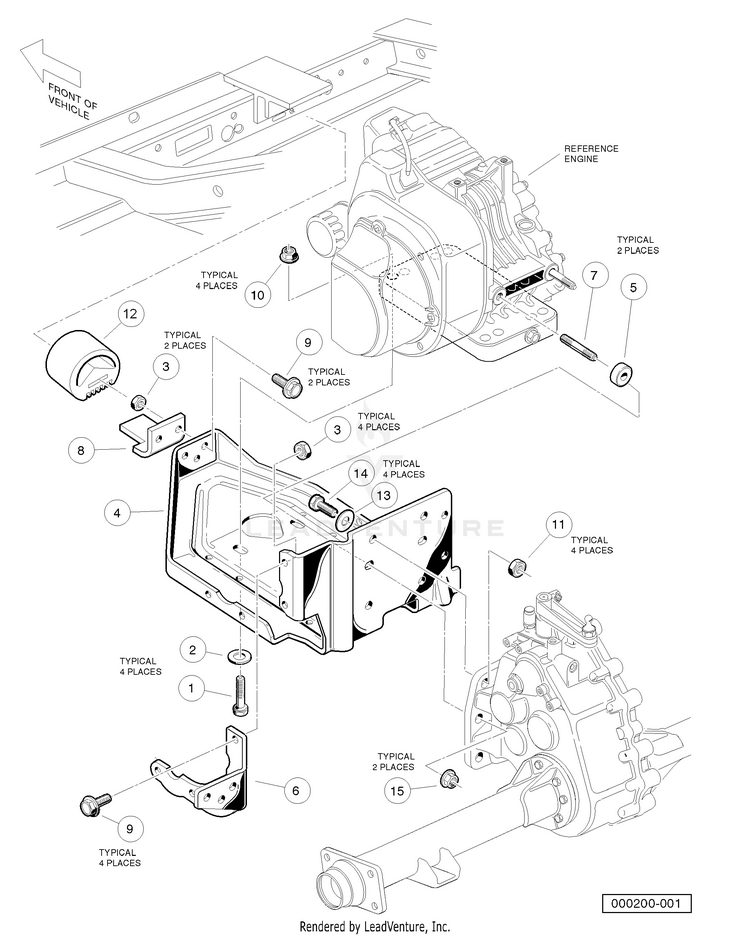

FE290 Engine Mounting

...
...
1
BOLT HEX HEAD HUS-603000111
...
2
WASHER HUS-603000145
...
3
NUT HUS-603000193
...
4
PLATE, ENGINE MOUNTING HUS-603000505
...
5
SPACER, POWDERED METAL HUS-603000507
...
6
STIFFENER, FLYWHEEL SIDE (Flywheel Side) HUS-603000511
...
7
STUD, M8-1.25 X 60MM 2-ENDED HUS-603000514
...
8
SNUBBER BRACKET HUS-603000519
...
9
SCREW, 5/16-24 X .875 GR8 FLNG HUS-603000556
...
10
LOCKNUT, 5/16-18 HEX FLANGE HUS-603000616
...
11
LOCKNUT, 3/8-16 FLANGED DIMPLE HUS-603000780
...
12
INNER FRAME SNUBBER HUS-603000133
...
13
WASHER, 3/8 FLAT HUS-603000055
...
14
SCREW HUS-603000059
...
15
NUT, M8-1.25 FLANGED HEX HUS-603000512
