Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

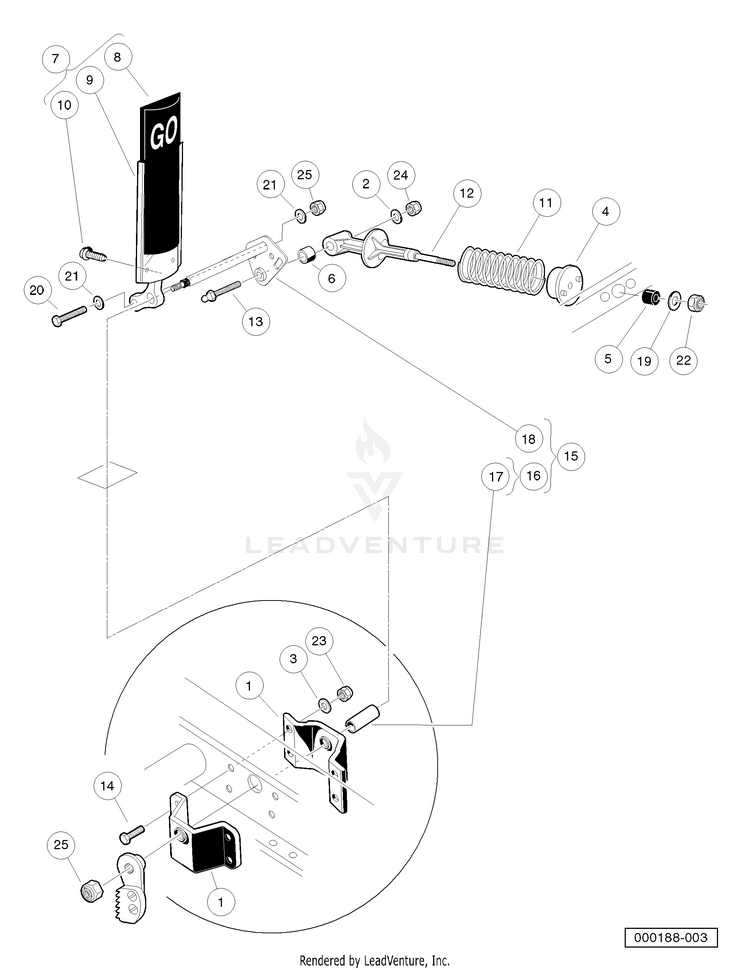

Accelerator Pedal Assembly

...
...
1
ACCEL BRKT & BEARING ASSY HUS-603000126
...
2
WASHER, 1/4 FLAT HUS-603003048
...
3
WASHER HUS-603000194
...
4
CUP, SPRING HUS-603000392
...
5
BUMPER, SPRING RETURN HUS-603000393
...
6
BEARING, PIVOT SUPPORT HUS-603000395
...
7
SUB ASM, ACCELERATOR PEDAL (includes items 8 through 10) HUS-603000432
...
8
PAD , ACCL PEDAL HUS-603000192
...
10
SCREW TYPE AB SHT MTL HUS-603000081
...
11
SPRING, ACCELERATOR RETURN HUS-603000490
...
12
RETAINER, SPRING HUS-603000499
...
13
STUD, 1/4-28 X 1.35 BALL HUS-603000500
...
14
SCREW, 1/4-20 X 1.125 HEX CAP HUS-603000528
...
15
ACCEL. PIVOT ROD ASM. KIT (includes items 16 through 18) HUS-603000697
...
16
SPACER ASSEMBLY (includes item 17) HUS-603002238
...
19
WASHER, 5/16 TYPE A FLAT HUS-603000065
...
20
SCREW, 3/8-16 X 1.5 HX HD CAP HUS-603000068
...
21
WASHER, 3/8 FLAT HUS-603000055
...
22
LOCKNUT, 5/16-18 NYLON INSERT HUS-603000078
...
23
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
24
LOCKNUT, 1/4-28 NYLON INSERT HUS-603000094
...
25
LOCKNUT, 3/8-16 HEX HUS-603000095
