Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

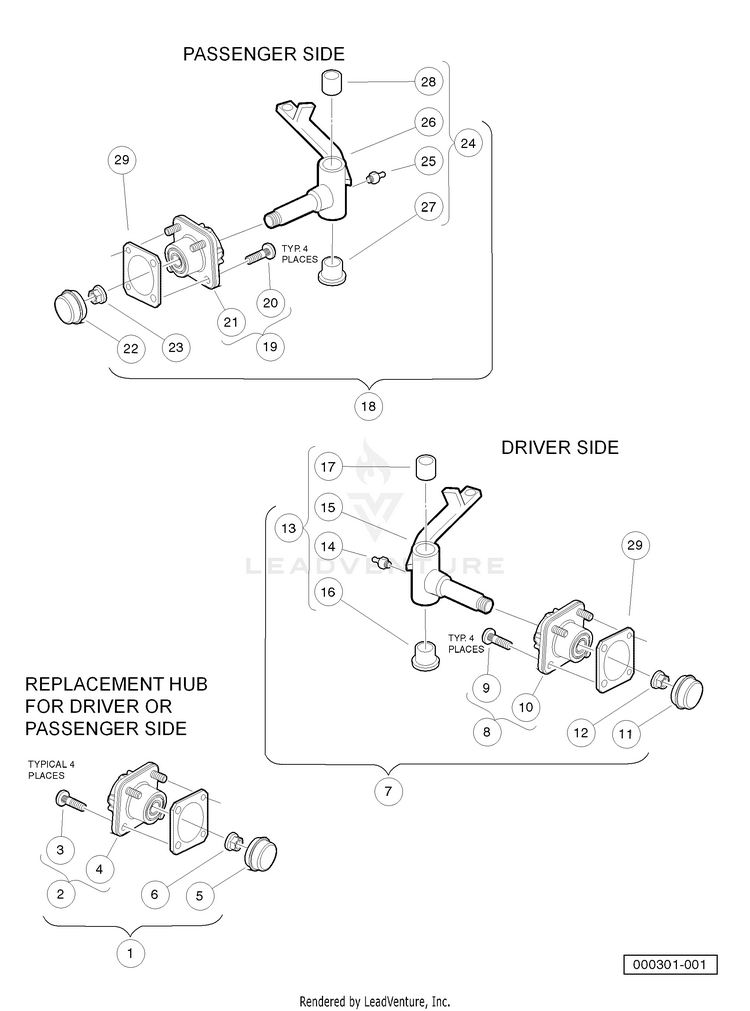

Front Spindles and Hubs - Earlier Style

...
...
1
REPLACEMENT KIT, FRONT HUB (includes items 2 through 6) HUS-603002269
...
3
LUG STUD, 1/2-20 UNF, 4037 STL HUS-603003260
...
5
CAP, FRONT HUB HUS-603003258
...
6
HEX NUT, LOCKING FLANGE, M14X2 HUS-603003259
...
9
LUG STUD, 1/2-20 UNF, 4037 STL HUS-603003260
...
11
CAP, FRONT HUB HUS-603003258
...
12
HEX NUT, LOCKING FLANGE, M14X2 HUS-603003259
...
13
ASM, SPINDLE, LH (includes items 14 through 17) HUS-603003262
...
14
FITTING, 1/4-28 THRD FRM GREAS HUS-603000264
...
16
BUSHING, FLANGED BROZE HUS-603000070
...
17
BUSHING BRONZE SPINDLE HUS-603000088
...
20
LUG STUD, 1/2-20 UNF, 4037 STL HUS-603003260
...
22
CAP, FRONT HUB HUS-603003258
...
23
HEX NUT, LOCKING FLANGE, M14X2 HUS-603003259
...
24
ASM, SPINDLE, RH (includes items 25 through 28) HUS-603003261
...
25
FITTING, 1/4-28 THRD FRM GREAS HUS-603000264
...
27
BUSHING, FLANGED BROZE HUS-603000070
...
28
BUSHING BRONZE SPINDLE HUS-603000088
...
29
SPACER, WHEEL HUS-603002367
