Husqvarna HUV 4210 GXP (2005-06) Utility Vehicle

Model: HUV 4210 GXP (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

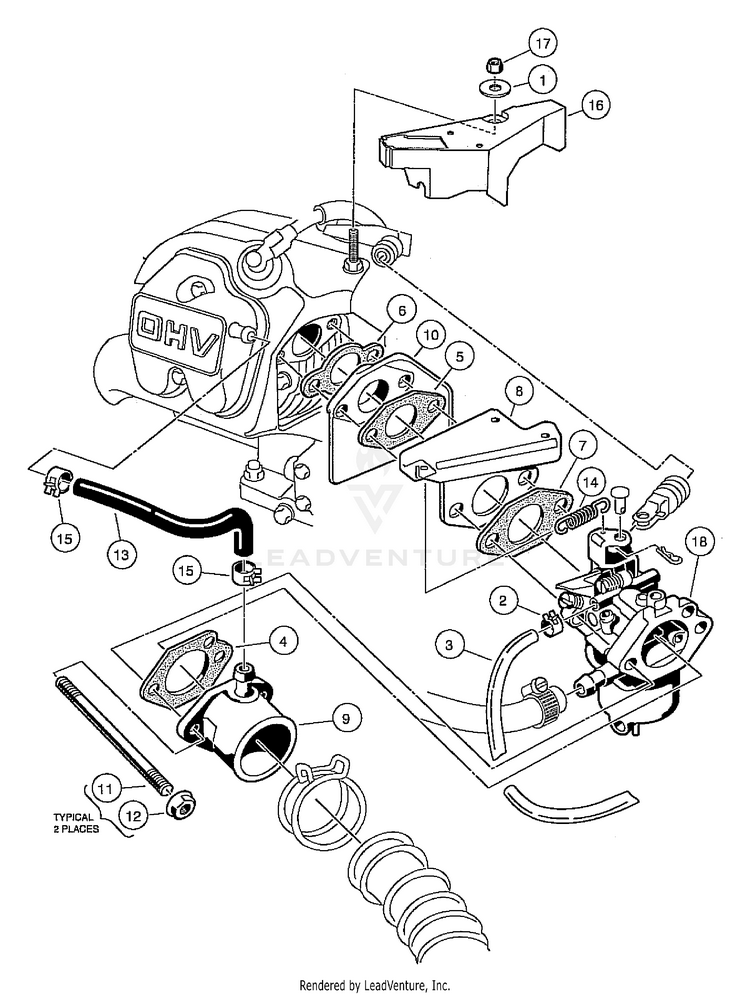

Carburetor Installation - FE290

...
...
1
WASHER, 5/16 FLAT HUS-603000127
...
2
CLAMP HUS-603000185
...
3
FUEL LINE (available by the foot) HUS-603000240
...
4
GASKET, CARB TO INTAKE MANIFOL HUS-603000298
...
5
GASKET, INSULATOR TO SPRG BRKT HUS-603003100
...
6
GASKET, ENGINE TO INSULATOR HUS-603000299
...
7
GASKET, SPRG BRKT TO CARB OHV HUS-603000300
...
8
BRACKET, THROTTLE SPRG RETURN HUS-603000302
...
9
PIPE, INTAKE MANIFOLD HUS-603000317
...
10
INSULATOR, CARBURETOR HUS-603000470
...
11
STUD, M6-1.00 2-ENDED HUS-603000472
...
12
NUT HUS-603000341
...
13
TUBE, CRANKCASE VENT HUS-603000352
...
14
SPRING, THROTTLE RETURN HUS-603000358
...
15
CLAMP HUS-603000411
...
16
SHIELD, GOVERNOR HUS-603003184
...
17
LOCKNUT, M6-1.00 NYLON INSERT HUS-603000558
...
18
CARBURETOR ASSY, FE290D (includes items 19 through 28) HUS-603003218
...
19
JET, HIGH ALTITUDE OHV HUS-603000467
...
20
GASKET, CARB. BOWL OHV HUS-603000297
...
21
FLOAT ASSEMBLY HUS-603000319
...
22
SCREW ASSEMBLY HUS-603000325
...
23
BOLT HUS-603000361
...
24
CHAMBER ASSEMBLY - FLOAT (includes item 25) HUS-603000409
...
25
SCREW ASSEMBLY HUS-603000324
...
26
JET, #40 PILOT HUS-603003242
...
27
NOZZLE, MAIN HUS-603003243
