Husqvarna HUV 4210 GXP (2005-06) Utility Vehicle

Model: HUV 4210 GXP (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

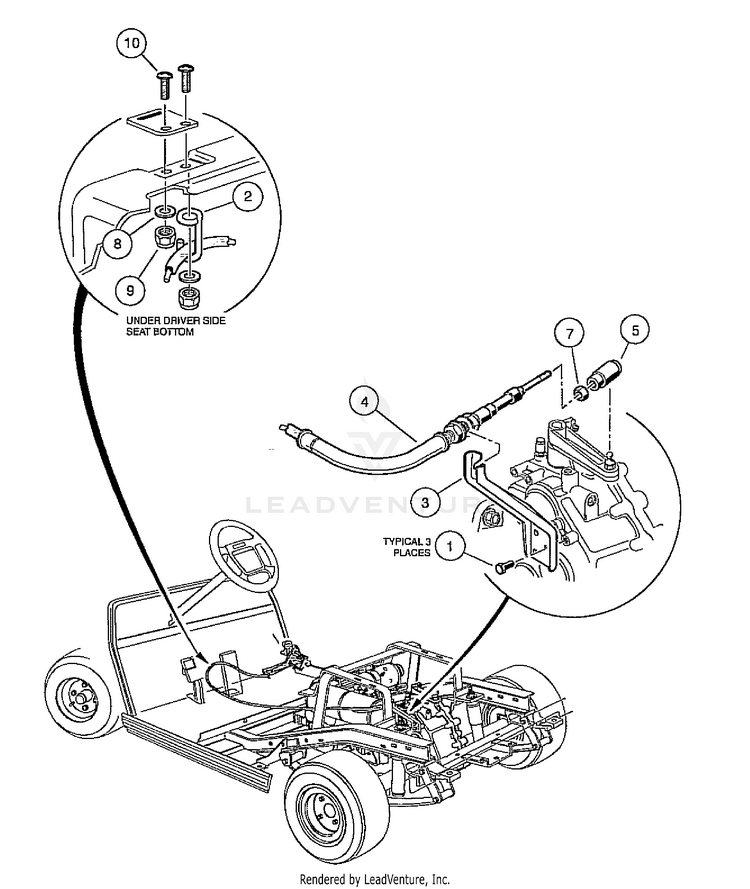

Transmission Cable - Gasoline Vehicle

...
...
1
SCREW HX TYP TT HUS-603000134
...
2
Cable Retainer HUS-603002201
...
3
SHIFTER BRACKET HUS-603003233
...
4
TRANS CABLE W/BALL JOINTS (includes items 5 through 7) HUS-603002243
...
5
JOINT, #10-32 BALL HUS-603000137
...
6
TRANS CABLE W/BALL JOINTS HUS-603002243
...
7
NUT, #10-32 HEX HUS-603000084
...
8
WASHER 1/4 FLAT HUS-603000054
...
9
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
10
SCREW, 1/4-20 X 1.0 TRS HD MCH HUS-603000091
