Husqvarna HUV 4210 GXP (2005-06) Utility Vehicle

Model: HUV 4210 GXP (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

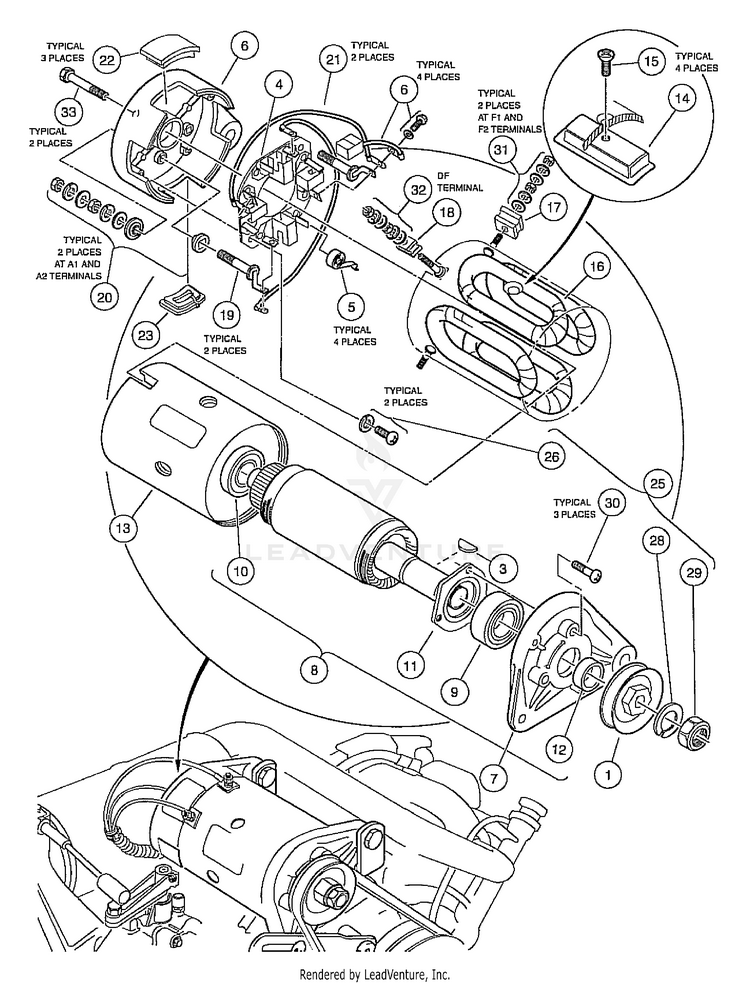

Starter/Generator Assembly - Gasoline Vehicle

...
...
1
PULLEY, STARTER GENERATOR HUS-603000221
...
2
STARTER-GENERATOR (CW) (includes Items 3 through 33) HUS-603000516
...
3
KEY, STARTER GENERATOR HUS-603000164
...
4
BRUSH HOLDER ASSEMBLY (CW) (includes item 5) HUS-603000456
...
5
BRUSH SPRING SET HUS-603000547
...
6
BRUSH & SCREW SET (CW) HUS-603000529
...
7
FRONT BRACKET HUS-603000530
...
8
Armature (includes items 9 through 12) HUS-603000532
...
9
BEARING HUS-603000163
...
10
BEARING, COMMUTATOR BALL HUS-603000165
...
11
RETAINER HUS-603000531
...
12
SPACER HUS-603000609
...
13
FIELD COIL HOUSING HUS-603000533
...
14
POLE SET HUS-603000534
...
15
SCREW SET HUS-603000535
...
16
FIELD STATOR COIL ASSEMBLY HUS-603000536
...
17
F INSULATOR SET HUS-603000537
...
18
DF INSULATOR HUS-603000538
...
19
A CONNECTOR (CW) HUS-603000539
...
20
SCREW & MOLD ASSEMBLY SET HUS-603000540
...
21
BRUSH CONNECTOR ASSEMBLY (CW) HUS-603000541
...
22
COVER SET (includes item 23) HUS-603000542
...
23
BRUSH PORT COVER W/ DRAIN HUS-603000429
...
24
REAR BRACKET (CW) HUS-603000543
...
25
NUT & SCREW SET (includes items 26 through 30) HUS-603000544
...
26
BRUSH HOLDER ASM SCREW HUS-603000574
...
31
NUT & WASHER SET HUS-603000545
...
32
NUT & WASHER SET HUS-603000546
...
33
THROUGH BOLT SET HUS-603000548
