Husqvarna HUV 4210 GXP (2005-06) Utility Vehicle

Model: HUV 4210 GXP (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

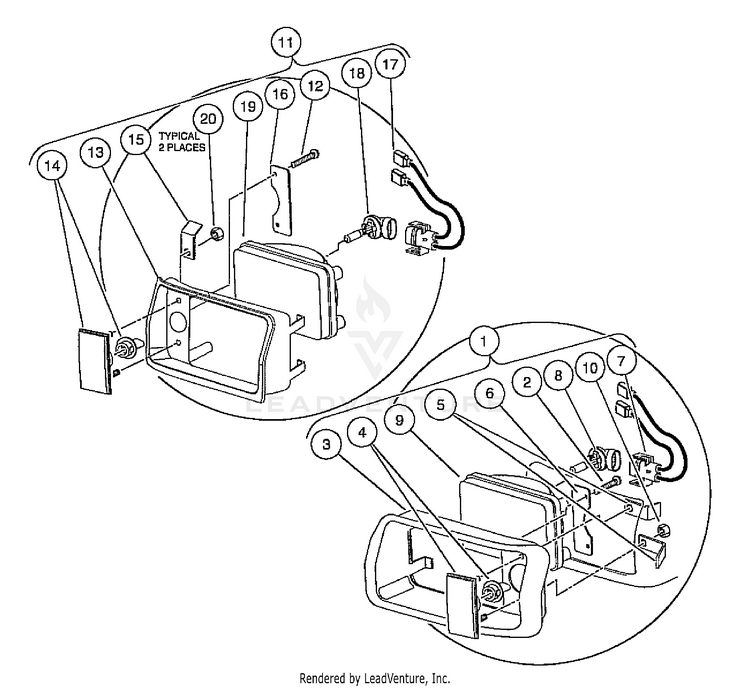

Headlight

...
...
1
HEADLIGHT ASSY, LH SINGLE BEAM (includes items 2 through 10) HUS-603000626
...
2
SCREW HUS-603000173
...
3
HEADLIGHT BEZEL - LEFT 93 HUS-603000374
...
4
TURN SIGNAL LENS ASSY HUS-603000380
...
5
MOUNTING BRKT HUS-603000381
...
6
HEADLIGHT RETAINER HUS-603000382
...
7
CONNECTOR HARNESS ASSY, HDLGHT HUS-603000625
...
8
BULB, HEADLIGHT HUS-603000628
...
9
LENS, HEADLIGHT HUS-603000629
...
10
NUT, #10-32 HEX HUS-603000084
...
11
HEADLIGHT ASSY, RH SINGLE BEAM (Includes items 12 through 20) HUS-603000627
...
12
SCREW HUS-603000173
...
13
HEADLIGHT BEZEL RIGHT 93 HUS-603000373
...
14
TURN SIGNAL LENS ASSY HUS-603000380
...
15
MOUNTING BRKT HUS-603000381
...
16
HEADLIGHT RETAINER HUS-603000382
...
17
CONNECTOR HARNESS ASSY, HDLGHT HUS-603000625
...
18
BULB, HEADLIGHT HUS-603000628
...
19
LENS, HEADLIGHT HUS-603000629
...
20
NUT, #10-32 HEX HUS-603000084
