Husqvarna HUV 4210 GXP (2005-06) Utility Vehicle

Model: HUV 4210 GXP (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

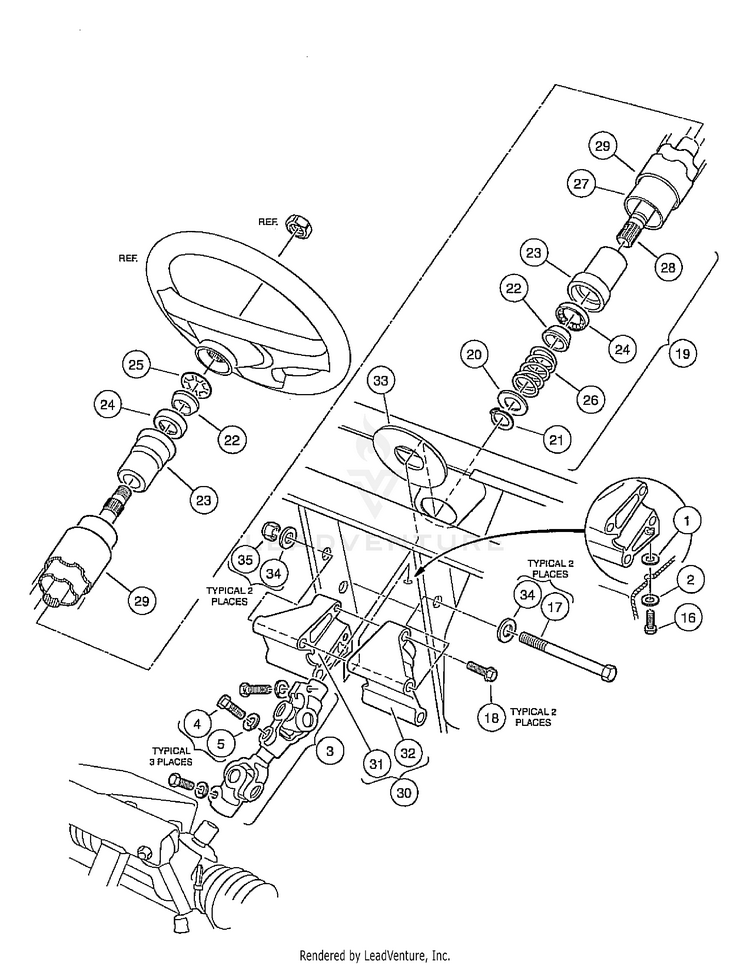

Steering Column

...
...
1
WASHER, 5/16 TYPE B FLAT HUS-603003045
...
2
WASHER, 5/16 FLAT HUS-603000127
...
3
INTERMEDIATE STEERING SHAFT (includes items 4 and 5) HUS-603003063
...
4
HEX HEAD BOLT, 8MM X 1.25 - 30 HUS-603000386
...
5
LOCKWASHER, 5/16 SPLIT HUS-603000072
...
6
STEERING COLUMN REBUILD KIT (includes items 7 through 15); not illustrated. HUS-603003073
...
7
DUST COVER HUS-603003053
...
8
RING HUS-603000148
...
9
WEDGE MOLDED HUS-603000212
...
10
SEAT, PLASTIC BEARING HUS-603000213
...
11
SEAL, BEARING HUS-603003071
...
12
SPACER, SHAFT HUS-603003072
...
13
BEARING ASSY STEERING SHAFT HUS-603000216
...
14
RING, RETAINING HUS-603000217
...
15
SPRING, STEERING SHAFT COMP HUS-603000218
...
16
SCREW HUS-603000220
...
17
SCREW, 3/8-16 X 7.00 HEX CAP HUS-603000281
...
18
SCREW, 5/16-18 THRD FORMING HUS-603003086
...
19
STEERING SHAFT ASSEMBLY (includes items 20 through 28) HUS-603003161
...
20
WASHER HUS-603000147
...
21
RING HUS-603000148
...
22
WEDGE MOLDED HUS-603000212
...
23
SEAT, PLASTIC BEARING HUS-603000213
...
24
BEARING ASSY STEERING SHAFT HUS-603000216
...
25
RING, RETAINING HUS-603000217
...
26
SPRING, STEERING SHAFT COMP HUS-603000218
...
27
COLUMN, LIMO ALUMINUM STEERING HUS-603003162
...
28
SHAFT STEERING COLUMN HUS-603000390
...
29
TUBE COVER STEERING COL-LIMO HUS-603003163
...
30
STEERING COLUMN MTG BRKT KIT (includes items 31 and 32) HUS-603003246
...
33
BOOT, STEERING COLUMN ROUND HUS-603000868
...
34
WASHER, 3/8 FLAT HUS-603000055
...
35
LOCKNUT, 3/8-16 HEX HUS-603000095
