Husqvarna HU800AWDH Walk Behind Mower

Model: HU800AWDH

Back To Assemblies

Save Part Not Listed?
product name

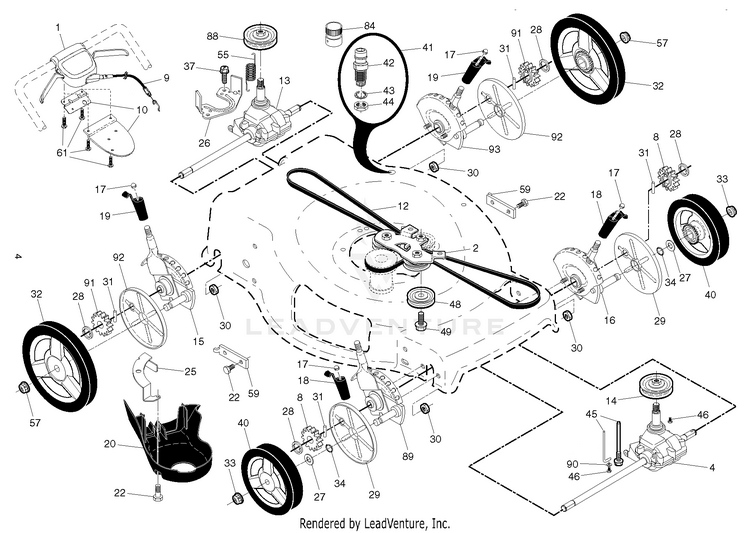

DRIVE

...
...
44
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
48
PULLEY.ASM.22+ AWD HUS-587973001
...
32
WHEEL.11.H3SP.AWD.LC.460.BB2 HUS-501067001
...
30
Hardware HUS-596041001
...
43
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
84
COUPLING.QUICK CONNECT HUS-532416405
...
93
ADJUSTER.ASM.HW.AWD.LR For 96145002100 HUS-587233201
...
28
E-RING 7/16 RE HUS-812000058
...
16
ADJUSTER.ASM.FG/AWD.LF/QP.BZIN For 96145002101, 96145002102, 96145002103, 96145002104, LH HUS-587429701
...
18
KNOB.ADJUSTER.LW.BLK HUS-532426188
...
37
SCREW HUS-532163409
...
46
SCREW.HI-LO. 5/16 X 1.00 HUS-584299401
...
90
GSPH For 96145002101, 96145002102 HUS-596134901
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
19
KNOB.ADJUSTER.REAR.RED HUS-532431893
...
1
CONTROL.AWD.DT.BS HUS-589818807
...
88
PULLEY AWD/RGD, SCREW-ON AWD/R For 96145002102, 96145002103, 96145002104 HUS-586963002
...
93
ADJUSTER.ASM.HW.AWD.LR For 96145002101, 96145002102, 96145002103, 96145002104 HUS-587233201
...
15
ADJUSTER.ASM.HW.RR.AWD RH HUS-587233202
...
8
PINIION.14.TOOTH.RGD HUS-532404835
...
25
BRACKET.DRIVE.COVER.RGD.BZP HUS-532426065
...
31
PAWL, DRIVE HUS-532404845
...
91
PINION.16.TEETH.HW.AWD.REAR HUS-587232401
...
14
PULLEY AWD/RGD, SCREW-ON AWD/R For 96145002100, 96145002101, 96145002102 HUS-586963002
...
45
BRACKET.AWD.FRONT.BELT.KEEPER For 96145002100, 96145002101, 96145002102 HUS-581241301
...
89
ADJUSTER.ASM.HW.AWD.LR For 96145002100 HUS-587233201
...
17
NUT.PUSH.156 HUS-583343001
...
16
ADJUSTER.ASM.FG/AWD.LF/QP.BZIN For 96145002100, LH HUS-587429701
...
89
ADJUSTER.ASM.FG/AWD.RF.QP.BZIN For 96145002101, 96145002102, 96145002103, 96145002104 HUS-587429702
...
55
SPRING.RETURN.AUTO. HUS-581351301
...
34
O-RING..070X.487.NEOPRENE HUS-532197480
...
13
TRANMISSION.ASM.22+AWD.REAR For 96145002100, 96145002101, 96145002102 HUS-581975506
...
4
TRANSMISSION.22+.AWD.FRT HUS-589599201
...
40
WHEEL.8".AWD.3SP.EXT.DR.GREY HUS-580365301
...
88
PULLEY For 96145002100, 96145002101 HUS-532194128
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
27
WASHER FLUT HUS-532067725
...
9
CABLE.DRIVE.RWD.WALK. For 96145002100, 96145002101, 96145002102, 96145002103 HUS-581952101
...
9
For 96145002104, included in drive control HUS-000000000
...
22
BOLT.5/16HEX.WHS.HD HUS-817000510
...
10
BRACKET DUAL TRIGGER CONTROL For 96145002103, 96145002104 HUS-587249302
...
13
TRANSMISSION.22+AWD.WALK.MOWER For 96145002103, 96145002104 HUS-581680801
...
12
BELT V3L 64.10 CLUTCHING COVER For 96145002104 HUS-580364610
...
2
BRACKET.ASM.AWD.BZP.BLACK HUS-586072802
...
49
SCREW HUS-581334501
...
12
BELT V3L 64.10 CLUTCHING COVER For 96145002100, 96145002101, 96145002102, 96145002103 HUS-580364610
...
41
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
26
BRACKET.TRAN.BELTKEEPER.22+RGD HUS-581152502
...
57
NUT.HEX.FLANGE.3/8-16.LOCKNUT For 96145002100, 96145002101 HUS-532409149
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
42
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
57
NUT.HEX.FLANGE.3/8-16.LOCKNUT For 96145002102, 96145002103, 96145002104 HUS-532409149
...
92
COVER.DUST.WHEEL.HW.AWD.REAR HUS-587251701
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
45
SCREW.HI-LO.5/16-14 X 4.10 For 96145002103, 96145002104 HUS-587438201
...
14
PULLEY AWD/RGD, SCREW-ON AWD/R For 96145002103, 96145002104 HUS-586963002
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK For 96145002100, 96145002101, 96145002102 HUS-532432790
