Husqvarna HU775AWD - 96143010702 (2015-01) Walk Behind Mower

Model: HU775AWD - 96143010702 (2015-01)

Save Part Not Listed?
product name

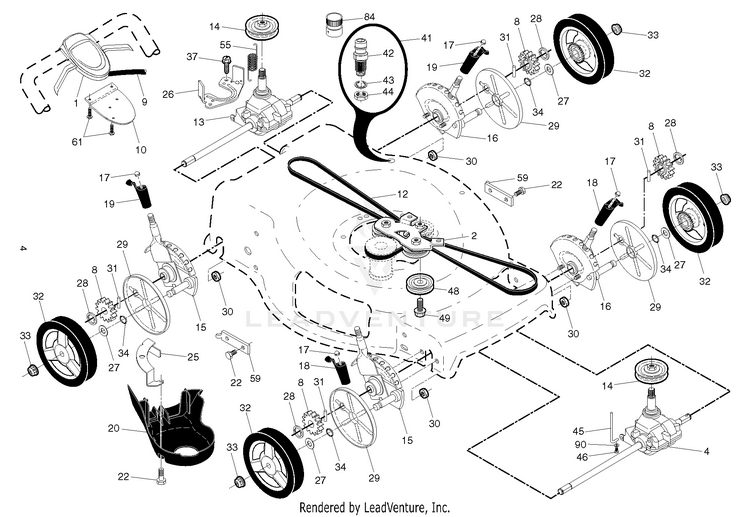

DRIVE

...
...
27
WASHER FLUT HUS-532067725
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
44
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
41
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
18
KNOB.ADJUSTER.LW.BLK HUS-532426188
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
16
KIT.ADJ.AWD.22+LT.F/R.BLK LH HUS-581758802
...
90
GSPH HUS-596134901
...
19
KNOB.ADJUSTER.REAR.RED HUS-532431893
...
42
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
84
COUPLING.QUICK CONNECT HUS-532416405
...
46
SCREW.HI-LO. 5/16 X 1.00 HUS-584299401
...
37
SCREW HUS-532163409
...
32
WHEEL.8".AWD.3SP.EXT.DR.GREY HUS-580365301
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
34
O-RING..070X.487.NEOPRENE HUS-532197480
...
45
BRACKET.AWD.FRONT.BELT.KEEPER HUS-581241301
...
48
PULLEY.ASM.22+ AWD HUS-587973001
...
26
BRACKET.TRAN.BELTKEEPER.22+RGD HUS-581152502
...
2
BRACKET.ASM.AWD.BZP.BLACK HUS-586072802
...
4
TRANSMISSION.22+.AWD.FRT HUS-589599201
...
8
PINIION.14.TOOTH.RGD HUS-532404835
...
13
TRANSMISSION.22+AWD.WALK.MOWER HUS-581680801
...
25
BRACKET.DRIVE.COVER.RGD.BZP HUS-532426065
...
9
CABLE.DRIVE.RWD.WALK. HUS-581952101
...
28
E-RING 7/16 RE HUS-812000058
...
55
SPRING.RETURN.AUTO. HUS-581351301
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
12
BELT V3L 64.10 CLUTCHING COVER HUS-580364610
...
30
Hardware HUS-596041001
...
15
KIT.ADJ.22+QP.RT F/R.BLK. RH HUS-581758801
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
17
NUT.PUSH.156 HUS-583343001
...
22
BOLT.5/16HEX.WHS.HD HUS-817000510
...
31
PAWL, DRIVE HUS-532404845
...
43
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
49
SCREW HUS-581334501
...
14
PULLEY AWD/RGD, SCREW-ON AWD/R HUS-586963002
...
1
CONTROL.DR.AW2.22+.BLK.GEN HUS-589818808

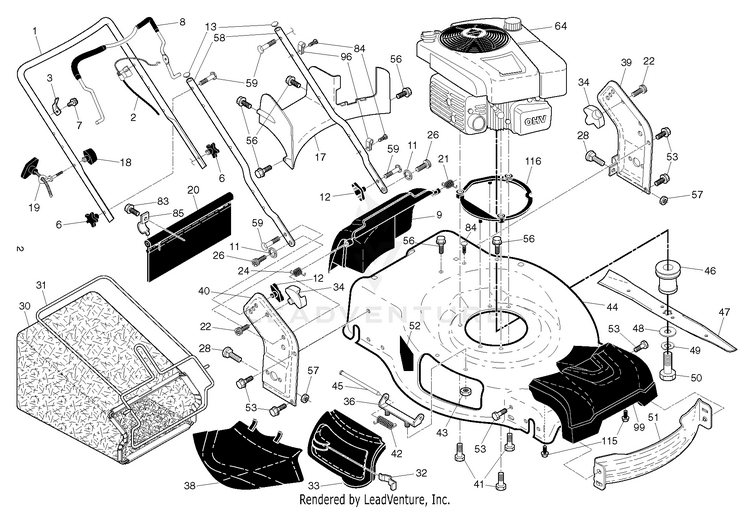

FRAME & ENGINE

...
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
41
SCREW HUS-532850999
...
83
SCREW HUS-817021008
...
57
GSPW Hardware HUS-596039201
...
44
KIT.HSG.22+AW.MC.WO.668.CE SYM HUS-581708362
...
24
SPRING.RH.GRAY RH HUS-532419948
...
116
SPACER.AWD.B&S HUS-581745601
...
46
ADAPTER.BLADE.25M.B&S.AWD HUS-581650901
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
2
CABLE.MZR.50.SNAP-IN HUS-532427497
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
33
DOOR.MULCH.22+.BLK HUS-594942002
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
45
ROD.HINGE.21 HUS-532175650
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
49
Washers HUS-596238701
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
32
LATCH.DOOR.ZINC HUS-532441192
...
8
BAIL.OVER.MOLD.ERGO.MZR.ORANGE HUS-580849102
...
96
CLIP.CABLE.BLK HUS-532197991
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
20
SKIRT.REAR.22PLUS.RGD.LW(2 2MC HUS-532444501
...
115
SCREW.SHOULDER.5/16X1.375 HUS-581330001
...
11
E-RING.12MM.SHAFT HUS-579482801
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 HUS-593270403
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 HUS-586212501
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
xx
BAG OF HARDWARE.22+ NOT SHOWN HUS-532423849
...
21
SPRING.LH.BLACK LH HUS-532419949
...
56
SCREW.HX.13X.750 HUS-817411312
...
64
B&S 111P02-0130-F4 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
42
SPRING.TORSION HUS-532193000
...
99
COVER.ASSEMBLY.FRONT.22+AWD HUS-585668701
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY RH HUS-585900803
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY LH HUS-585900703
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
47
BLADE.22PLUS HUS-532420463
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
43
Hardware HUS-596041001
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
1
HANDLE.UP.3POS.BS.AW2.GREY HUS-585854806
...
7
SCREW HUS-532178848
...
30
RB GBAG.B55110010.GENERIC.SERV HUS-580943401
...
48
WASHER,HARDEN HUS-532851074
...
50
BOLT.BLADE HUS-532179617
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
