product name

Husqvarna HU600L Walk Behind Mower

Model: HU600L

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
40
WHEEL.8IN.H3SPK.ALPHA. For 379132, 379133, 96143007601, 379131, 379141, 96143006800, 96143007600 HUS-532442822
...
44
BELT.DRIVE.RGD.PLUS HUS-532421527
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
48
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
32
KIT.WHEEL.442789X460.8" For 379140, 379130 HUS-532442856
...
63
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY For 379132, 379133, 96143007601, 379131, 379141, 96143006800, 96143007600 HUS-581685101
...
16
ROD.CONNECTING.RGD.22+.HW.BLAC HUS-532430030
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
15
WASHER.FLAT.1/2 HUS-532088348
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
35
AXLE.REAR.RGD HUS-532430598
...
23
ADJUSTER.ARM.ASM.AX.RT.SP.ZC LH HUS-532437870
...
34
O-RING..070X.487.NEOPRENE HUS-532197480
...
36
KIT.AXLE.FT.ASM.22+RGD. For 379133, 96143007601, 379131, 379141, 96143006800, 96143007600, 379140, 379130, HUS-532441541
...
50
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
51
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
1
RP CONTROL AW2 22+RGD KH GY/BL HUS-532430972
...
47
WASHER FLUT HUS-532067725
...
28
E-RING 7/16 RE HUS-812000058
...
13
TRANSMISSION.22+AWD.WALK.MOWER HUS-581680801
...
31
PAWL, DRIVE HUS-532404845
...
40
WHEEL.8IN.H3SPK.ALPHA. For 379140, 379130 HUS-532442822
...
49
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
37
SCREW HUS-532163409
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
24
BRACKET.WHL.ADJ.9.POS.W/PAD HUS-532433511
...
18
KIT.SELECTOR.ASM.437869 HUS-532438536
...
17
NUT.LOCK.5/16-18 HUS-532751153
...
9
CABLE.CONTROL.22RGD.GEN2 HUS-532431650
...
36
KIT.AXLE.FT.ASM.22+RGD. For 379132 HUS-532441541
...
19
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996
...
30
BOLT.5/16HEX.WHS.HD HUS-817000510
...
12
NUT.HEX.1/2-20 HUS-873940800
...
25
BRACKET.DRIVE.COVER.RGD.BZP HUS-532426065
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
14
PULLEY HUS-532194128
...
62
CLIP.CABLE.BLK HUS-532197991
...
55
SPRING HUS-532406558
...
11
SCREW HUS-817060408
...
58
SCREW.12-14X1.500 HUS-532435241
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
84
COUPLING.QUICK CONNECT HUS-532416405
...
21
SCREW.PLASTIC.ANCHOR.5/16 HUS-532435242

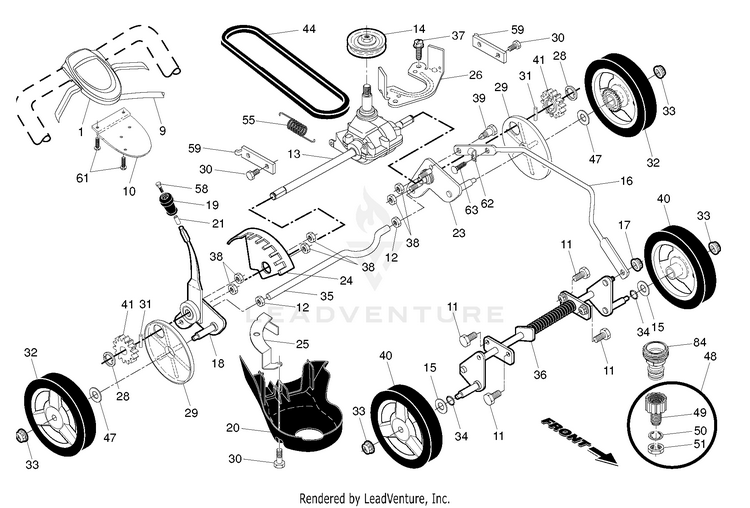

Schematic Image Zoomed
