Husqvarna HU550FH - 96143009603 (2014-09) Walk Behind Mower

Model: HU550FH - 96143009603 (2014-09)

Save Part Not Listed?
product name

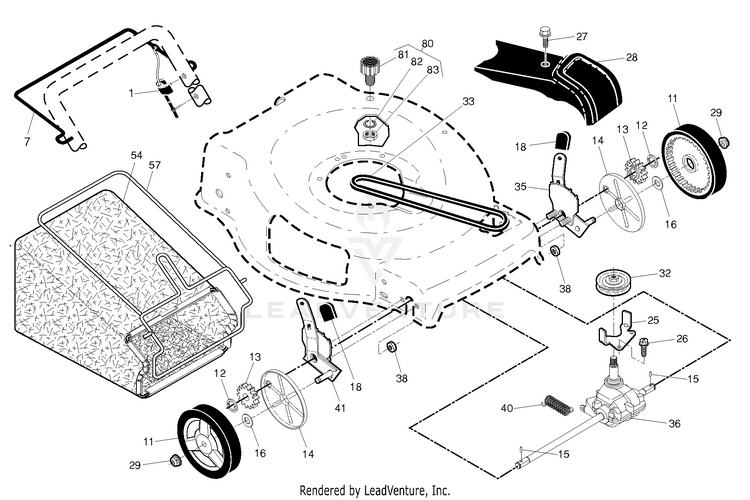

DRIVE

...
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
54
GBAG.A3610010.BLK.GENERIC HUS-580947302
...
35
ADJUSTER.ASM.22+FGD.LF /AWD LT FRONT, LEFT HUS-581497907
...
33
BELT.DRIVE.FGD. HUS-532196853
...
7
BAIL.CONT.DR.S/S.ROUND.BLACK HUS-532198453
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
18
SELECTOR KNOB HUS-532701037
...
12
E-RING 7/16 RE HUS-812000058
...
80
KIT.WASH-OUT.PORT HUS-532421114
...
36
TRANSMISSION.22+.FWGD.SS/VS HUS-589600601
...
26
SCREW HUS-532163409
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
82
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
81
KIT.WASH-OUT.PORT HUS-532421114
...
28
COVER.DR.22.MB LABEL HUSQ E/F Includes Mounting Screw & Pushnut HUS-586691801
...
1
CABLE.DRIV.DUAL.LEVER.BAIL.FGD HUS-532420562
...
16
WASHER FLUT HUS-532067725
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
41
ADJUSTER.ASM.22+FGD.RF /AWD RT FRONT, RIGHT HUS-581497908
...
83
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
38
Hardware HUS-596041001
...
13
PINION.14.TEETH.FGD HUS-532403849
...
15
PAWL, DRIVE HUS-532404845
...
57
FRAME.GBAG.22+.BLK HUS-585054702
...
40
SPRING HUS-532406558
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401

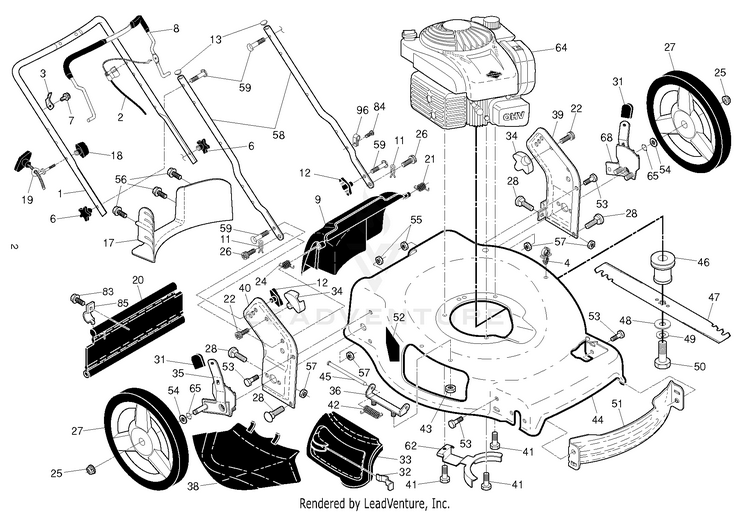

FRAME

...
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
31
SELECTOR KNOB HUS-532701037
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
8
BAIL.ARM.ASSY:STRAIGHT OM HUS-587478302
...
43
NUT.HEX.FLANGE.1/4 HUS-532191730
...
21
SPRING.LH.BLACK HUS-532419949
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
83
SCREW HUS-817021008
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
xx
BAG OF HARDWARE.22+ NOT SHOWN HUS-532423849
...
42
SPRING.TORSION HUS-532193000
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
47
BLADE.22PLUS HUS-532420463
...
48
WASHER,HARDEN HUS-532851074
...
54
WASHER.FLAT.1/2 HUS-532088348
...
55
NUT.HEX.FLANGE.1/4 HUS-532191730
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
24
SPRING.RH.GRAY HUS-532419948
...
45
ROD.HINGE.21 HUS-532175650
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
56
SCREW.HX.13X.750 HUS-817411312
...
2
CABLE.MZR.FGD.PLUS HUS-532420939
...
68
ADJUSTER.ASM.9POS.HW.R/L REAR, LEFT HUS-532431141
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
49
Washers HUS-596238701
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 HUS-593270403
...
9
DOOR.REAR.22PLUS.MB.FGD.GRY HUS-532435917
...
96
CLIP.CABLE.BLK HUS-532197991
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
20
SKIRT.REAR.22PLUS.RGD/FGD.NEW HUS-532429157
...
7
SCREW HUS-532178848
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY HUS-585900803
...
35
ADJUSTER.ASM.9POS.HW.R/R REAR, RIGHT HUS-532431140
...
44
HOUSING.22+.FWD.MC.ZWO.ORANGE. HUS-581690801
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY HUS-585900703
...
4
PUSH CLIP HUS-532145006
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
57
GSPW Hardware HUS-596039201
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
46
ADAPTOR.BLADE.7/8".STAR HUS-581352401
...
64
B&S 9P702-0162-F1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
33
DOOR.MULCH.22+.BLK HUS-594942002
...
32
LATCH.DOOR.ZINC HUS-532441192
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 HUS-586212501
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
1
HANDLE.UP.DST.SS/VS.FG/RG.NHGY HUS-585864806
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
17
BAFFLE.22PLUS.FGD.REAR. HUS-532427307
