Husqvarna HU 625 WT (96173000100) (2009-11) Trimmer

Model: HU 625 WT (96173000100) (2009-11)

Save
 Part Not Listed?Part Not Listed?
product name

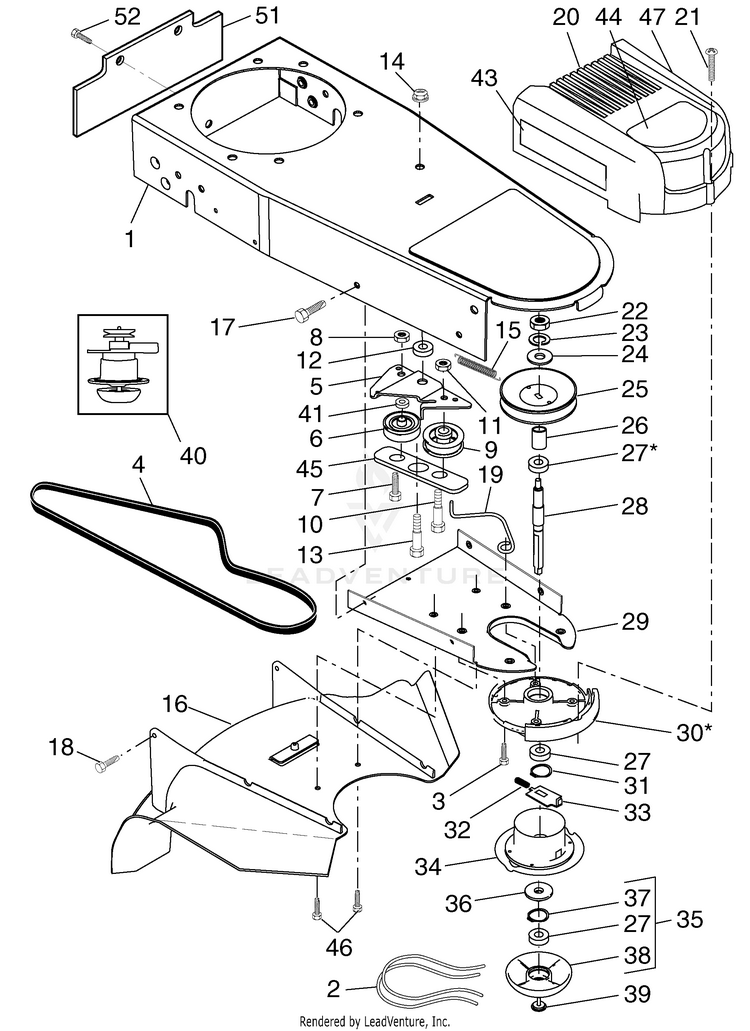

Cutting Equipment

...
...
1
KIT.CHASSIS.ASM.668 HUS-581708384
...
2
LINE.BUND.18PC HUS-532182219
...
3
BOLT.HEX.HDWSH.5/16-18X1.00 HUS-532173715
...
4
BELT-V.STRING TRIMMER. HUS-532185476
...
5
BRACKET.IDLER.STRG.TRIMMER.14 HUS-586506002
...
6
PULLEY.V-GROOVE.IDLER HUS-532166042
...
7
BOLT HUS-874760620
...
8
Nuts HUS-596322601
...
9
IDLER PULLEY HUS-532166043
...
10
SHOULDER BOLT HUS-532160829
...
11
NUT.CENTERLOCK.5/16- HUS-873930500
...
12
SPACER.IDLER.BRACKET HUS-532173717
...
13
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
14
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
15
SPRING.RETURN.WHEELED.TRIMMER HUS-532173811
...
16
DEFLECTOR, BOTTOM HUS-532180268
...
17
SCREW 14-20 X 5/8 HUS-817060410
...
18
SCREW HUS-532178848
...
19
KEEPER.BELT.STRING.TRIMMER HUS-532199574
...
20
COVER, CHASSIS, TOP HUS-532178390
...
21
SCREW.SLOT.TORX. HUS-532149746
...
22
NUT HUS-873610600
...
23
Washers HUS-596238701
...
24
GSPH HUS-596134901
...
25
PULLEY.SPINDLE.WHEELED.TRIMMER HUS-532180340
...
26
SPACER, PULLEY HUS-532172551
...
27
BEARING HUS-532110485
...
28
JACKSHAFT.WHEELED.TRIMMER HUS-532172520
...
29
CHASSIS.COVER.BOTTOM.BLACK HUS-532186752
...
30
SPINDLE HOUSING ASSEMBLY Includes Upper Bearing, Key No. 27 HUS-532174543
...
31
RING, RETAINING, EXTERNAL, HUS-532174581
...
32
SPRING.1.5".COMPRESSION HUS-532173973
...
33
PLATE.LOCKING.WHEELED.TRIMMER HUS-532172519
...
34
STRING CARRIER ASM, HW TRIMMER HUS-594935003
...
35
MOW BALL ASSEMBLY Includes Key Numbers 27, 37 and 38 HUS-532182217
...
36
COVER, BEARING HUS-532172516
...
37
RING, RETAINING, INTERNAL, HUS-532174580
...
38
MOW BALL HUS-532180337
...
39
BOLT, MOW BALL HUS-532180334
...
40
SPINDLE ASSY HW TRIMMER ZINC Includes Key No. 22-28 and 30-39 HUS-596878501
...
41
SPACER (2 2MC) HUS-532174029
...
43
DECAL, INSTRUCTION HUS-532174042
...
44
DECAL.HSG.TRIMMER.WHEELED.HUSQ HUS-532428257
...
45
BRACKET.BELT.KEEPER.BLACK HUS-532186753
...
46
SCREW HUS-817060408
...
47
DECAL, INSTRUCTION HUS-532174036
...
51
SKIRT.REAR.WHEELED.TRIMME(3 2) HUS-532189006
...
52
SCREW HUS-532178848

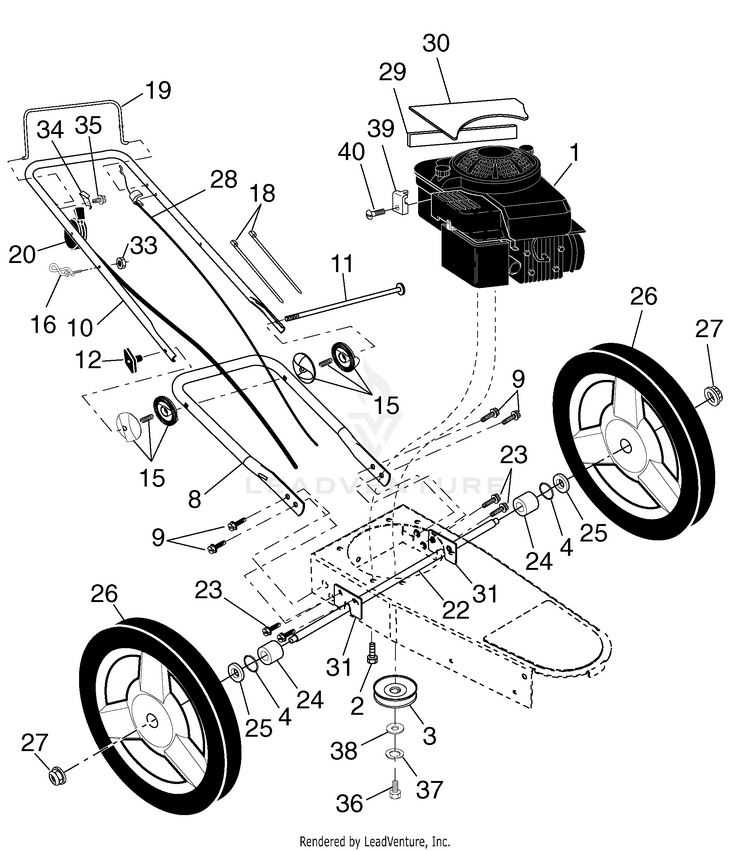

Frame

...
...
2
BOLT 3/8-16X1-1/8 HUS-532150406
...
3
KIT.PULLEY.WEED.TRIMMER HUS-532184130
...
4
O-RING..070X.487.NEOPRENE HUS-532197480
...
8
HANDLE.LOWER.STRG.TIMMER.BLACK HUS-532186754
...
9
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
10
HANDLE.UPPER.STRG.TIMMER.BLACK HUS-532186755
...
11
BOLT.HANDLE.WHEELED.TRIMMER HUS-532170980
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
15
ADJSTR.ASSEM.HANDLE.WHLD.TRIMM HUS-532179751
...
16
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
18
WIRE TIE HUS-532007192
...
19
BAIL.SPINDLE.ENGAGE.BLACK HUS-532176983
...
20
CONTROL.THROTTLE.TRIMMER HUS-586861201
...
22
AXLE HUS-592930001
...
23
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
24
SPACER.AXLE.STRING.TRIMMER HUS-532169823
...
25
WASHER.FLAT.1/2 HUS-532088348
...
26
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
28
CONTROL.DRIVE.TRIMMER.WHEELED HUS-532181699
...
29
DECAL, WARNING HUS-532406678
...
30
DECAL, WARNING HUS-532178365
...
31
BRACKET, AXLE HUS-532426297
...
33
NUT HEXAGON 1/4-20 ST ZPB HUS-595086601
...
34
BRACKET.UPSTOP.RT HUS-532430034
...
35
SCREW HUS-532750634
...
36
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
37
Washers HUS-596238701
...
38
WASHER,HARDEN HUS-532851074
...
39
Clamp, Cable HUS-532011190
...
40
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
xx
Manual, Operator's, English HUS-532177817
...
xx
Manual, Operator's, French HUS-532180102
...
...
...
