product name

Husqvarna HHT25 (2008-06) Hedge Trimmer

Model: HHT25 (2008-06)

Back To Assemblies

Save Part Not Listed?

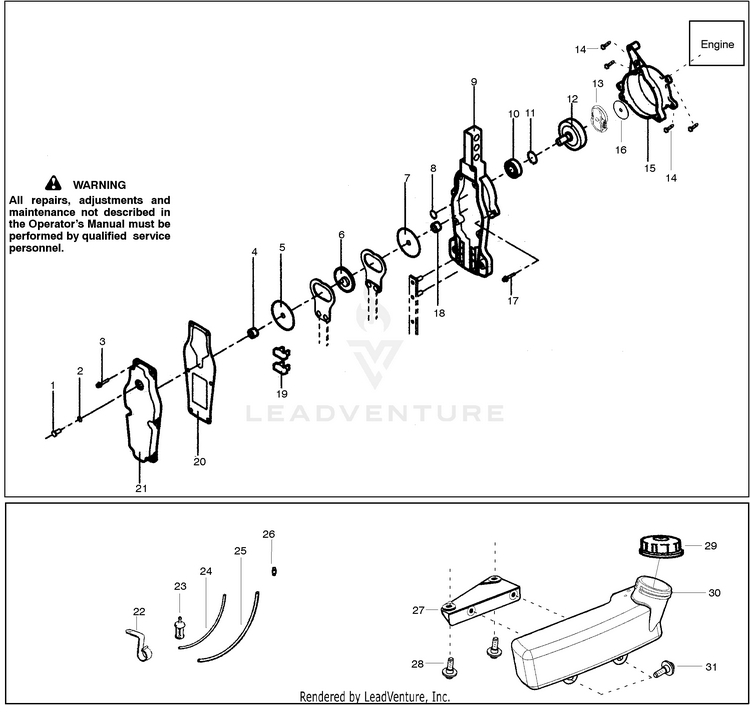

product name

Fuel Tank

...
...
1
Plug-Grease HUS-530016423
...
2
O-ring HUS-214B0700
...
3
Socket Screw Flange HUS-545145422
...
4
Bushing HUS-545145440
...
5
Fixing Plate HUS-11050-176
...
6
Gear HUS-545145441
...
7
Fixing Plate HUS-11050-176
...
8
C-Snapring for Shaft HUS-545145431
...
9
Cam Case HUS-51068-108
...
10
Bearing HUS-545145432
...
11
C-Snapring for Hole HUS-545145430
...
12
Clutch Drum C.P. HUS-11014-222
...
13
CLUTCH ASSY HUS-530057740
...
14
Screw HUS-530015886
...
15
Engine Base HUS-51070-131
...
16
Washer-Clutch HUS-530015611
...
17
Socket Screw Flange HUS-545145423
...
18
Bushing HUS-545145440
...
19
Felt Packing HUS-545145433
...
20
Packing HUS-545145434
...
21
Cam Case Cover HUS-51069-105
...
22
Clip-Wire HUS-530016438
...
23
Assy-Fuel Pickup HUS-530095646
...
24
Kit-Fuel Line (small) HUS-530069247
...
25
Kit-Fuel Line(large) HUS-530069216
...
26
Fitting-Fuel Line HUS-530023877
...
27
Bracket-Tank HUS-530057738
...
28
Screw-Retainer HUS-530016431
...
29
Assy-Fuel Cap HUS-530057973
...
30
Assy-Fuel Tank (Incl. 23-26, 29) HUS-545104302
...
31
Screw-Retainer HUS-530016379
Schematic Image Zoomed
