Husqvarna HHT25 (2008-06) Hedge Trimmer

Model: HHT25 (2008-06)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Starter

...
...
1
Screw HUS-530016386
...
2
Assy-Shroud/H'shield HUS-530058799
...
3
O-Ring-C'case (kit) HUS-530071486
...
4
CRANKSHAFT ASSY HUS-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6,22) HUS-530071681
...
6
Ring-Retainer-C'shaft HUS-530015941
...
7
Assy-Flywheel HUS-530054115
...
8
Washer-Flat HUS-530015828
...
9
Spacer-Flywheel HUS-530055729
...
10
Screw HUS-530015496
...
11
Plate-Baffle HUS-530055681
...
12
Screw HUS-530016392
...
13
Kit-Starter Pulley (Incl.# 12) HUS-530069353
...
14
Assy-Fan Housing HUS-530058801
...
15
Handle-Starter HUS-530027569
...
16
Kit-Rope HUS-530069232
...
17
Grommet-Ignition Module HUS-530019182
...
18
Screw-(f/hsg to shrd) HUS-530016386
...
19
STARTER SPRING HUS-545008010
...
20
Screw HUS-530016357
...
21
Ignition Module HUS-530054137
...
22
Assy-Crankcase (Incl. 23-25) HUS-530012510
...
23
Bearing-Outer HUS-530055728
...
24
Seal-Crankcase HUS-530019264
...
25
BEARING BALL 6001 HUS-738210101
...
26
Screw HUS-530015934
...
27
Seal-Cylinder (kit) HUS-530071486
...
28
CONNECTING ROD ASSY HUS-530049817
...
29
Kit-Piston (Incl. 30 & 31) HUS-530071476
...
30
Retainer-Piston Pin HUS-530015162
...
31
Ring-Piston HUS-530012472
...
32
Gasket-Carb. Adapt.(kit) HUS-530071486
...
33
Adapter-Carburetor HUS-530057634
...
34
Screw HUS-530016309
...
35
Kit-Choke Lever HUS-530071718
...
36
Air Box HUS-530055680
...
37
Screw HUS-530016429
...
38
Air Filter Foam HUS-530047932
...
39
Air Filter Cover HUS-530055679
...
40
Screw HUS-530015957
...
41
Washer HUS-530015123
...
42
Kit-Carburetor Ass'y. (C1U-W13A) HUS-530071633
...
43
Gasket-Carburetor(kit) HUS-530071486
...
44
Spark Plug(RCJ-6Y) HUS-952030249
...
45
Cylinder HUS-530012553
...
46
Screw HUS-530015953
...
47
Gasket-Muffler (kit) HUS-530071486
...
48
Kit-Muffler (Incl. # 47,49.50,51) HUS-530071682
...
49
Bolt-Muffler HUS-530016338
...
50
Kit-Spark Arrestor HUS-530071544
...
51
Screw HUS-530015241
...
52
Assy-Leadwire HUS-530057728
...
53
Kit-Gasket (Incl. #3,27,32,43,47) HUS-530071486
...
53
Operator Manual Not Shown HUS-545186733
...
53
Decal-Start Inst. Not Shown HUS-530057594

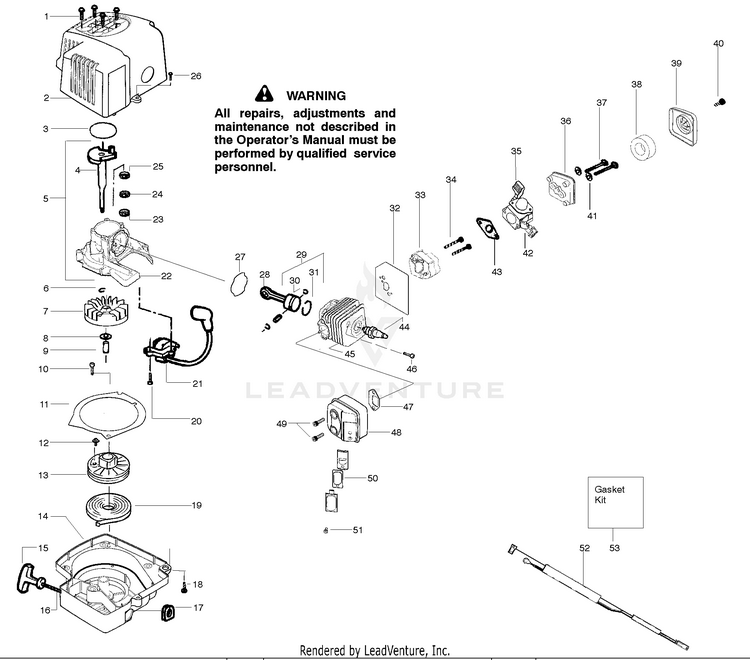

Schematic Image Zoomed
