Husqvarna HHT25 (2008-06) Hedge Trimmer

Model: HHT25 (2008-06)

Back To Assemblies

Save Part Not Listed?

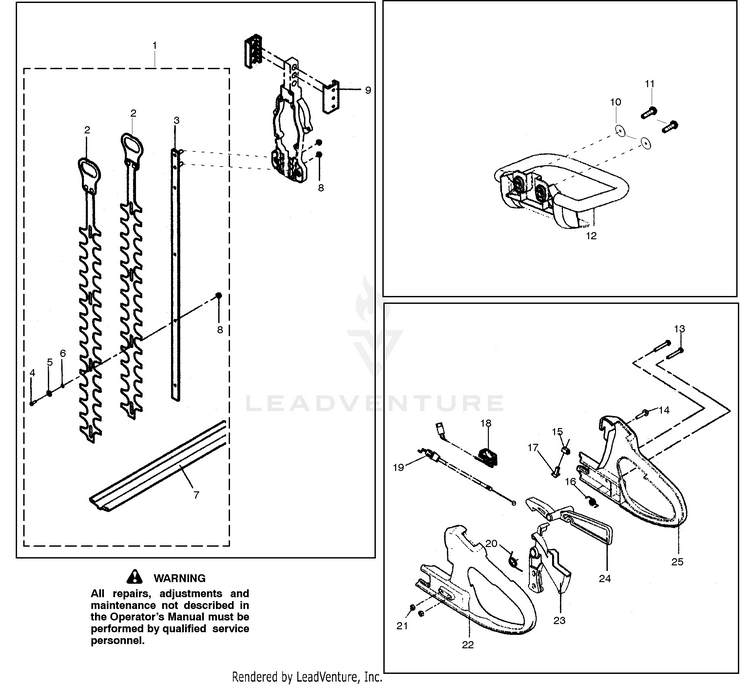

product name

Cutting Equipment

...
...
1
Kit-Assy-Blade (Incl. 2,3,4,5,6,7,8,& #6 on page 2) HUS-530071809
...
2
Cutter B HUS-91054-118
...
3
Cutter guide HUS-11051-133
...
4
Step Bolt HUS-31029-101
...
5
Conical Spring Washer HUS-545145435
...
6
Cutter Washer HUS-545145436
...
7
Sleeve-Blade HUS-530057997
...
8
U-Hexagon Nut Flange HUS-545145429
...
9
Absorber HUS-36006-128
...
10
Washer HUS-530016404
...
11
Screw HUS-530015769
...
12
Handle-Front HUS-530057731
...
13
Socket Screw HUS-545145421
...
14
Tapping Screw HUS-545145424
...
15
Guide HUS-51104-147
...
16
Spring HUS-545145438
...
17
Half Gas Lever HUS-36092-110
...
18
Stop Switch Assy. HUS-545145439
...
19
Throttle Wire HUS-91001-324
...
20
Spring HUS-545145437
...
21
U-Hexagon Nut HUS-545145428
...
22
Handle-Rear (left) HUS-51106-137
...
23
Lever HUS-11095-167
...
24
Lever HUS-11095-166
...
25
Handle -Rear (right) HUS-51106-138
