Husqvarna HDRT600B (1995) Tiller

Model: HDRT600B (1995)

Back To Assemblies

Save Part Not Listed?
product name

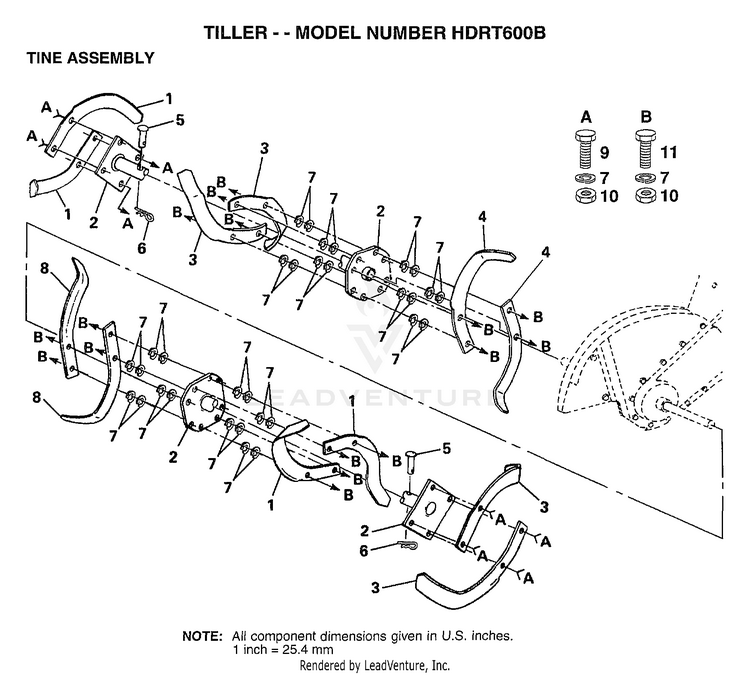

TILLER TINE ASSEMBLY

...
...
1
SUB= 101194M HUS-6556J
...
2
HUB ASSY CRT HUS-674A302
...
3
SUB= 101193M HUS-6557J
...
4
TINE.LH.CRT HUS-101194M
...
5
RIVET.PAN HD.1.75 HUS-4929H
...
6
RETAINER.SPRING HUS-3146R
...
7
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
8
TINE RH CRT HUS-101193M
...
9
BOLT HUS-74610616
...
10
SUB= 7810H HUS-73610600
...
11
BOLT.3/8-24X1-1/2 HUS-74610624
