Husqvarna HDRT600A (1995) Tiller

Model: HDRT600A (1995)

Back To Assemblies

Save Part Not Listed?
product name

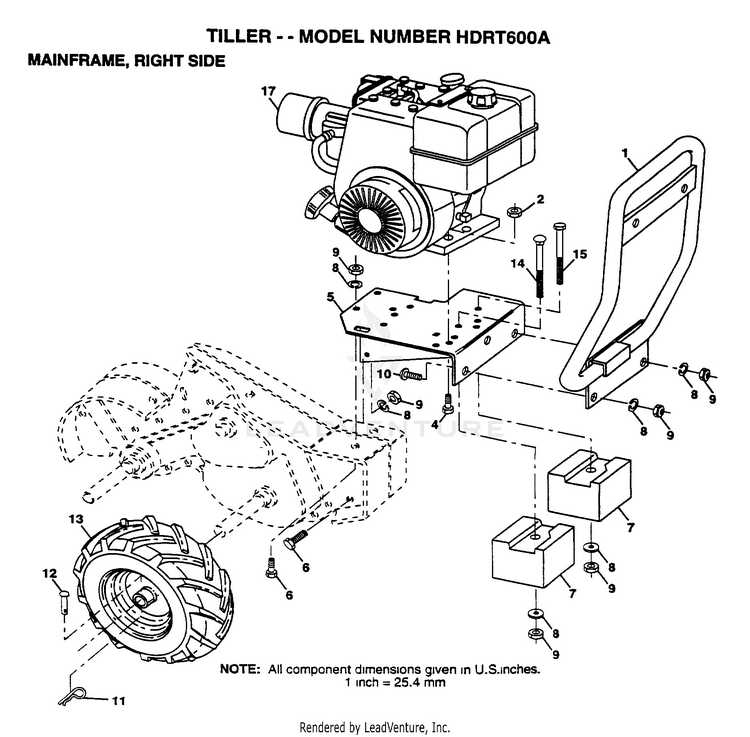

MAINFRAME, RIGHT

...
...
1
BUMPER.ASM HUS-138402
...
2
NUT HUS-73510500
...
4
BOLT HUS-74760512
...
5
"ASM. ENGINE, BASE" HUS-138669
...
6
BOLT HUS-74760616
...
7
COUNTERWEIGHT CRT HUS-8450J
...
8
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
9
NUT.HEX.3/8-16UNC HUS-73220600
...
10
SUB= 72110608 HUS-72140608
...
11
SPRING.RETAINER HUS-4921H
...
12
RIVET.PAN HD.1.75 HUS-4929H
...
13
TIRE TI HUS-5015J
...
xx
RIM.16X4X8.WHT HUS-138417
...
xx
SUB= 65139 HUS-795R
...
14
BOLT CRT HUS-72470636
...
15
BOLT.3/8-16X4.5 HUS-74760672
Schematic Image Zoomed
