product name

Husqvarna HDR550G (1999 & Before) Tiller

Model: HDR550G (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

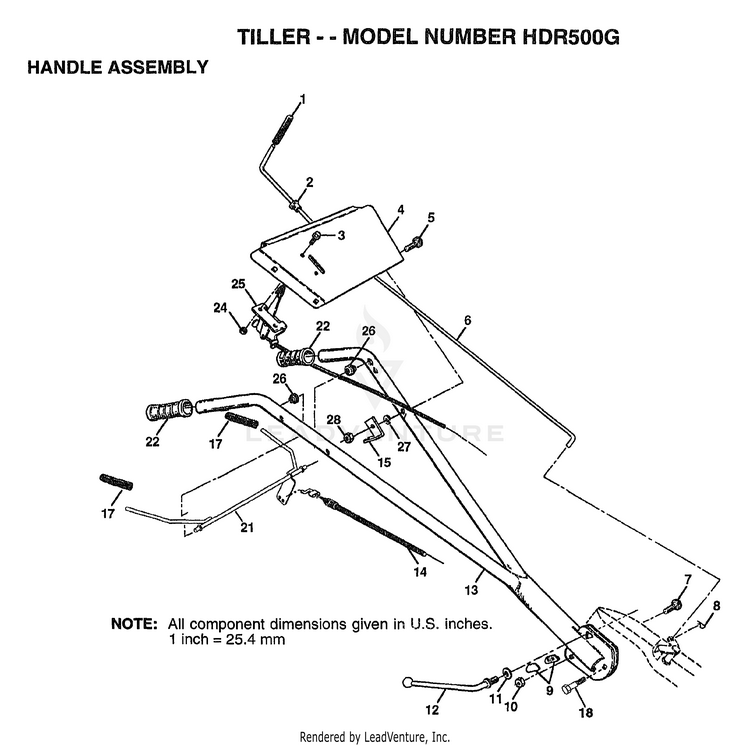

HANDLE ASSEMBLY

...
...
1
GRIP TI HUS-8389J
...
2
BUSHING HUS-121248X
...
3
SCREW.PNHD.10-24 HUS-71191008
...
4
"BRKT,HDLE" HUS-126949X428
...
5
BOLT CARRIAGE CRT HUS-72110514
...
6
ROD SHIFT CRT HUS-108281X
...
7
BOLT D HUS-72110608
...
9
LOCK CRT HUS-109229X
...
10
LOCKNUT HUS-73930600
...
11
WASHER CRT HUS-19131611
...
12
LEVER LOCK CRT HUS-109228X
...
13
HANDLE HUS-150217
...
14
"CABLE, CLUTCH" HUS-159232
...
15
BRACKET.CLUTCH.CA HUS-145821
...
17
GRIP BAR CRT HUS-102604X
...
18
BOLT PIVOT HUS-150696
...
21
BAR CONTROL HUS-159227
...
22
"GRIP,HANDLE" HUS-150744
...
24
NUT HUS-73731000
...
25
"CONT,THROTTLE" HUS-127012X
...
26
GROMMET.HANDLE.V- HUS-146480
...
27
LOCKWASHER HUS-10040500
...
28
NUT HUS-73800500
