Husqvarna HDR500M (2004) Tiller

Model: HDR500M (2004)

Back To Assemblies

Save Part Not Listed?
product name

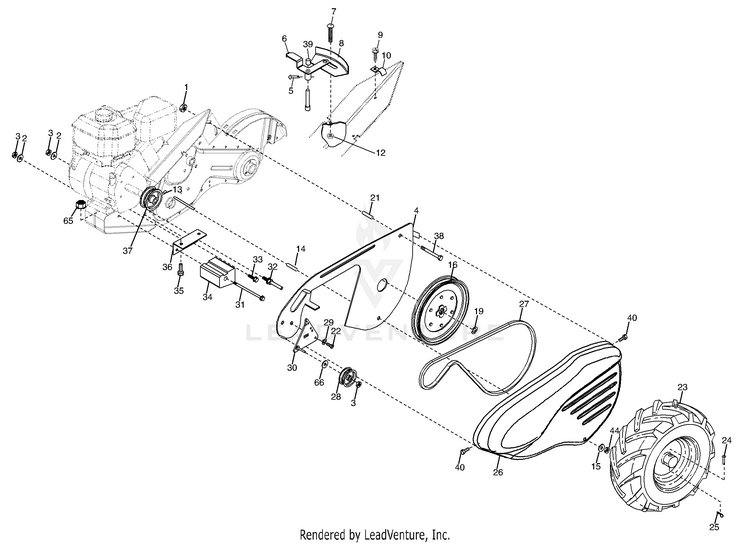

Mainframe, Left Side

...
...
1
Nut, Keps 5/16-18 HUS-73510500
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
Nut, Hex 3/8-16 HUS-73220600
...
4
Shield, Inner, Belt Guard HUS-170127
...
5
Pin Spirol Flared HUS-164329
...
6
Lever, Shift HUS-110111X
...
7
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 HUS-72110404
...
8
Plate, Shift Indicator HUS-8700J
...
9
Screw, Hex, Washer Head, Slotted #10-24 x 1/2 HUS-86777
...
10
Clip HUS-9484R
...
12
Nut Keps 1/4-20 HUS-73510400
...
13
Screw, Set, Hex 5/16-18 x 3/8 HUS-23230506
...
14
Spacer, Split 0.327 x 0.42 x 1.220 HUS-156117
...
15
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
16
Sheave, Transmission HUS-145102
...
19
Ring, Retainer HUS-12000028
...
21
Spacer, Split 0.327 x 0.42 x 2.09 HUS-110652X
...
22
Bolt Hex 5/16-24 x 1/2 HUS-74770508
...
23
Tire HUS-102190X
...
23
Rim HUS-183122X624
...
23
Tire Valve HUS-795R
...
24
Rivet, Drilled HUS-126875X
...
25
Clip, Hairpin HUS-4497H
...
26
Guard, Belt HUS-165501X428
...
27
Belt, V HUS-132801
...
28
Pulley, Idler HUS-104679X
...
29
Ring, Klip HUS-12000032
...
30
Bracket, Idler HUS-159229
...
31
Bolt, Hex 5/16-16 x 12 HUS-102384X
...
32
Shaft, Idler Arm HUS-102141X
...
33
Bolt, Hex 3/8-16 x 1 HUS-74760616
...
34
Counterweight, L. H. HUS-102383X
...
35
Bolt, Hex 5/16-18 x 1-1/2 HUS-74760524
...
36
Bracket, Reinforcement, L. H. HUS-102331X
...
37
Sheave, Engine HUS-130812
...
38
Bolt, Hex 5/16-18 x 2-3/4 HUS-74760544
...
39
Cap, Plunger HUS-140062
...
40
Screw, Hex Wsh Slt #10-24 x .50 HUS-170488
...
44
Nut, Lock 5/16-18 HUS-73800500
...
65
Nut, Lock Hex Flange HUS-73970500
...
66
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
