Husqvarna HDR500J (2000) Tiller

Model: HDR500J (2000)

Back To Assemblies

Save Part Not Listed?
product name

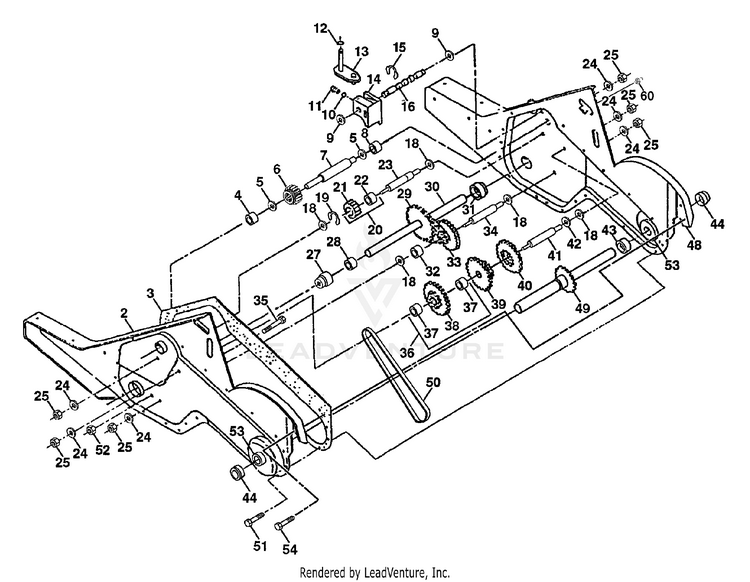

Transmission

...
...
1
Transmission Assembly (Includes Key Nos. 2-52) HUS-170337
...
2
Gearcase, L.H. w/Bearing (Includes Key No. 4) HUS-165729
...
3
Gasket, Gearcase HUS-161963
...
4
Bearing, Needle HUS-5020J
...
5
Washer, Thrust 5/8 x 1.10 x 1/32 HUS-1370H
...
6
Pinion, Input HUS-137335
...
7
Shaft, Input HUS-145101
...
8
Bearing, Needle HUS-4895H
...
9
Washer, Seal HUS-154467
...
10
Ball, Steel HUS-7392M
...
11
Spring, Shift, Fork HUS-100371K
...
12
O-Ring HUS-106160X
...
13
Arm,. Shift HUS-142145
...
14
Fork, Shift HUS-8353J
...
15
Ring, Klip HUS-12000039
...
16
Shaft, Shift HUS-154466
...
18
Washer HUS-4358J
...
19
Ring, Klip HUS-12000040
...
20
Gear, Assembly, Reverse Idler (Includes Key Nos. 21 and 22) HUS-102114X
...
21
Gear, Reverse Idler HUS-102115X
...
22
Bearing, Needle HUS-6803J
...
23
Shaft, Reverse Idler HUS-102111X
...
24
Washer, Lock 7/16 HUS-10040700
...
25
Nut, Hex 7/16-20 HUS-73610700
...
27
Bearing, Shaft, Ground Drive L.H. HUS-143009
...
28
Spacer 0.765 x 1.125 x 1.23 HUS-106390X
...
29
Chain #35-50 Pitch HUS-102134X
...
30
Ground Shaft Assembly HUS-150737
...
31
Bearing, Shaft, Ground Drive R.H. HUS-143008
...
32
Spacer 0.70 x 1.00 x 1.150 HUS-106388X
...
33
Sprocket and Gear Assembly HUS-102121X
...
34
Shaft, Reduction (2nd) HUS-102112X
...
35
Screw, Whiz, Lock 5/16-18 x 3-1/2 HUS-102101X
...
36
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) HUS-154355
...
37
Bearing, Needle HUS-4422J
...
38
Sprocket, Tine HUS-154356
...
39
Gear, Cluster, Red 1st & 2nd HUS-105345X
...
40
Gear, Reverse HUS-105346X
...
41
Shaft, Reduction (1st) HUS-8358J
...
42
Washer, Thrust HUS-4220R
...
43
Spacer 1.01 x 1.75 x 0.760 HUS-106146X
...
44
Seal Asm. Oil HUS-155236
...
48
Gearcase, R.H. w/Bearing (Includes Key No. 8) HUS-170338
...
49
Shaft, Tine HUS-132688
...
50
Chain, Roller #50-50 Pitch HUS-106147X
...
51
Screw 1/4-20 x 1/2 HUS-17720408
...
52
Nut, Hex 5/16-18 HUS-73220500
...
53
Kit, Bearing, Tine Shaft HUS-165140
...
54
Screw 1/4-20 x 3/4 HUS-17720412
...
60
Fitting Grease HUS-6855M
...
60
Grease, Plastilube #1 HUS-6066J
