Husqvarna HDR350B (1995) Tiller

Model: HDR350B (1995)

Back To Assemblies

Save Part Not Listed?
product name

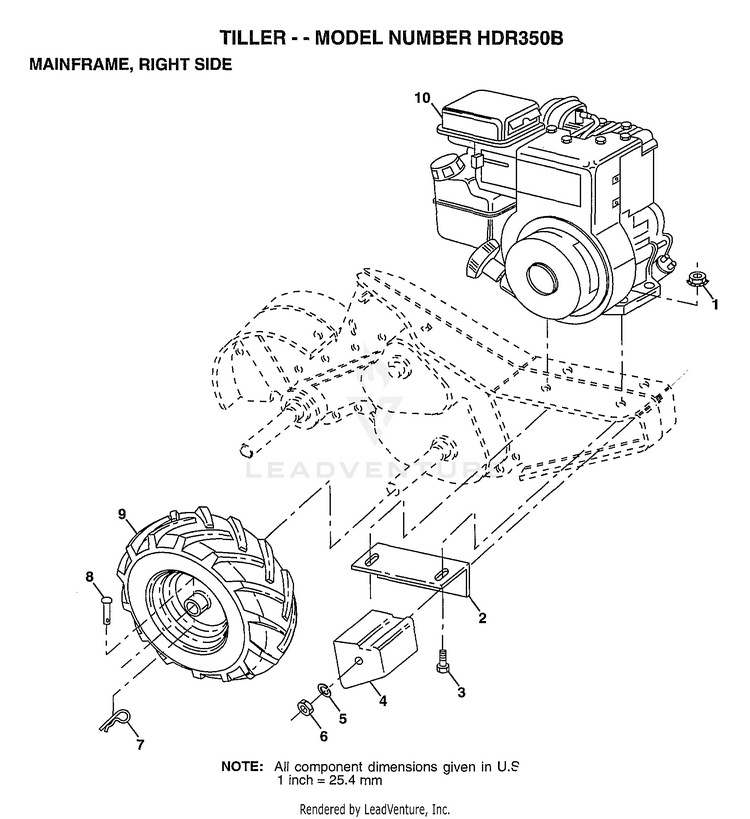

TILLER MAINFRAME, RIGHT SIDE

...
...
1
NUT HUS-73510500
...
2
BRACKET RH CRT HUS-102332X
...
3
BOLT.HEX.5/16-1.5 HUS-74760524
...
4
COUNTERWEIGHT CRT HUS-102173X
...
5
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
6
NUT.HEX.3/8-16UNC HUS-73220600
...
7
RETAINER M HUS-4497H
...
8
RIVET.DRILL.1.75 HUS-126875X
...
9
TIRE.CHV.13X5.0-6 HUS-102190X
...
9
RIM HUS-124258X
...
9
SUB= 65139 HUS-795R
