product name

Husqvarna HDF800, 96082000902 (2008-10) Cultivator/Tiller

Model: HDF800, 96082000902 (2008-10)

Save Part Not Listed?
product name

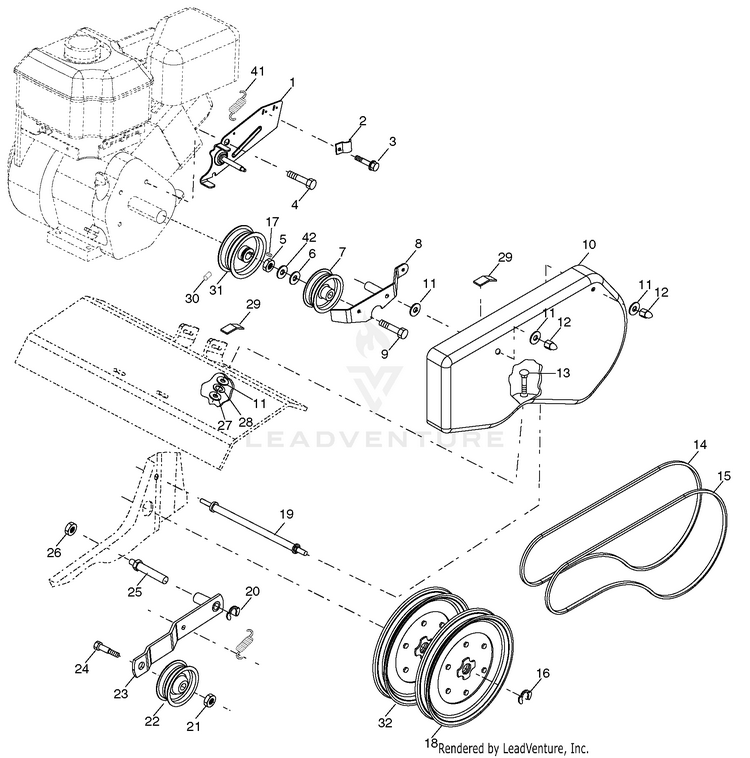

Belt Guard And Pulley Assembly

...
...
1
Bracket Assembly, Belt Guard HUS-180377
...
2
Clip, Cable HUS-9484R
...
3
Screw, Hex Washer Head, Slotted, Thread Cutting #10-24 x 1/2 HUS-86777
...
4
Bolt, Hex Head 1/2-20 x 3/4 HUS-74610812
...
5
Locknut, Hex 3/8-16 HUS-73680600
...
6
Washer, 13/32 x 13/16 x 16 Ga. HUS-19131316
...
7
Pulley, Idler, Reverse HUS-2009J
...
8
Reverse Idler Arm Assembly HUS-180323
...
9
Bolt, Hex Head 3/8-16 x 1-3/4 HUS-74760628
...
10
Guard, Belt HUS-194630X428
...
11
Washer 9/32 x 5/8 x 16 Ga. HUS-19091016
...
12
Nut, Hex, Cap 1/4-20 HUS-104213X
...
13
Bolt, Carriage 1/4-20 x 3/4 HUS-72140406
...
14
V-Belt (Forward Motion) HUS-133035
...
15
V-Belt (Reverse) HUS-2614J
...
16
Ring, Retainer HUS-12000028
...
17
Key, Square HUS-2649M
...
18
Pulley, Flat, Transmission HUS-151236
...
19
Bolt, Belt Guard HUS-188502
...
20
Ring, Klip HUS-12000036
...
21
Nut, Hex, Jam 3/8-16 HUS-73350600
...
22
Pulley, Idler HUS-161806
...
23
Arm, Idler HUS-175377
...
24
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
25
Shaft, Idler Arm HUS-106968X
...
26
Nut, Hex, Jam 5/16-18 HUS-73350500
...
27
Nut, Hex 1/4-20 HUS-73220400
...
28
Washer, Lock, HH Spring 1/4 HUS-10040400
...
29
Pad, Idler HUS-109227X
...
30
Set Screw, Headless, C.P.1/4-20 x 1/4 HUS-23200404
...
31
Sheave, Engine HUS-101189L
...
32
Pulley, V-Groove, Transmission HUS-151223
...
41
Spring HUS-180307
...
42
Spacer HUS-138909

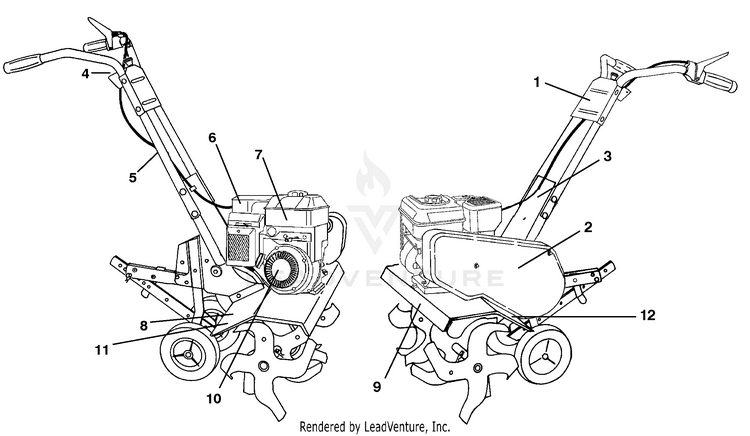

Decals

...
...
1
Decal, Poulan Pro HUS-403653
...
2
Decal, Poulan Pro, 800 Series/26" HUS-417932
...
3
Decal, Forward and Reverse HUS-411979
...
4
Decal, Reverse, Tine Control HUS-121753X
...
5
Decal, Hand Placement HUS-110614X
...
6
Decal, Engine HUS-417547
...
7
Decal, OHV, I/C HUS-417546
...
8
Decal, Warning HUS-422972
...
9
Decal, Heavy Duty HUS-411980
...
10
Decal, Rewind Starter HUS-411816
...
11
Decal, Warning, Rotating Tines HUS-120076X
...
12
Decal, Compliance HUS-416606
...
12
Manual, Operator's, English/French HUS-417134
...
12
Manual, Repair Parts HUS-425052

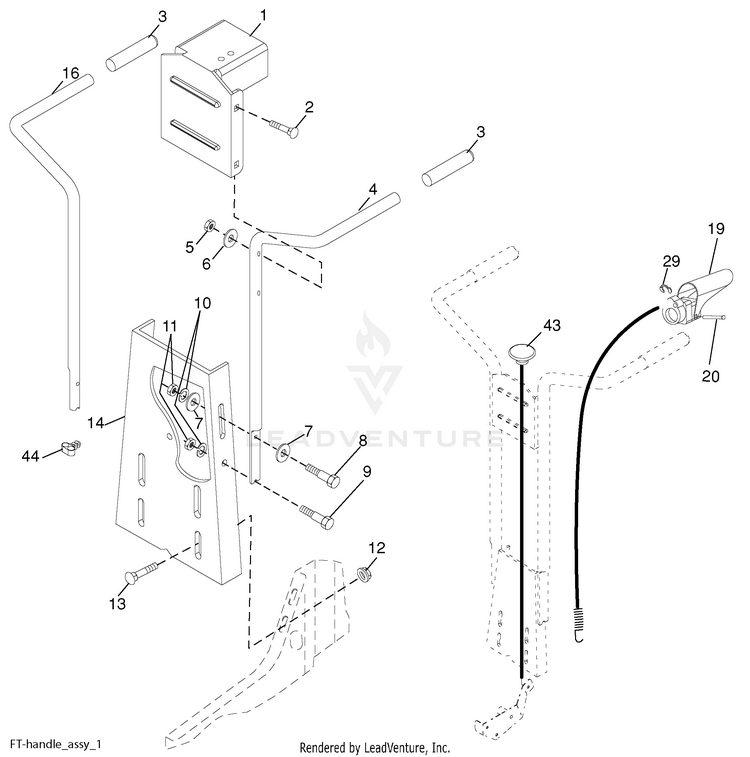

Handle Assembly

...
...
1
Bracket, Handle HUS-187820X428
...
2
Bolt, Carriage 5/16-18 x 1-1/2 HUS-72140512
...
3
Grip, Handle HUS-165787
...
4
Handle, L.H. HUS-166376
...
5
Nut, Hex, Crownlock 5/16-18 HUS-73680500
...
6
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
7
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
8
Bolt, Hex Head 5/16-18 x 1-1/4 HUS-74760520
...
9
Bolt, Hex Head 5/16-18 x 1 HUS-74760516
...
10
Washer, Lock 5/16 HUS-10040500
...
11
Nut, Hex 5/16-18 HUS-73220500
...
12
Nut, Hex, Flanged 5/16-18 HUS-98000129
...
13
Bolt, Carriage, Gr. 5 5/16-18 x 3/4 HUS-180847
...
14
Panel, Handle HUS-181452X428
...
16
Handle, R.H. HUS-166377
...
19
Tine Control Lever Assembly (Includes Cable) HUS-188562
...
20
Pin, Pivot HUS-188555
...
29
Retaining Ring HUS-12000059
...
43
Cable Assembly, Reverse HUS-188177
...
44
Clip HUS-181580

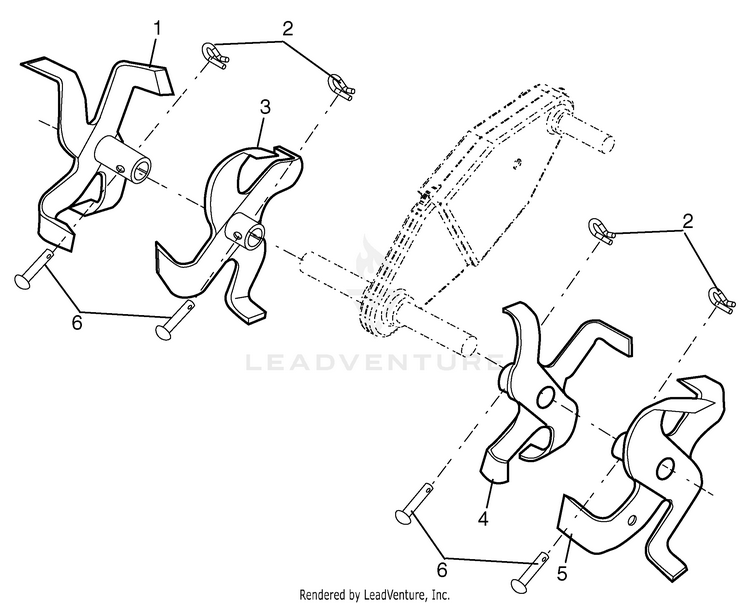

Tine Assembly

...
...
1
Tine, Outer, R.H. HUS-156934
...
2
Retainer, Spring HUS-3146R
...
3
Tine, Inner, R.H. HUS-156932
...
4
Tine, Inner, L.H. HUS-156931
...
5
Tine, Outer, L.H. HUS-156933
...
6
Pin, Clevis HUS-4929H

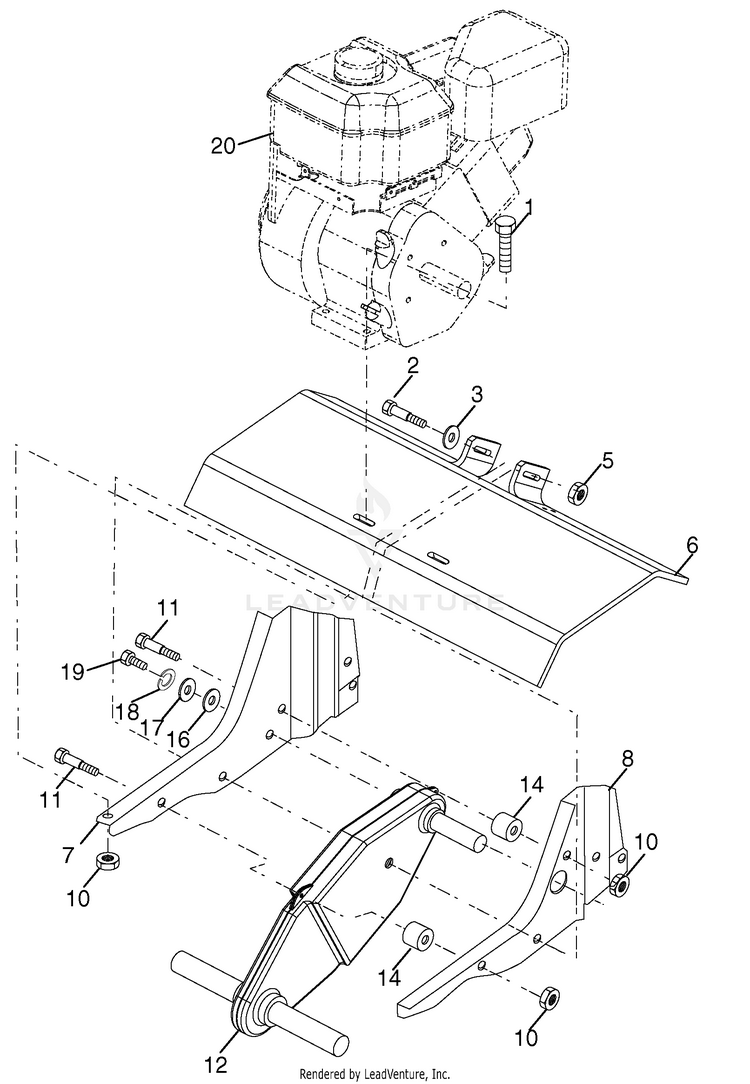

Transmission

...
...
1
Bolt, Hex Head, Gr. 25/16-18 x 1-1/2 HUS-74760524
...
2
Bolt, Hex Head, 3/8-16 x 3-1/4 HUS-74780652
...
3
Washer, 3/32 x 13/16 x 11 HUS-19131311
...
5
Nut, Hex, Flangelock 3/8-16 HUS-73900600
...
6
Shield, Tine HUS-9057R428
...
7
Bracket, Engine, R.H. HUS-188195
...
8
Bracket, Engine, L.H. HUS-165834
...
10
Nut, Hex, Flangelock HUS-73970500
...
11
Bolt, Shoulder HUS-187912
...
12
Transmission HUS-51222
...
14
Spacer, Split HUS-9173R
...
16
Washer, 9/32 x 7/8 x 12 Ga. HUS-19091412
...
17
Washer, 9/32 x 1-1/4 x 16 Ga. HUS-19092016
...
18
Washer, Lock 1/4 HUS-10040400
...
19
Bolt, Hex Head, Gr. 51/4-28 x 3/4 HUS-74610412

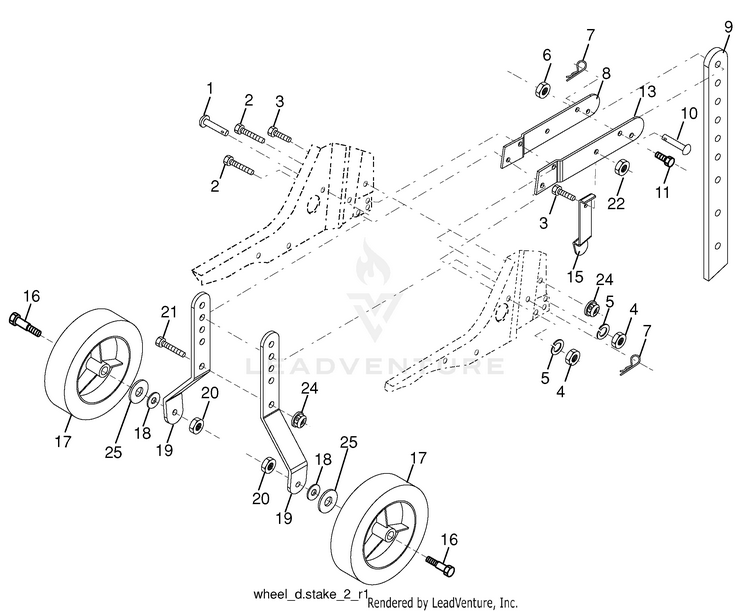

Wheel And Depth Stake Assembly

...
...
1
Pin, Clevis HUS-9194R
...
2
Bolt, Hex Head 5/16-18 x 1-1/4 HUS-74760520
...
3
Bolt, Hex Head 5/16-18 x 3/4 HUS-74760512
...
4
Nut, Hex 5/16-18 HUS-73220500
...
5
Washer, Lock 5/16 HUS-10040500
...
6
Locknut, Washer Insert 3/8-16 HUS-73800600
...
7
Clip, Hairpin HUS-4921H
...
8
Support, Depth Stake, R.H. HUS-1952J
...
9
Stake, Depth HUS-122233X
...
10
Pin, Clevis HUS-326J
...
11
Bolt, Hex Head 3/8-16 x 1-3/4 HUS-74780628
...
13
Support, Depth Stake, L.H. HUS-1951J
...
15
Spring, Stake HUS-5388J
...
16
Bolt, Shoulder HUS-121117X
...
17
Wheel HUS-400246X421
...
18
Washer 13/32 x 13/16 x 11 Ga. HUS-19131311
...
19
Bracket, Wheel HUS-9190R
...
20
Nut, Hex, Crownlock 3/8-16 HUS-73680600
...
21
Bolt, Hex Head 5/16-18 x 1 HUS-74760516
...
22
Locknut, Washer Insert 5/16-18 HUS-73800500
...
24
Nut, Hex, Flangelock HUS-73970500
...
25
Washer, 17/32 x 7/8 x 16 Ga. HUS-19171416
