Husqvarna HDF550H (1999) Tiller

Model: HDF550H (1999)

Back To Assemblies

Save Part Not Listed?
product name

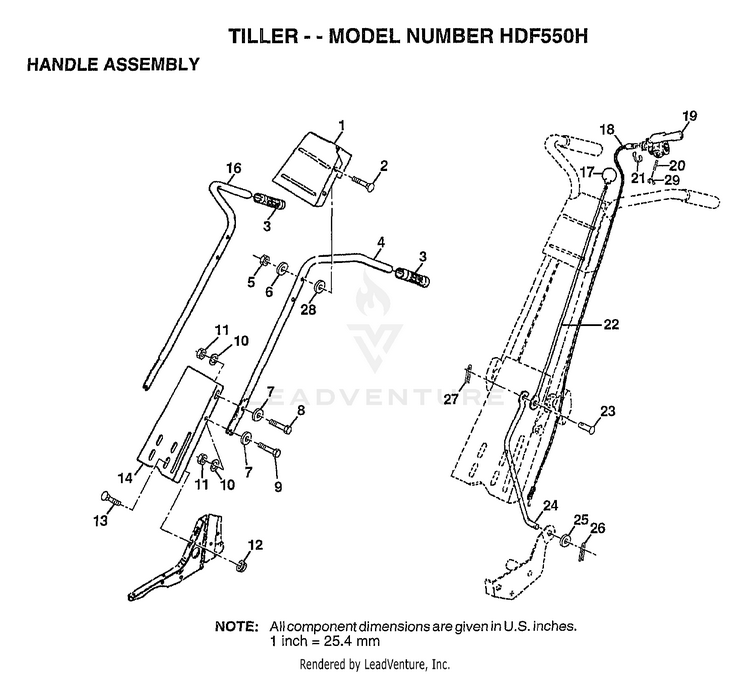

HANDLE ASSEMBLY

...
...
1
PANEL CONTROL HUS-131268X428
...
2
BOLT HUS-72140512
...
3
SUB= 624A78 HUS-9266R
...
4
HANDLE.LH HUS-166376
...
5
SUB= 73690500 HUS-73680500
...
6
WASHER HUS-19111116
...
7
WASHER HUS-19121414
...
8
SUB= 77394 HUS-74760516
...
9
BOLT HUS-74760512
...
10
LOCKWASHER HUS-10040500
...
11
NUT.HEX.5/16-18 HUS-73220500
...
12
NUT HUS-98000129
...
13
BOLT HUS-72140506
...
14
PANEL HANDLE HUS-674A150428
...
16
HANDLE.RH HUS-166377
...
17
KNOB T(3/8 HOLE) HUS-106932X
...
18
CABL.CLUTCH.49.88 HUS-166868
...
19
LEVER CONTRL TINE HUS-151229
...
20
"PIN PIVOT,GROOVED" HUS-154805
...
21
E-RING HUS-12000027
...
22
ROD.REVERSE.UPPER.22 HUS-167692
...
23
RIVET.RD.HD.DRILL HUS-1778E
...
24
REVERSE ROD TI HUS-2613J
...
25
WASHER HUS-19131316
...
26
COTTER PIN HUS-76020412
...
27
SUB= 3145 HUS-76020308
...
28
WASHER HUS-19131312
...
29
RETAINER RING HUS-12000059
