Husqvarna HDF550F (1998) Tiller

Model: HDF550F (1998)

Save Part Not Listed?
product name

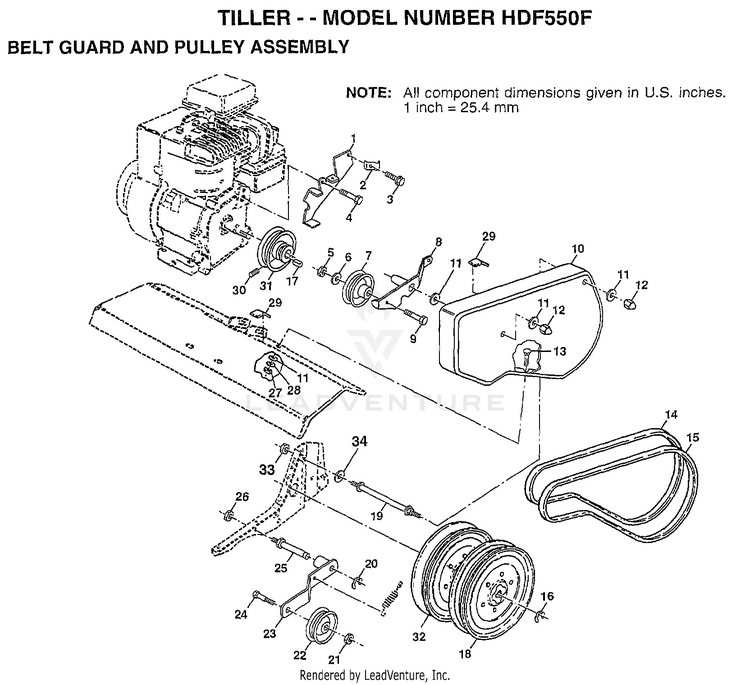

BELT GUARD AND PULLEY

...
...
1
ASM.BRKT.BELT.GRD HUS-159268
...
2
CONDIUT CLIP T HUS-9484R
...
3
SUB= 750097 HUS-86777
...
4
BOLT.HEX.HEAD HUS-74610812
...
5
NUT.HEX.3/8-16UNC HUS-73220600
...
6
WASHER HUS-19131316
...
7
PULLEY W/SPACER HUS-2009J
...
8
ARM.ASM.REV.IDLER HUS-127180X
...
9
BOLT HUS-74760628
...
10
GUARD.PNT.BELT.MS-428 HUS-156705X428
...
11
WASHER HUS-19091016
...
12
NUT-CAP TI HUS-104213X
...
13
BOLT T HUS-72140405
...
14
BELT-V HUS-133035
...
15
SUB= TH3H440 HUS-2614J
...
16
SUB= 2267J HUS-12000028
...
17
KEY T HUS-2649M
...
18
"SHEAVE,TRANS.""D""" HUS-151236
...
19
BOLT TI HUS-110550X
...
20
KLIP RING TI HUS-12000036
...
21
NUT HUS-73350600
...
22
"PULLEY,IDLER" HUS-161806
...
23
"ARM, IDLER" HUS-162290
...
24
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
25
SHAFT IDLER TI HUS-106968X
...
26
JAM NUT TI HUS-73350500
...
27
SUB= 50675 HUS-73220400
...
28
LOCKWASHER HUS-10040400
...
29
PAD IDLER TI HUS-109227X
...
30
SET SCREW HUS-23200404
...
31
ENGINE PULLEY TI HUS-101189L
...
32
SHEAVE.TRANS HUS-151223
...
33
NUT HUS-73510400
...
34
WASHER HUS-19091416

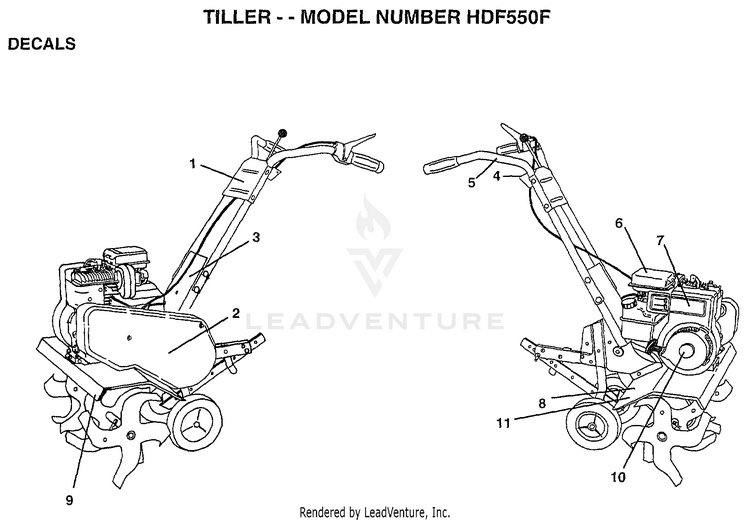

DECALS

...
...
1
"DECAL PANEL,CTRL" HUS-157377
...
2
"DECAL GUARD,BELT" HUS-157380
...
3
"DECAL PANEL,FORWD" HUS-157378
...
4
DECAL.PNL.CTRL.ES HUS-141914
...
5
DECAL.HAND.PLACE HUS-141907
...
6
DECAL.CAUTION.E/S HUS-141909
...
7
DECAL, BRIGGS & STRATTON HUS-271948
...
8
DECAL.WARN.ROT.TI HUS-141906
...
9
"DECAL SHIELD,TINE" HUS-157381
...
10
DECAL, 5HP HUS-273721
...
11
DECAL.TINE.SHIELD HUS-162215
...
xx
O.MANUAL.BM11M97A HUS-163659
...
xx
MANUAL.O.BM11M97A HUS-163660

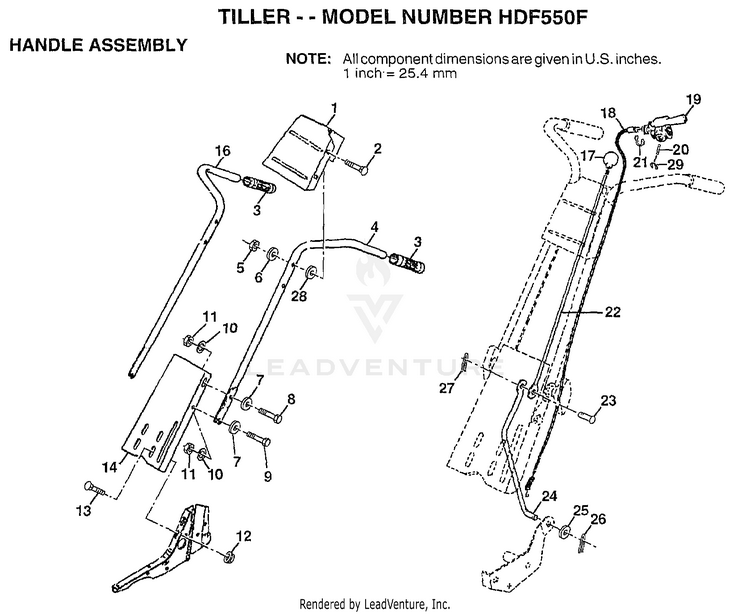

HANDLE ASSEMBLY

...
...
1
PANEL CONTROL HUS-131268X428
...
2
BOLT HUS-72140512
...
3
SUB= 624A78 HUS-9266R
...
4
HANDLE.LH TILLER HUS-153138
...
5
SUB= 73690500 HUS-73680500
...
6
WASHER HUS-19111116
...
7
WASHER HUS-19121414
...
8
SUB= 77394 HUS-74760516
...
9
BOLT HUS-74760512
...
10
LOCKWASHER HUS-10040500
...
11
NUT.HEX.5/16-18 HUS-73220500
...
12
NUT HUS-98000129
...
13
BOLT HUS-72140506
...
14
PANEL HANDLE HUS-674A150428
...
16
"HANDLE-RH,TILLER" HUS-153139
...
17
KNOB T(3/8 HOLE) HUS-106932X
...
18
CABLE CLUTCH T HUS-3066J
...
19
LEVER CONTRL TINE HUS-151229
...
20
"PIN PIVOT,GROOVED" HUS-154805
...
21
E-RING HUS-12000027
...
22
ROD REVERSE TI HUS-101248K
...
23
RIVET.RD.HD.DRILL HUS-1778E
...
24
REVERSE ROD TI HUS-2613J
...
25
WASHER HUS-19131316
...
26
COTTER PIN HUS-76020412
...
27
SUB= 3145 HUS-76020308
...
28
WASHER HUS-19131312
...
29
RETAINER RING HUS-12000059

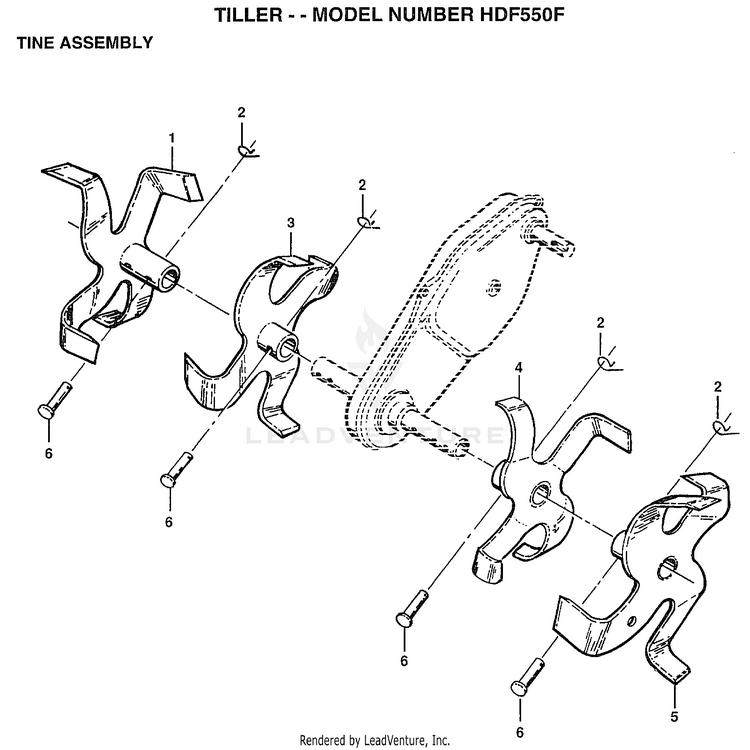

TINE ASSEMBLY

...
...
1
"TINE ASM,OUTER RH" HUS-156934
...
2
RETAINER.SPRING HUS-3146R
...
3
"TINE ASM.INNER,RH" HUS-156932
...
4
TINE ASM.INNER LH HUS-156931
...
5
"TINE ASM,OUTER LH" HUS-156933
...
6
RIVET.PAN HD.1.75 HUS-4929H

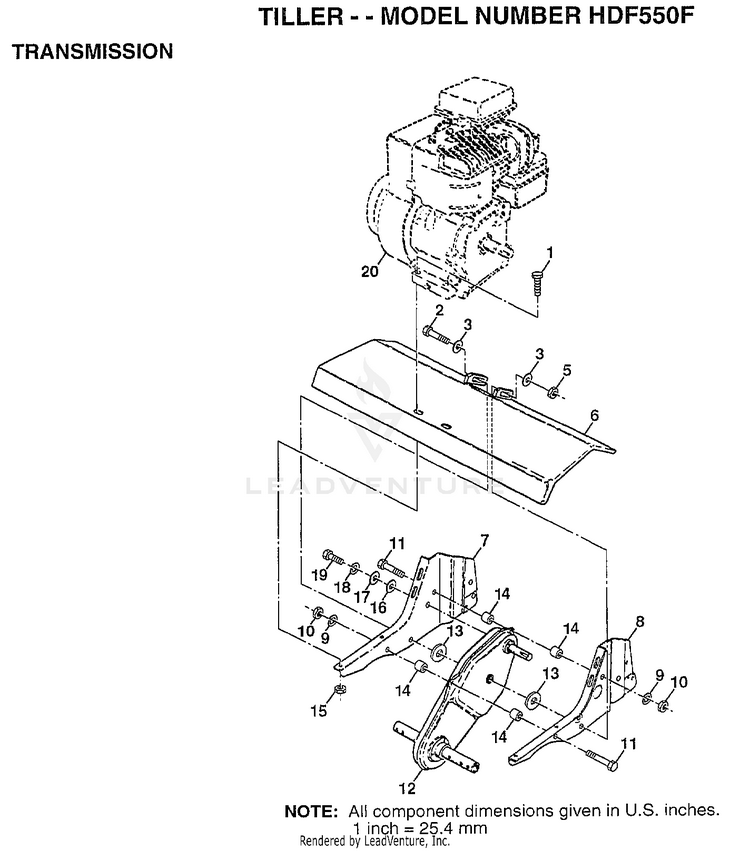

TRANSMISSION

...
...
1
BOLT.HEX.5/16-1.5 HUS-74760524
...
2
BOLT HEX 3/8-16 HUS-74780652
...
3
WASHER HUS-19131311
...
5
NUT HUS-73800600
...
6
SHIELD TINE HUS-9057R428
...
7
SUB= 1949J500 HUS-1949J
...
8
ENGINE BRKT LH TI HUS-1948J
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
SUB= 74780544 HUS-74760544
...
12
SUB= 165808 HUS-151222
...
13
WASHER HUS-19171616
...
14
SPLIT SPACER RT HUS-9173R
...
15
NUT HUS-73510500
...
16
WASHER HUS-19091412
...
17
WASHER HUS-19092016
...
18
LOCKWASHER HUS-10040400
...
19
BOLT HUS-74610412

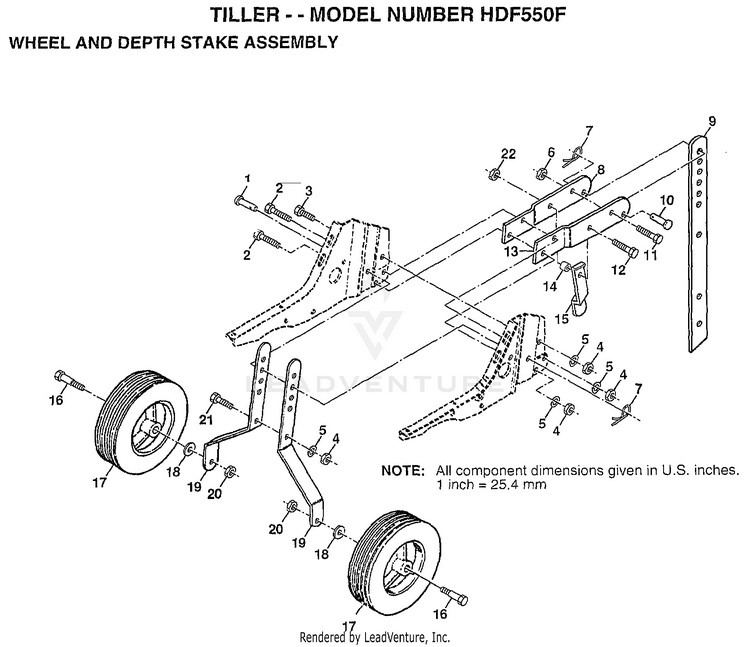

WHEEL AND DEPTH STAKE

...
...
1
DRILLED RIVET RT HUS-9194R
...
2
BOLT HUS-74760520
...
3
BOLT HUS-74760512
...
4
NUT.HEX.5/16-18 HUS-73220500
...
5
LOCKWASHER HUS-10040500
...
6
NUT HUS-73800600
...
8
SUB= 1952J500 HUS-1952J
...
9
SUB= 2582J HUS-122233X
...
10
SUB= 4929H HUS-326J
...
11
BOLT HUS-74780628
...
12
BOLT.HEX.5/16-1.5 HUS-74760524
...
13
SUB= 1951J500 HUS-1951J
...
14
WASHER HUS-120958X
...
15
STAKE SPRING TI HUS-5388J
...
16
BOLT SHOULDER HUS-121117X
...
17
SUB= 107644X HUS-9188R
...
18
WASHER HUS-19131311
...
19
SUB= 9190R500 HUS-9190R
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 77394 HUS-74760516
...
22
NUT HUS-73800500
