product name

Husqvarna HDC185H46B (1997) Tractor

Model: HDC185H46B (1997)

Back To Assemblies

Save Part Not Listed?
product name

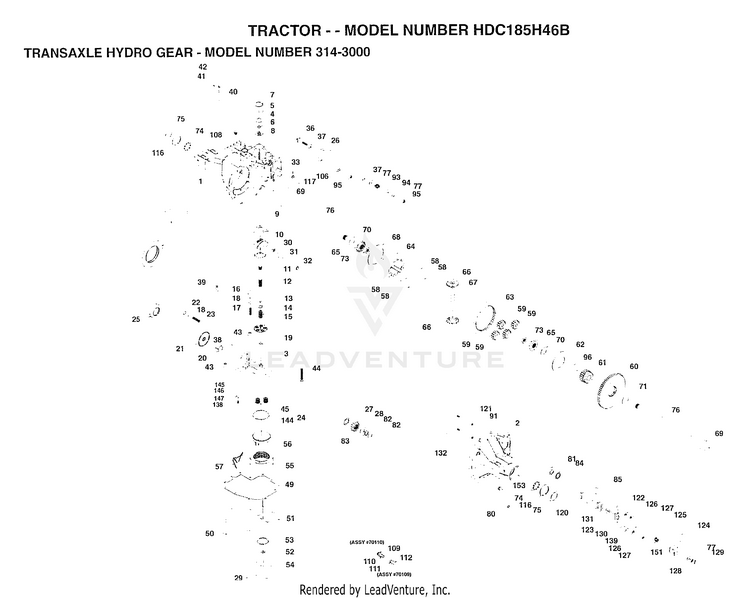

TRANSAXLE HYDRO GEAR

...
...
1
MAIN HOUSING ASSY HUS-161122
...
2
RH HOUSING ASSY HUS-161123
...
3
CENTER SECTION ASSY HUS-161124
...
4
SPACER HUS-161125
...
5
SEAL.9008000-0128 HUS-142932
...
6
RING.RET.2003016. HUS-142928
...
7
RING.RET.2003052. HUS-142933
...
8
BEARING.(50552)42X68X16 HUS-142934
...
9
CRADLE- 2003023. HUS-142935
...
10
SWASHPLT.2003087. HUS-142937
...
11
BEARING.THU.50551 HUS-150771
...
12
INPUT SHAFT HUS-161126
...
13
WASHER.2003017 HUS-142978
...
14
SPRING.2003014. HUS-142977
...
15
BLOCK.CLYN.70079. HUS-142938
...
21
BLOCK.CYLIN.70082 HUS-142944
...
24
OUTPUT (MOTOR) SHAFT HUS-161127
...
25
BEARING.THU.50552 HUS-150773
...
26
CONTROL ARM HUS-161128
...
27
SPACER HUS-161129
...
28
16T PINION GEAR HUS-161130
...
29
CAPSCREW, M6 X 1-22 HUS-161131
...
30
GUIDE.2000015. HUS-142941
...
31
TRUNNION ARM HUS-161132
...
32
TRUNNION BUSHING HUS-161133
...
33
SEAL.9008000-0126 HUS-142940
...
36
5/16-24 STUD HUS-161134
...
37
PUCK.DAMPER.50281 HUS-142967
...
39
ACTUATOR.2003555 HUS-142946
...
40
SEAL.LIP.45074 HUS-142945
...
41
ARM.BYPASS.50270 HUS-142952
...
42
RING.RETAIN.44870 HUS-142953
...
43
PIN.HYDRO.50002 HUS-142965
...
44
BOLT.3/8-24.50016 HUS-150797
...
49
GASKET, LOWER HUS-161135
...
50
SCREW HUS-161136
...
51
LOWER COVER HUS-161137
...
52
GEROTOR ASSY HUS-161138
...
53
0RING.90041011340 HUS-144581
...
54
GEROTOR COVER HUS-161139
...
55
FILTER HUS-161140
...
63
51T RING GEAR HUS-161148
...
56
CHARGE MANIFOLD HUS-161141
...
57
RETAINER, MOTOR BEARING HUS-161142
...
58
PIN, CARRIER HUS-161143
...
59
15T PLANET GEAR HUS-161144
...
60
67T SPUR GEAR HUS-161145
...
61
21T SUN GEAR HUS-161146
...
62
PLANET THRUST PLATE HUS-161147
...
64
PLANETARY CARRIER HUS-161149
...
65
MITER GEAR, DIFF. (SPLINED) HUS-161150
...
66
MITER GEAR, DIFF. HUS-161151
...
67
SHAFT, DIFFERENTIAL HUS-161152
...
68
DIFF. THRUST PLATE HUS-161153
...
70
WASHER HUS-161154
...
71
WASHER HUS-161155
...
73
HEX JAM NUT, 5/8-18 HUS-161156
...
75
SEAL HUS-161157
...
76
SHAFT, AXLE HUS-161158
...
77
WASHER HYD 44130 HUS-142884
...
79
GASKET.44813 HUS-150801
...
80
SCREW HUS-161159
...
81
NEEDLE BEARING HUS-161160
...
82
WASHER HUS-161161
...
83
RETAINING RING HUS-161162
...
84
LIP SEAL HUS-161163
...
85
BRAKE DISK HUS-161164
...
93
SPRING.HYD.50277 HUS-142969
...
94
SPACER.HYD.50278 HUS-142980
...
95
NUT.LOCK.HX.50108 HUS-142957
...
96
SLEEVE BEARING HUS-161165
...
97
OIL HUS-150798
...
106
SPACER, TRUNNION HUS-161166
...
109
O-RING.ASM.70110 HUS-142918
...
111
CAP.VENT.70109 HUS-142917
...
116
RETAINING RING HUS-161167
...
117
STD HDLS PIN HUS-161168
...
120
PUCK BRAKE 44132 HUS-142883
...
122
BRAKE YOKE HUS-161169
...
123
BOLT HUS-161170
...
124
ARM, BRAKE HUS-161171
...
125
PIN BRAKE 44127 HUS-142887
...
126
LOCKWASHER, 1/4 HUS-161172
...
127
NUT, 1/4-20 HUS-161173
...
128
SUB= 144607 HUS-142885
...
129
SUB= 144608 HUS-142886
...
130
SPACER HUS-161174
...
131
PUCK PLATE 44134 HUS-142882
...
138
SCREW HUS-161175
...
139
WASHER HUS-161176
...
144
O RING HUS-161177
...
145
CHARGE RELIEF SPRING HUS-161178
...
146
BALL HUS-161179
...
147
PLATE, RELIEF HUS-161180
...
151
COMP. SPRING, BRAKE ANTI-DRAG HUS-161181
...
153
PLUG.9005110-5600 HUS-142914
