Husqvarna HDC185H46A (1997) Tractor

Model: HDC185H46A (1997)

Back To Assemblies

Save Part Not Listed?
product name

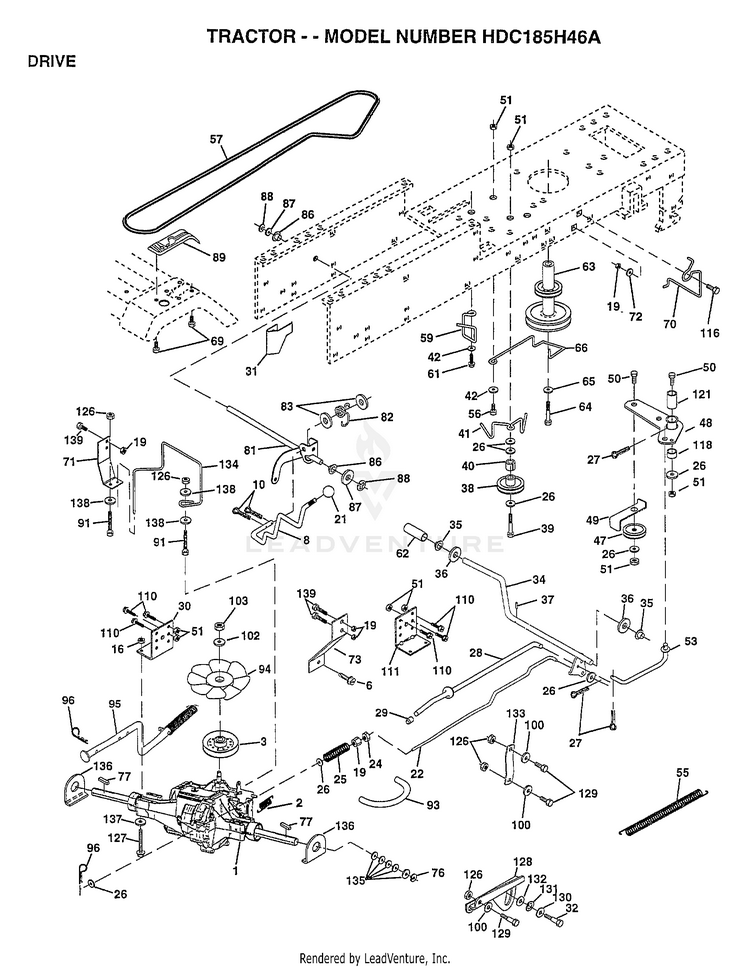

DRIVE

...
...
2
SPRING RET BRAKE HUS-142431
...
3
PULLEY.TRANSAXLE HUS-143995
...
6
SCREW HUS-17490512
...
8
ROD SHIFT FEND YT HUS-141002
...
10
PIN COTTER 1/8 HUS-76020416
...
16
NUT HUS-73800500
...
19
NUT HUS-73800600
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
BRAKE.ROD.HYDRO. HUS-158274
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
BRKT TRANS LH HUS-123780X
...
31
KEEPER BELT LH HUS-123791X
...
32
BOLT HUS-74760512
...
34
SHAFT ASM-PEDAL F HUS-155071
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
SUB= 165692 HUS-154777
...
42
WASHER HUS-19131312
...
47
SUB= 139245 HUS-127783
...
48
BELLCRANK ASM HUS-154604
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
53
"LINK, CLUTCH T" HUS-105710X
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
SUB= 137675 HUS-158306
...
59
KEEPER BELT CNTSP HUS-140312
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY.ENGINE HUS-140186
...
64
BOLT HUS-71170764
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER-BELT HUS-154778
...
69
SCREW HEXWSH H-L HUS-142432
...
70
"GUIDE.BELT,RH ENG" HUS-156470
...
71
STRAP.TORQUE.LH.HYDRO HUS-158283
...
72
WASHER HUS-19132012
...
73
STRAP.TORQUE.RH.HYDRO HUS-158282
...
76
E RING HYT HUS-12000053
...
77
SQ KEY STD HUS-9396E
...
81
SHAFT ASM. CROSS HYDRO 20" TIRES HUS-158281
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
86
BUSHING HUS-71208
...
87
WASHER D HUS-19212016
...
88
KLIP RING HUS-12000008
...
89
SUB= 164892 HUS-151146
...
91
NLA HUS-74780536
...
93
"LINE FUEL HYD 4""" HUS-142564
...
94
"FAN 7"" HYDRO" HUS-140462
...
95
CONTROL.ASM.BYPAS HUS-158508
...
96
RETAINER M HUS-4497H
...
100
WASHER M HUS-19111216
...
102
WASHER BELLEVILLE HUS-141322
...
103
SUB= 73360800 HUS-73940800
...
110
SUB= 74780612 HUS-74760612
...
111
BRKT TRANS RH HUS-123776X
...
116
BOLT RDHD 3/8-16 HUS-72110610
...
118
SPACER-BELLCRANK HUS-154774
...
121
NYLINER-CLUTCHING HUS-154419
...
126
SUB= 68478 HUS-1685H
...
127
BOLT FIN HEX 5/16 HUS-74780548
...
128
BRKT NEUTRAL ADJ HUS-158284
...
129
"BOLT,SHOULDER" HUS-153236
...
130
WASHER HUS-19111610
...
131
LOCKWASHER HUS-10040800
...
132
WASHER HUS-19171512
...
133
SUB= 159697 HUS-158279
...
134
"KEEPER BELT,RH" HUS-158278
...
135
WASHER HUS-123800X
...
136
WASHER AXLE HYDRO HUS-158531
...
137
WASHER HUS-19111212
...
138
WASHER HUS-19112016
...
139
BOLT HUS-74780612
...
140
SUB= 160849 HUS-159140
