Husqvarna HD775HW - 96143008601 (2013-02) Walk Behind Mower

Model: HD775HW - 96143008601 (2013-02)

Save Part Not Listed?
product name

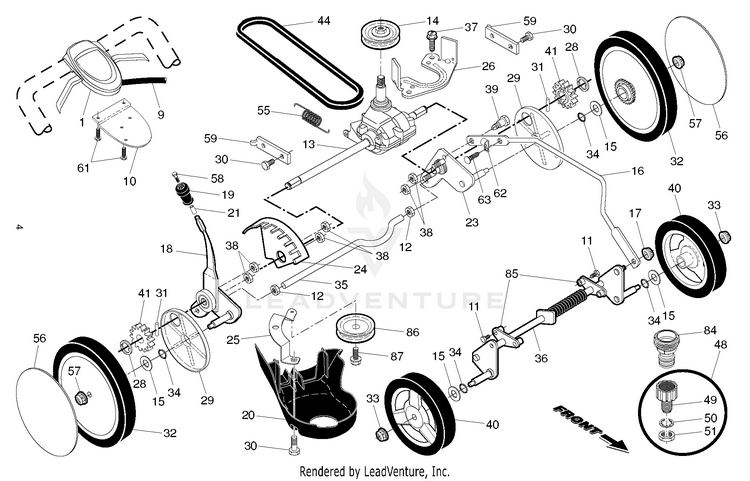

DRIVE

...
...
1
CONTROL.DR.AW2.22+.BLK.GEN INCLUDES CABLE HUS-589818808
...
85
BRACKET.FRT.AXLE.SUPPORT HUS-532439077
...
24
BRACKET.WHL.ADJ.9.POS.W/PAD HUS-532433511
...
16
ROD.CONNECTING.RGD.22+.HW.BLAC HUS-532430030
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
49
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
87
SCREW HUS-581127601
...
36
AXLE.ASM.FRONT.RGD.CLEAR.ZINC FRONT HUS-532442207
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
58
SCREW.12-14X1.500 HUS-532435241
...
55
SPRING.RETURN.AUTO. HUS-581351301
...
28
E-RING 7/16 RE HUS-812000058
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
25
BRACKET.DRIVE.COVER.RGD. HUS-581313802
...
12
NUT.HEX.1/2-20 HUS-873940800
...
17
NUT.LOCK.5/16-18 HUS-532751153
...
9
CABLE.CONTROL.22RGD.GEN2 HUS-532431650
...
18
SELECTOR.ASM.22PLUS.SP HUS-532437864
...
37
SCREW HUS-532163409
...
86
PULLEY.RWD.IDLER.DBL SEAL HUS-587969201
...
32
WHEEL.11X2.DRIVE.RAD2.BB.GREY REAR HUS-581336701
...
30
BOLT.5/16HEX.WHS.HD HUS-817000510
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
41
PINION.12.TEETH.RGD.22+HW HUS-532428783
...
11
SCREW.HX.13X.750 HUS-817411312
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
50
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
21
SCREW.PLASTIC.ANCHOR.5/16 HUS-532435242
...
63
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
48
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
15
WASHER.FLAT.1/2 HUS-532088348
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 FRONT HUS-532401273
...
34
O-RING..070X.487.NEOPRENE HUS-532197480
...
57
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
31
PAWL, DRIVE HUS-532404845
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
14
PULLEY HUS-532194128
...
44
BELT V3L 35.42, CLUTCHING COVE HUS-580364611
...
56
HUBCAP.H.3SPK.GREY HUS-532441333
...
35
AXLE.REAR.RGD REAR HUS-532430598
...
13
TRANSMISSION.22+AWD.WALK.MOWER HUS-581680801
...
29
COVER.DUST.WHEEL.RGD.HW HUS-532428781
...
23
ADJUSTER.ARM.ASM.AX.LT.SP.HW LH HUS-532437865
...
19
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996
...
51
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
84
COUPLING.QUICK CONNECT HUS-532416405
...
62
CLIP.CABLE.BLK HUS-532197991

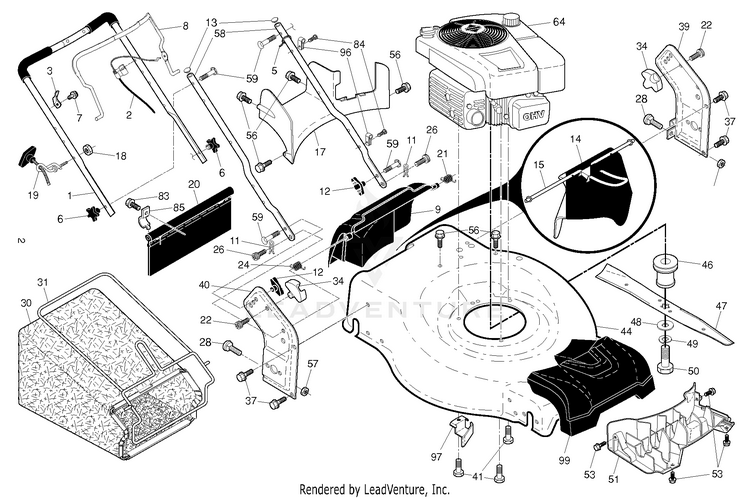

FRAME & ENGINE

...
...
40
BRACKET.ASM.HNDL.LT.22+.GREY RH HUS-581353702
...
1
HANDLE.ASM.UP.BS.AW2.GRIP.498 INCLUDES FOAM GRIP HUS-580638710
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
47
BLADE.22+.PREMIUM/PREC.FGD/RGD HUS-532421825
...
24
SPRING.RH.GRAY RH HUS-532419948
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
83
SCREW HUS-817021008
...
30
GBAG.A3610010.BLK.GENERIC HUS-580947302
...
49
Washers HUS-596238701
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
37
BOLT.5/16HEX.WHS.HD HUS-817000510
...
2
CABLE.MZR.50.SNAP-IN HUS-532427497
...
46
ADAPTER.BLADE.25MM.3MPH HUS-581851501
...
15
HANDLE DEFLECTOR.22+REAR HUS-532437273
...
58
HANDLE.LOWER.22+BT.2PC.GRY HUS-532441197
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
96
CLIP.CABLE.BLK HUS-532197991
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
39
BRACKET.ASM.HNDL.RT.22+.GREY LH HUS-581353602
...
57
GSPW Hardware HUS-596039201
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
64
B&S 111P02-0130-F1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
97
BRACKET.BELT.GUIDE.22+.BZP HUS-581115302
...
51
BAFFLE.FRONT.22+PLASTIC.(2 2) HUS-581238901
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
53
SCREW.HI-LO.5/16 X.75 HUS-532437345
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
44
HOUSING.22+.RWD.HD.WO/PORT.ORN HUS-532447252
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
7
SCREW HUS-532178848
...
8
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
14
DEFLECTOR.CHUTE.22+REAR HUS-532437132
...
21
SPRING.LH.BLACK LH HUS-532419949
...
28
Bolts HUS-596136401
...
56
SCREW.HX.13X.750 HUS-817411312
...
99
COVER.ASM.FRONT.SHROUD.HUSQ. HUS-532437389
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
48
WASHER,HARDEN HUS-532851074
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
20
SKIRT.REAR.22+RGD.HIGH WHEEL HUS-532444537
