Husqvarna HD600L Walk Behind Mower

Model: HD600L

Save Part Not Listed?
product name

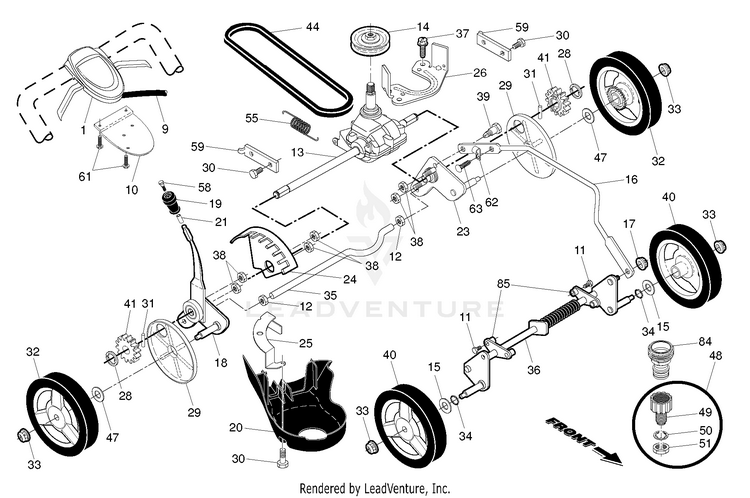

DRIVE

...
...
25
BRACKET.DRIVE.COVER.RGD.BZP HUS-532426065
...
16
ROD.CONNECTING.RGD.22+.HW.BLAC HUS-532430030
...
31
PAWL, DRIVE HUS-532404845
...
34
O-RING..070X.487.NEOPRENE HUS-532197480
...
28
E-RING 7/16 RE HUS-812000058
...
19
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996
...
49
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
47
WASHER FLUT HUS-532067725
...
40
WHEEL.8IN.H3SPK.ALPHA. HUS-532442822
...
58
SCREW.12-14X1.500 HUS-532435241
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
23
ADJUSTER.ARM.ASM.AX.RT.SP.ZC LH HUS-532437870
...
35
AXLE.REAR.RGD HUS-532430598
...
9
CABLE.CONTROL.22RGD.GEN2 HUS-532431650
...
85
BRACKET.FRT.AXLE.SUPPORT HUS-532439077
...
36
AXLE.ASM.FRONT.RGD.CLEAR.ZINC HUS-532442207
...
84
COUPLING.QUICK CONNECT HUS-532416405
...
17
NUT.LOCK.5/16-18 HUS-532751153
...
51
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
24
BRACKET.WHL.ADJ.9.POS.W/PAD HUS-532433511
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
1
RP CONTROL AW2 22+RGD KH GY/BL Includes Cable HUS-532430972
...
63
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
44
BELT.DRIVE.RGD.PLUS HUS-532421527
...
14
PULLEY HUS-532194128
...
12
NUT.HEX.1/2-20 HUS-873940800
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
50
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
11
SCREW.HX.13X.750 HUS-817411312
...
62
CLIP.CABLE.BLK HUS-532197991
...
32
KIT.WHEEL.442789X460.8" HUS-532442856
...
21
SCREW.PLASTIC.ANCHOR.5/16 HUS-532435242
...
30
BOLT.5/16HEX.WHS.HD HUS-817000510
...
48
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
15
WASHER.FLAT.1/2 HUS-532088348
...
18
KIT.SELECTOR.ASM.437869 HUS-532438536
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
37
SCREW HUS-532163409
...
13
TRANSMISSION.22+AWD.WALK.MOWER HUS-581680801
...
55
SPRING HUS-532406558
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901

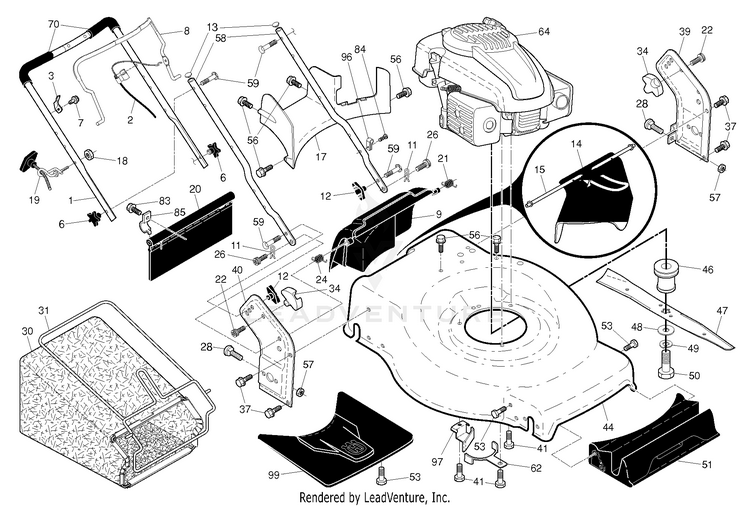

ENGINE

...
...
30
GBAG.A3610010.BLK.GENERIC HUS-580947302
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
56
SCREW.HX.13X.750 HUS-817411312
...
96
CLIP.CABLE.BLK HUS-532197991
...
37
BOLT.5/16HEX.WHS.HD HUS-817000510
...
8
BAIL.MZR.EZ2.DSTR.22+.ORG.E HUS-532433430
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
53
SCREW.HI-LO.5/16 X.75 HUS-532437345
...
14
DEFLECTOR.CHUTE.22+REAR HUS-532437132
...
24
SPRING.RH.GRAY HUS-532419948
...
15
HANDLE DEFLECTOR.22+REAR HUS-532437273
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
20
SKIRT.REAR.22PLUS.RGD.LW(2 2MC HUS-532444501
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
58
HANDLE.LOWER.22+BT.2PC.GRY HUS-532441197
...
40
BRACKET.ASM.HNDL.RT.22+.GREY RH HUS-581353602
...
51
BAFFLE.FRONT.22PLUS.PLASTIC RP HUS-532437131
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
12
HANDLE.KNOB.BLACK For 96143008301 HUS-532185577
...
47
BLADE.22+.PREMIUM/PREC.FGD/RGD HUS-532421825
...
21
SPRING.LH.BLACK HUS-532419949
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
46
ADAPTOR BLADE 25MM STAR HUS-581473301
...
1
HANDLE.ASM.GRY.W/GRIP Includes Foam Grip HUS-532427658
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
48
WASHER,HARDEN HUS-532851074
...
97
BRACKET.BELT.GUIDE.22+.004 BZP HUS-580606902
...
49
Washers HUS-596238701
...
2
CABLE.MZR.RGD.KOHLER.STRT HUS-532420951
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
39
BRACKET.ASM.HNDL.LT.22+.GREY LH HUS-581353702
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
7
SCREW HUS-532178848
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
44
HOUSING.22+.RWD.HD.WO/PORT.ORN HUS-532447252
...
64
KOHLER XT675-2015 FOR SERVICE & PARTS 1-800-544-2444 HUS-000000000
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
83
SCREW HUS-817021008
...
99
COVER.ASM.FRONT.SHROUD.HUSQ. HUS-532437389
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
64
NEEDS DESCRIPTION KOHLER XT149-0311, FOR SERVICE & PARTS, 1-800-544-2444 HUS-.
...
28
Bolts HUS-596136401
...
12
HANDLE.KNOB.BLACK For 96143008300, 96143008400 HUS-532185577
...
57
GSPW Hardware HUS-596039201
