Husqvarna HD3L4E9A (1996) Tractor

Model: HD3L4E9A (1996)

Back To Assemblies

Save Part Not Listed?
product name

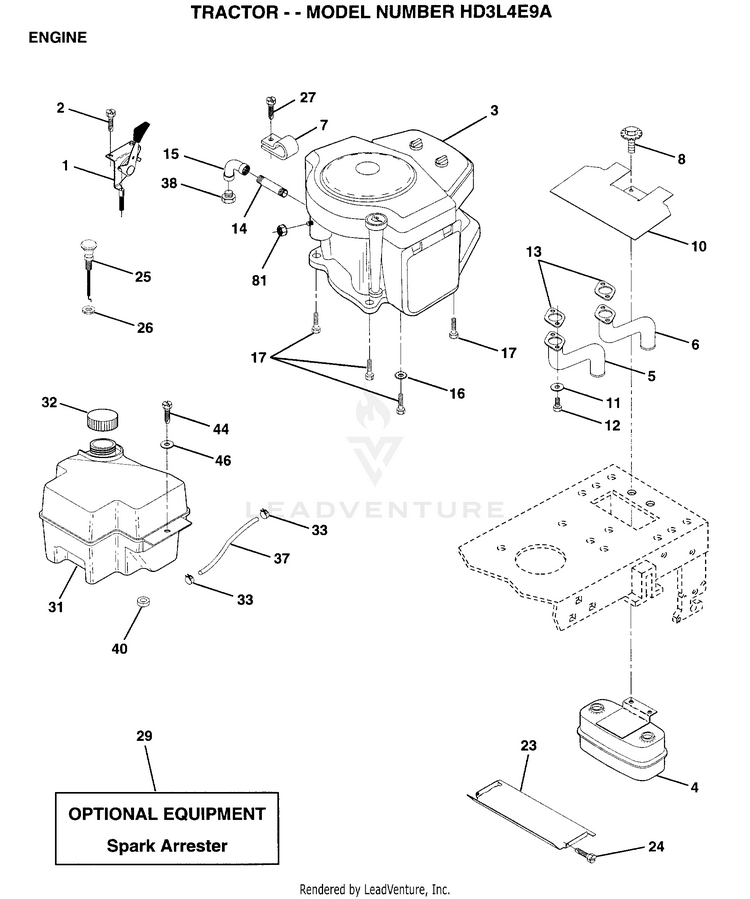

ENGINE

...
...
1
CONTROL THRT 35.5 HUS-141295
...
2
SCREW LT HUS-17720410
...
4
MUFFLER.TW.LOTONE HUS-149723
...
5
EXHAUST.B&S.18.LH HUS-144069
...
6
EXHAUST.B&S.18.RH HUS-144068
...
7
CLAMP.TUBE.DBL.EN HUS-138129
...
8
BOLT.5/16-18.UNC HUS-150176
...
10
SHIELD.HEAT. HUS-145552
...
11
SUB= 10040400 HUS-100040400
...
12
SUB= 74780414 HUS-74780412
...
13
GASKET MUFFLER HUS-272250
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
25
CONTROL.CHOKE.37 HUS-145996
...
26
"NUT,KEPS 3/8-24IM" HUS-73920600
...
27
SCREW.10-24X1/2 HUS-17541008
...
29
SUB= 532137180 HUS-137180
...
31
SUB= 161911 HUS-140280
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
37
LINE FUEL HUS-137040
...
40
SUB= 532124028 HUS-124028X
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
81
NUT HUS-128861
