Husqvarna HD2G4E8B (1996) Tractor

Model: HD2G4E8B (1996)

Back To Assemblies

Save Part Not Listed?
product name

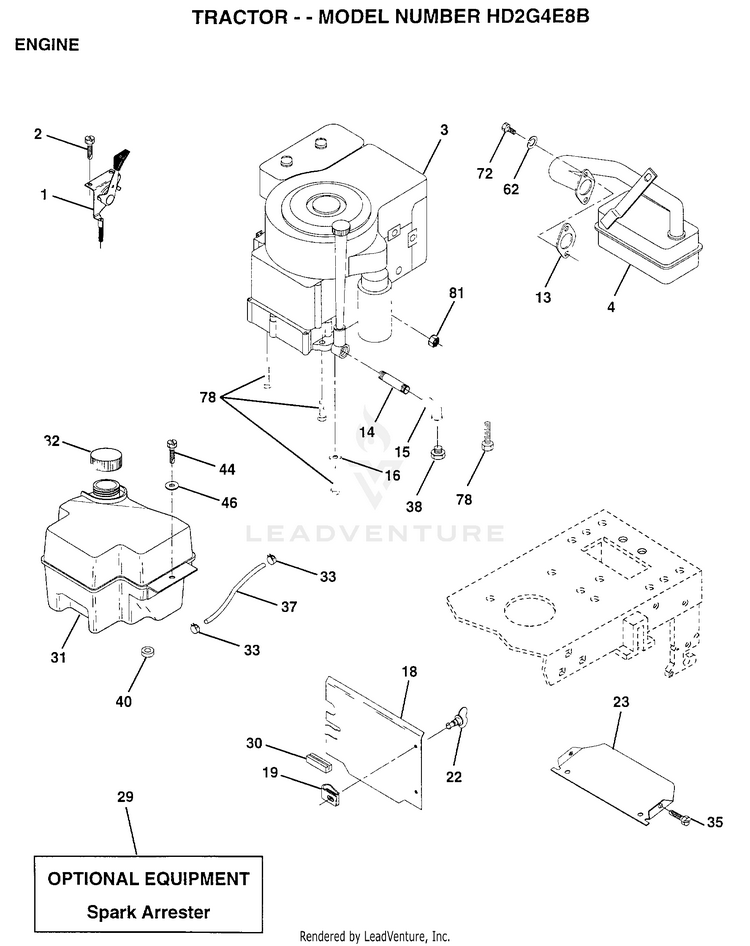

ENGINE

...
...
1
CONTROL THROTTLE HUS-140310
...
2
SCREW LT HUS-17720410
...
3
ENGINE B&S HUS-285707
...
4
MUFFLER HUS-137348
...
13
GASKET ENG 1 313 LD TIN PLATED HUS-272293
...
14
PIPE NIPPLE HUS-13280324
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
18
SHIELD HEAT HUS-136718
...
19
RECEPTACLE LT HUS-105839X
...
22
MANUAL.OWN.2032B5 HUS-149763
...
23
SUB= 157405 HUS-150554
...
29
SUB= 532137180 HUS-137180
...
30
SUB= 532127057 HUS-127057X
...
31
SUB= 161911 HUS-140280
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17490512
...
37
LINE FUEL HUS-137040
...
40
SUB= 532124028 HUS-124028X
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
62
LOCKWASHER HUS-10040500
...
72
SCREW HUS-71070512
...
78
SCREW HUS-17490620
...
81
NUT HUS-128861
