Husqvarna HD14542B (1999) Tractor

Model: HD14542B (1999)

Back To Assemblies

Save Part Not Listed?
product name

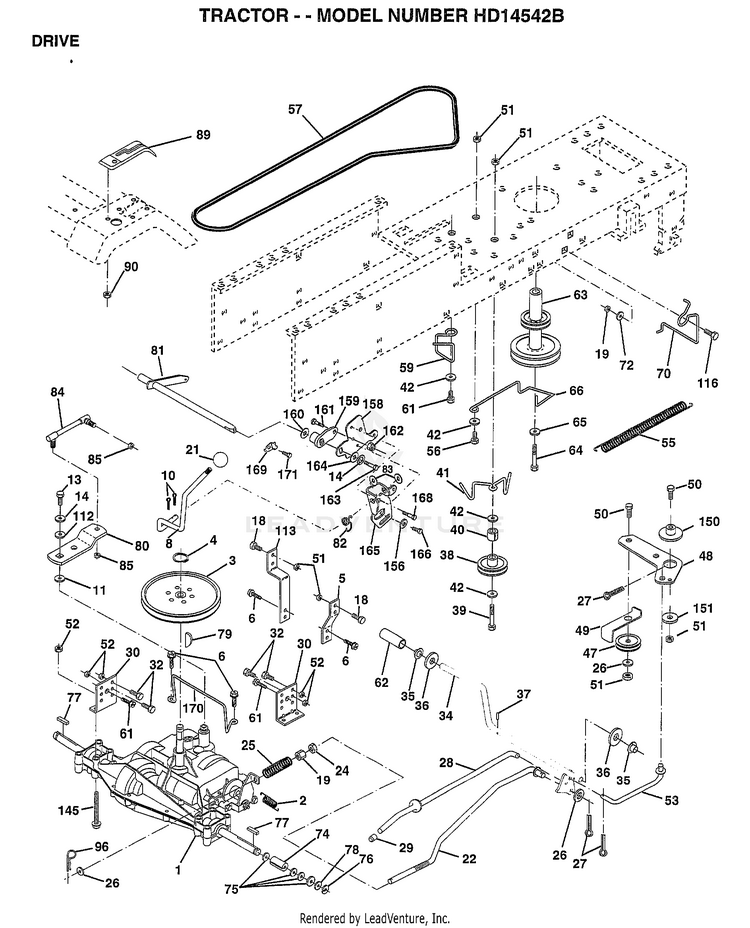

DRIVE

...
...
1
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
1
CHECK WITH SUPPLIER HUS-SUPPLIER
...
2
SPRING.BRAKE.RETU HUS-146682
...
3
PULLEY TRANS HUS-123666X
...
4
SUB= 2267J HUS-12000028
...
5
STRAP TORQUE HUS-121520X
...
6
SCREW HUS-17490512
...
8
ROD.SHIFT.FENDER.ADJ.LT.CRD HUS-165619
...
10
PIN COTTER 1/8 HUS-76020416
...
11
WASH-SHFT PLT LT HUS-105701X
...
13
BOLT.1/4-28.W/PAT HUS-74550412
...
14
LOCKWASHER HUS-10040400
...
18
BOLT HUS-74780616
...
19
NUT HUS-73800600
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
BRAKE ROD HUS-130804
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
TRANSAXLE MTG BKT HUS-130807
...
32
BOLT HUS-74760512
...
34
SHAFT ASM-PEDAL F HUS-155071
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
FLAT IDLER PULLEY HUS-131494
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
"KEEPER,BELT.IDLER FLAT" HUS-165838
...
42
WASHER HUS-19131312
...
47
SUB= 139245 HUS-127783
...
48
BELLCRANK.CLUTCH HUS-154407
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
SUB= 73690500 HUS-73680500
...
53
"LINK, CLUTCH T" HUS-105710X
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
SUB= 138255 HUS-130801
...
59
KEEPER BELT CNTSP HUS-140312
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY.ENGINE HUS-140186
...
64
BOLT HUS-71170764
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER-BELT HUS-154778
...
70
KEEPER BELT ENG HUS-134683
...
72
WASHER HUS-19132012
...
74
SPACER AXLE HUS-137057
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
79
SUB= 2228M1 HUS-2228M
...
81
SHAFT.ASM.CROSS HUS-165594
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
84
LINK.TRANSAXLE HUS-166228
...
85
NUT.CNT.LOCK.1/4 HUS-150360
...
88
KLIP RING HUS-12000008
...
89
CONSOLE.SHIFT.SLT HUS-139964X428
...
90
NUT HUS-124346X
...
96
RETAINER M HUS-4497H
...
112
WASHER LT HUS-19091210
...
113
"STRAP,TORQUE" HUS-127285X
...
116
BOLT RDHD 3/8-16 HUS-72110610
...
145
BOLT.HEX.FLGHD HUS-74490540
...
150
BUSHING.BELLCRANK.GRD.DR HUS-165850
...
151
WASHER HUS-19133210
...
156
WASHER.SRRTD.5/16 HUS-166002
...
158
BRKT.SHIFT.MOUNT HUS-165589
...
159
HUB.SHIFT HUS-165494
...
160
WASHER HUS-19292016
...
161
BOLT T HUS-72140406
...
162
SUB= 73690400 HUS-73680400
...
163
NLA HUS-74780416
...
164
WASHER.5/8X.281X10GA HUS-19091010
...
165
BRKT.PIVOT.LEVER HUS-165623
...
166
SCREW.5/16-18X5/8 HUS-166880
...
168
BOLT.SHOULDER.5/16-18X.561 HUS-165492
...
169
PLATE.FASTENING HUS-165581
...
170
KEEPER.BELT.TRANSAXLE HUS-165849
...
171
SCREW LT HUS-17490608
