Husqvarna HD13538, 96016001402 (2006-04) Tractor/Ride Mower

Model: HD13538, 96016001402 (2006-04)

Back To Assemblies

Save Part Not Listed?
product name

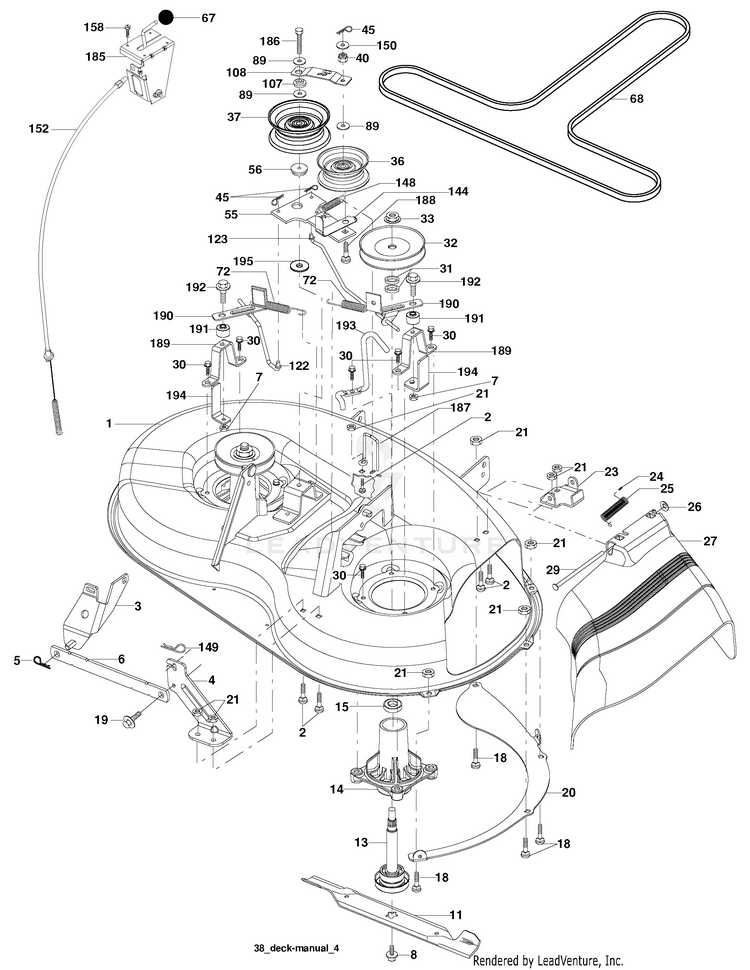

Mower Dock

...
...
1
Mower Housing Assembly HUS-192556
...
2
Bolt Carriage 5/16-18 x 3/4 HUS-72140506
...
3
Bracket Asm Fr. Sway Bar HUS-138017
...
4
Bracket Deck Sway Bar 38"/42" HUS-192568
...
5
Retainer Spring HUS-4939M
...
6
Bar Sway Deck HUS-178024
...
7
Nut Lock Hex W/Ins 5/16-18 UNC HUS-73800500
...
8
Bolt Washer Asm 7/16-20 UNF HUS-193003
...
11
Blade Mower HUS-193957
...
13
Shaft Assembly, Mandrel, Vented (Includes Key Number 6) HUS-192872
...
14
Housing, Mandrel, Vented HUS-187281
...
15
Bearing, Ball, Mandrel HUS-110485X
...
18
Bolt RDHD SQNK 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Shoulder HUS-132827
...
20
Baffle Vortex Front HUS-400095
...
21
Nut HUS-73680500
...
23
Bracket, Mower Deflector HUS-192557
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Deflector HUS-197026
...
26
Nut, Push HUS-110452X
...
27
Shield, Deflector HUS-192572X428
...
29
Rod, Hinge HUS-131491
...
30
Screw Thdrol. HUS-173984
...
31
Washer, Spacer HUS-187690
...
32
Pulley, Mandrel HUS-153532
...
33
Nut, Toplock HUS-400234
...
36
Pulley, Idler, Flat HUS-131494
...
37
Pulley Idler Flat HUS-193198
...
40
Nut, Crownlock 3/8-16 unc HUS-73680600
...
45
Retainer HUS-4497H
...
55
Idler Arm Assembly HUS-133840
...
56
Spacer, Retainer HUS-165723
...
67
Knob HUS-106932X
...
68
V-Belt, 38" Mower HUS-193214
...
72
Spring Brake Return HUS-193216
...
89
Washer 13/32 x 13/16 x 11 Ga. HUS-19131311
...
107
Spacer Retainer HUS-133502
...
108
Stiffener, Idler Arm HUS-133503
...
122
Linkage Brake RH HUS-192575
...
123
Linkage Brake LH HUS-192576
...
144
Lee[er Be;t Od;er Temsopm HUS-193414
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow HUS-165898
...
150
Washer 9/32 x 3/4 x 16 Ga. HUS-19091216
...
152
Clutch Cable 38"/46" HUS-193235
...
158
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
185
Head Asm Cable Clutch HUS-188234
...
186
Screw HXWSH THDR 3/8-16 x 2 3/4 HUS-17490644
...
187
Keeper Belt Front HUS-193412
...
188
Bolt Carriate Idler HUS-165891
...
189
Brake Stand HUS-192559
...
190
Brake Asm HUS-192560
...
191
Brake Spacer HUS-192561
...
192
Bolt/Washer Asm 5/16-18 HUS-193782
...
193
Keeper Belt RH Mandrel HUS-193413
...
194
Brake Guard HUS-194105
...
195
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
195
Mandrel Assembly (Includes Housing,Shaft and Shaft Hardware Only - Pulley Not Included) HUS-192870
...
195
Replacement Mower, Complete HUS-193646
...
195
Brake Assembly HUS-192558
