Husqvarna HALT150E (1999 & Before) Tractor

Model: HALT150E (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

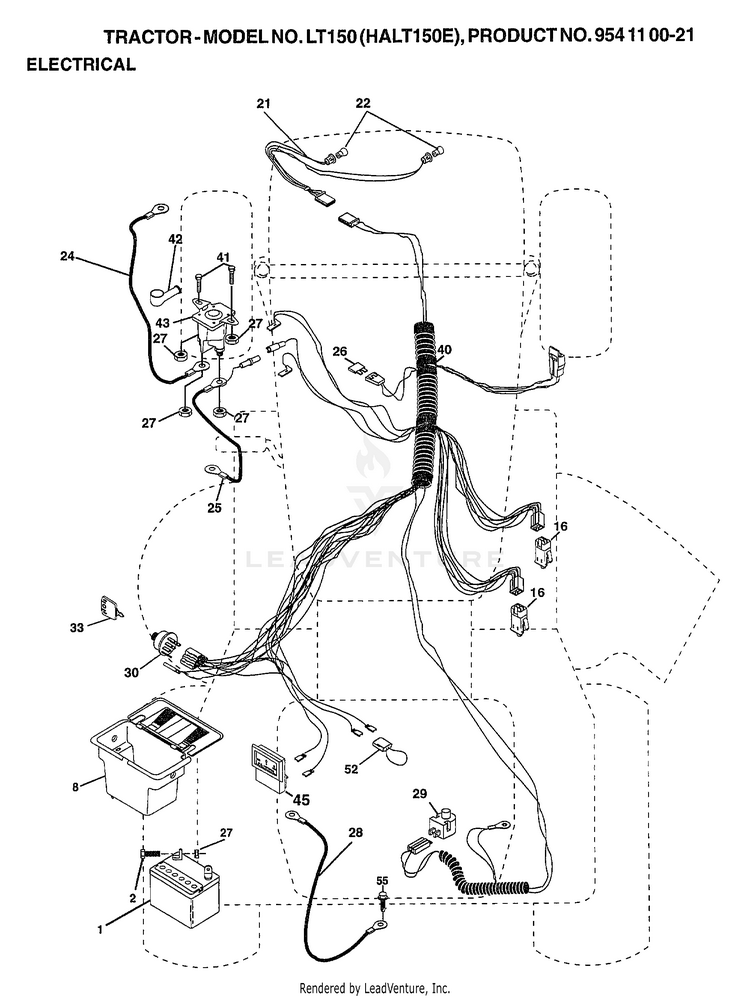

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT HEX HD 1/4-20 X 3/4 HUS-874760412
...
8
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
16
Switch Interlock Push-In HUS-532176138
...
21
HARNESS ASM HUS-532166181
...
22
SUB= 4152J HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
SUB= 146147 HUS-532146147
...
26
Fuse 20 AMP HUS-532175158
...
27
Nut Crownlock 1/4-20 unc HUS-873680400
...
28
HUS-532004207
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
Switch Ignition Delta Push-In HUS-532175566
...
33
SUB= 140401 HUS-532140401
...
40
HARNESS.IGNITION HUS-532179720
...
41
HCS.1/4-20.X1/2 HUS-539990071
...
42
Cover, Terminal Red HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
45
Ammeter HUS-532122822
...
52
SUB= 141940 HUS-532141940
