product name

Husqvarna HA 110 (2009-04) Hedge Trimmer

Model: HA 110 (2009-04)

Save
 Part Not Listed?Part Not Listed?
product name

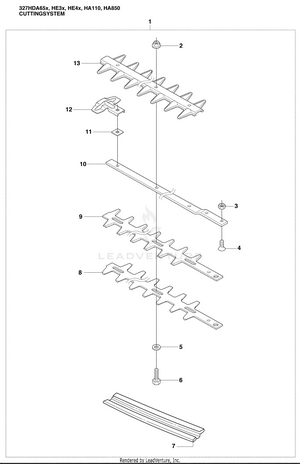

Cutting System

...
...
1a
CUTTING DECK HDA 55 327HE3x, 327HE4x, HA110, HA850 HUS-505065503
...
1b
CUTTING DECK 327HDA65x HUS-505065701
...
2a
NUT 327HE3x, 327HE4x, HA110, HA850 HUS-503220006
...
2b
NUT 327HDA65x HUS-503220006
...
3
NUT HUS-503221012
...
4
SCREW HUS-725633155
...
5a
WASHER 6,4X18X1,5 327HE3x, 327HE4x, HA110, HA850 HUS-503230024
...
5b
WASHER 6,4X18X1,5 327HDA65x HUS-503230024
...
6a
Screws 327HE3x, 327HE4x, HA110, HA850 HUS-589308901
...
6b
Screws 327HDA65x HUS-589308901
...
7a
Transport Guard 327HE3x, 327HE4x, HA110, HA850 HUS-581259304
...
7b
TRANSPORT GUARD 327HDA65x HUS-544004802
...
8a
BLADE 327HE3x, 327HE4x, HA110, HA850 HUS-505064801
...
8b
BLADE 327HDA65x HUS-505065001
...
9a
BLADE 327HE3x, 327HE4x, HA110, HA850 HUS-505064801
...
9b
BLADE 327HDA65x HUS-505065001
...
10a
BALK 327HE3x, 327HE4x, HA110, HA850 HUS-537283901
...
10b
BEAM 327HDA65x HUS-544431301
...
11
WASHER STEEL 327HDA65x HUS-544462701
...
12
PROTECTOR 327HDA65x HUS-537372001
...
13
PLATE 327HDA65x HUS-537284401

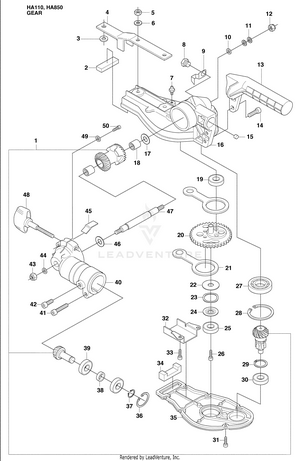

Gear

...
...
1
GEAR KIT HUS-544064001
...
2
GASKET HUS-575746301
...
3
WASHER 6,4X18X1,5 HUS-503230024
...
4
BRACKET HUS-537232101
...
5
NUT HUS-503221012
...
6
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
7
GREASE NIPPLE HUS-738881001
...
8
PLUG * HUS-537416601
...
9
PLATE HUS-544000401
...
10
WASHER - M6 HUS-734115201
...
11
WASHER HUS-737385200
...
12
NUT FLANGE - M6 HUS-732251601
...
13
HANDLE HA850 HUS-537233001
...
14
SCREW MC6S 6X16 HA850 HUS-725536855
...
15
PLUG HUS-544093101
...
16
GEAR HOUSING HUS-537231701
...
17
WASHER HUS-537294201
...
18
SUPPORT BUSHING HUS-537233601
...
19
BALL BEARING HUS-738219804
...
20
GEAR HUS-537232801
...
21
CONNECTING ROD HUS-537232001
...
22
WASHER HUS-537404801
...
23
WASHER HUS-503230302
...
24
WASHER HUS-537341801
...
25
BALL BEARING HUS-738219804
...
26
SCREW MC6S 5X10 HUS-725532555
...
27
BALL BEARING HUS-537406402
...
28
RETAINING RING SGH 35 HUS-735313310
...
29
RETAINING RING HUS-735311900
...
30
BALL BEARING HUS-738219804
...
31
SCREW HUS-725529101
...
32
PLATE HUS-537341501
...
33
SCREW MC6S 4X8 HUS-725528755
...
34
GASKET HUS-575746301
...
35
COVER HUS-537231801
...
36
RETAINING RING HUS-735312510
...
37
RETAINING RING HUS-735311100
...
38
SPACER HUS-537233701
...
39
BALL BEARING HUS-738219904
...
40
GEAR HOUSING HUS-537231601
...
41
SCREW HUS-503200725
...
42
SCREW HUS-503201412
...
43
NUT FLANGE - M6 HUS-732251601
...
44
WASHER - M6 HUS-734115201
...
45
SEALING HUS-537394901
...
46
WASHER HUS-537294201
...
47
SHAFT HUS-537232601
...
48
KNOB HUS-537442301
...
49
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
50
SCREW MC6S 5X16 HUS-725532955
...
...
...
