Husqvarna H 51 (954140045A) (1998-02) Walk Mower

Model: H 51 (954140045A) (1998-02)

Save Part Not Listed?

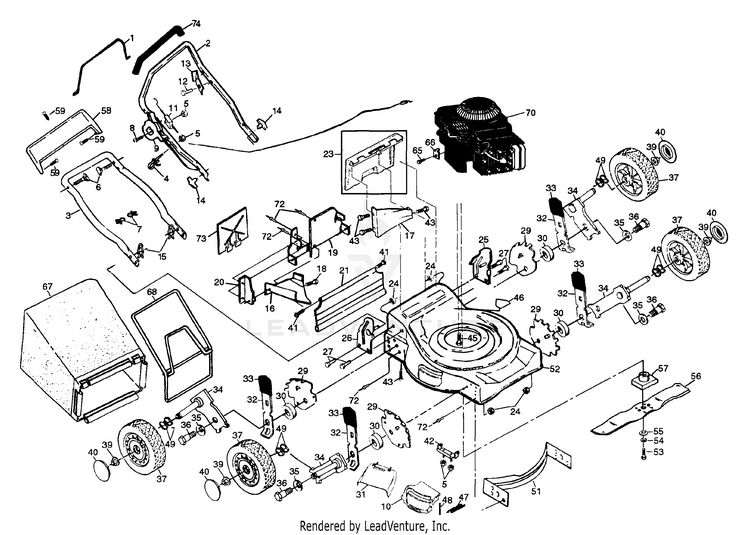

product name

Rear Bagger Mower

...
...
1
CONTROL BAR/BLACK HUS-532850735
...
2
UPPER HANDLE HUS-532166268
...
3
HANDLE.LOWER.BLACK HUS-532157081
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
7
WIRE TIE HUS-532007192
...
8
SCREW.PAN.HEAD HUS-532158755
...
9
THROTTLE CONTROL HUS-532700417
...
10
COMBI-CUT DOOR HUS-532150654
...
11
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
12
SCREW HUS-817021008
...
13
BRACKET.UPSTOP HUS-532850733
...
14
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
15
HAIRPIN COTTER HUS-532051793
...
16
DISCHARGE BAFFLE HUS-532133188
...
17
REAR BAFFLE HUS-532125035
...
18
SCREW.HXTAP.10-24 HUS-532150050
...
19
BACK PLATE HUS-532700356
...
20
SIDE BAFFLE HUS-532700363
...
21
SKIRT.REAR.20RD HUS-532188984
...
23
REAR DOOR ASSEMBLY KIT (Incl. Ref. #58) HUS-532147613
...
24
Nuts HUS-596322601
...
25
HANDLE BRACKET ASSEMBLY - LEFT HUS-532153030
...
26
HANDLE BRACKET ASSEMBLY-RIGHT HUS-532153029
...
27
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
29
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
31
CLIP-ON DISCHARGE DEFLECTOR HUS-532145285
...
32
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
33
SELECTOR KNOB HUS-532701037
...
34
ARM.AXLE.ASM.BZP HUS-532145935
...
35
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
36
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
37
WHEEL.8X2.PR.LP.RAD.GREY HUS-532750550
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
40
HUBCAP.8".GREY HUS-532157008
...
41
HINGE SCREW HUS-532088652
...
42
BRACKET.HINGE ASM.W/FIN HUS-532147775
...
43
SCREW HUS-532054583
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
47
SPRING HINGE HUS-532152186
...
48
ROD.HINGE.COMBI-C HUS-532147286
...
49
KIT.O-RING/WASHER HUS-532428450
...
51
KIT.BAFFLE.FRT.20RD.FO.PU/FBD. HUS-532170540
...
52
HOUSING ASSEMBLY (INCL REF 46) (Incl. Ref. #46) HUS-532154697
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
54
Washers HUS-596238701
...
55
WASHER,HARDEN HUS-532851074
...
56
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
57
ADAPTOR.BLADE.7/8 HUS-581547901
...
58
TRIM PLATE HUS-532157070
...
59
FASTENER HUS-532701477
...
65
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
66
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs and Stratton dealer. HUS-532125078
...
67
HUS-532134048
...
68
CATCHER.FRAME.WALK HUS-532088614
...
72
RIVET BLIND HUS-532128415
...
73
MULCH.PLUG.20RD HUS-532166650
...
74
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
xx
DECAL HUS-532157090
...
xx
H51 OPER MANUAL HUS-532159298
