Husqvarna Grass Collector - H348F (2009-12) Grass Collector

Model: Grass Collector - H348F (2009-12)

Save Part Not Listed?
product name

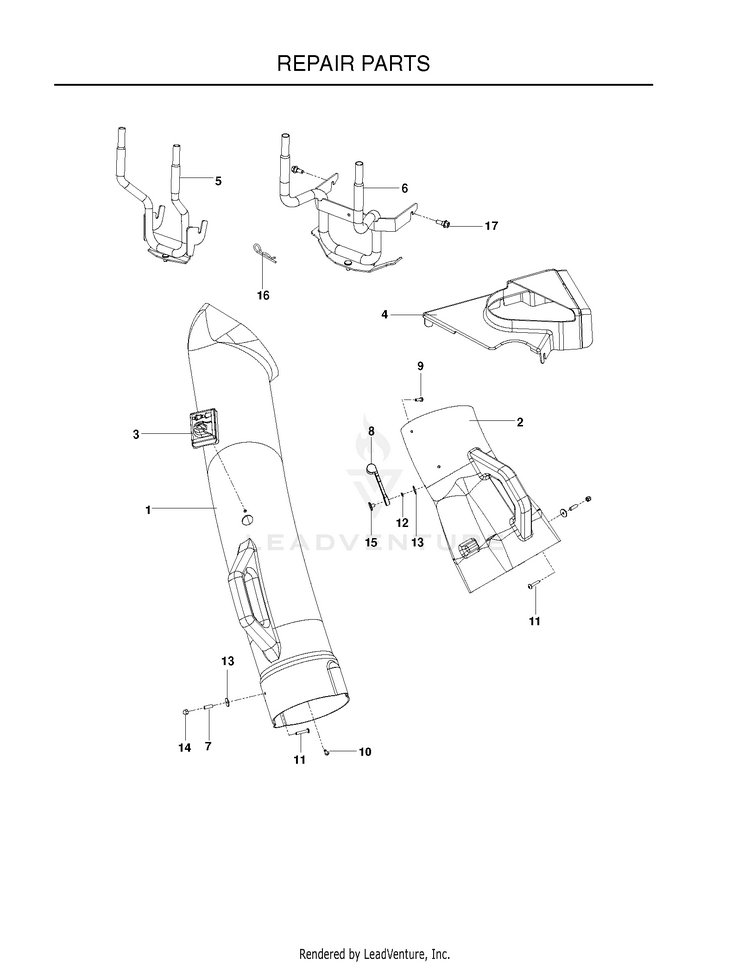

REPAIR PARTS

...
...
10
SCREW HUS-818021008
...
4
SHIELD, BELT, 48 HUS-575467801
...
16
Pins HUS-596273101
...
8
LATCH.HOOD. HUS-532109808
...
9
Screws HUS-596039001
...
3
INDICATOR DUMP BAG HUS-532140572
...
13
WASHER HUS-539108084
...
5
BAGGER.ASM.SUPPORT.GT.TEX.BLAC HUS-532198128
...
1
CHUTE, UPPER - TRIMMED HUS-522739202
...
11
SCREW #10-24 X 1-1/8 ZD SPEC HUS-539108083
...
2
CHUTE, MIDDLE - TRIMMED HUS-575445501
...
12
Washers HUS-596987301
...
7
SPACER LT HUS-532007206
...
17
SHOULDER BOLT, SELF-TAP HUS-532176997
...
15
Nuts HUS-596987401
...
14
NUT 10-24 ACORN ZD HUS-539108086
...
6
BRACKET HUS-535280001

REPAIR PARTS 2

...
...
15
Screws HUS-596039001
...
11
PLUG, TUBING END HUS-532174083
...
6
CONTAINER BAG, SOFT HUS-532400226
...
9
SUPPORT.CHUTE.COLLECTION.BLACK HUS-539110234
...
4
SEAL.BAGGER.TOP.3-BIN.BLK HUS-532192550
...
18
Nuts HUS-596583702
...
14
HCS 5/16C X 1 1/4 HUS-539990627
...
13
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
5
GASKET.COVER.BAGGER HUS-532192603
...
17
Hardware HUS-596040801
...
3
BAGGER.ASM.FRAME.3BIN.BLACK HUS-532176990
...
16
RETAINER SPRING HUS-539108096
...
8
LATCH CER38 HUS-532130895
...
12
SPACER PLUG, BAGGER HUS-522801301
...
1
COVER.ASM.3BIN.GENERIC. HUS-532195373
...
10
FLEX TRIM, BLACK - LENGTH 1 FT HUS-589362602
...
2
SCREEN.COVER.BAGGER HUS-532192709
...
7
BAGGER.HINGE.PIN HUS-532192786

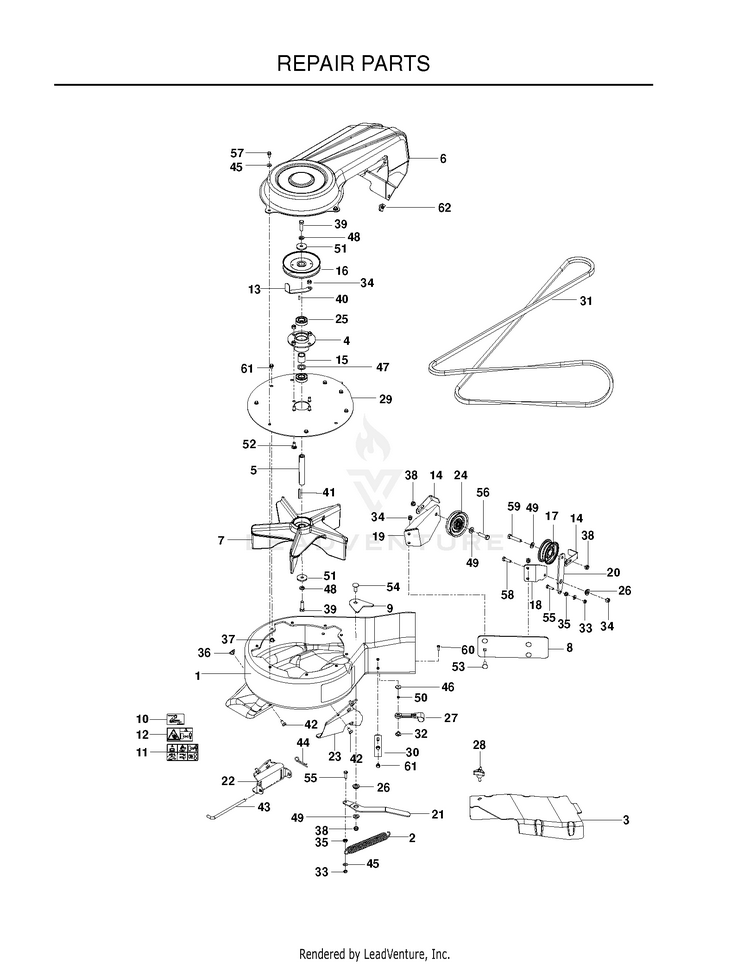

REPAIR PARTS 3

...
...
30
KEEPER HUS-539130346
...
26
BUSHING HUS-539130301
...
5
SHAFT, IMPELLER HUS-539130316
...
16
PULLEY HUS-539130324
...
58
Bolts HUS-596580801
...
54
Bolts HUS-595316801
...
25
BEARING HUS-539130296
...
39
BLADE BOLT HUS-532850857
...
14
KEEPER, BELT, REAR HUS-539131087
...
17
IDLER PULLEY HUS-539919078
...
60
Screws HUS-596039001
...
2
SPRING HUS-539101977
...
24
V-IDLER HUS-539113683
...
20
ARM, IDLER HUS-539130337
...
41
KEY-SQ. 3/16 X 1 1/2 HUS-539125229
...
19
MOUNT, IDLER, LOWER HUS-539130336
...
61
Screws HUS-596582701
...
48
Washers HUS-596238701
...
29
PLATE, OUTER HUS-539130341
...
35
NUT 1/4-20 HEX FLG LK ZD HUS-539108735
...
37
NUT 1/4-20 TEE HUS-539130314
...
22
BRKT, MT, FRONT HUS-539130339
...
47
WASHER .787 X 1.125 X .06 HUS-539910935
...
36
NUT 5/16-18 TEE HUS-539130313
...
62
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
46
WASHER HUS-539108084
...
34
Nuts HUS-596583702
...
52
GSPW Bolts HUS-595901601
...
9
PLATE, BACKING HUS-539132124
...
10
DECAL, BELT ROUTING HUS-539130349
...
59
Bolts HUS-596918101
...
12
EURO DECAL, IMPELLER HUS-539106741
...
23
BRKT, MT, REAR HUS-539130340
...
8
PLATE.BACKING.BLACK HUS-539132122
...
7
IMPELLER.COLLECTION.BLOWER.BLA HUS-539130292
...
32
Nuts HUS-596987401
...
4
HUB, BEARING HUS-539130295
...
11
DECAL, EURO WARNING HUS-539105785
...
33
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
MOUNT, IDLER, UPPER HUS-539130335
...
53
Bolts HUS-595901501
...
31
BELT, 48/52" HUS-539130347
...
50
Washers HUS-596987301
...
1
BLOWER.HOUSING.W/DECALS.COLLEC HUS-539130344
...
13
KEEPER, BELT, OUTER HUS-539131085
...
15
SPACER HUS-539130323
...
42
Bolts HUS-596433301
...
43
PIN HUS-539130317
...
55
Screws HUS-596565401
...
45
Washers HUS-596582301
...
27
LATCH.HOOD. HUS-532109808
...
56
HCS 3/8C X 1 1/2 HUS-539990655
...
38
Nuts HUS-596230801
...
6
COVER, BELT HUS-539130293
...
57
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
21
ARM, TENSION HUS-539130338
...
49
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
44
Pins HUS-596580601
...
51
WASHER.BLADE HUS-532140296
...
40
KEY, 3/16 X 1/2 HUS-539115667
...
28
GSPW Knobs HUS-597783101
...
3
COVER, BELT HUS-539130309
