Husqvarna GX 560 - 964000601 (2020-01) Walk Behind Mower

Model: GX 560 - 964000601 (2020-01)

Save Part Not Listed?
product name

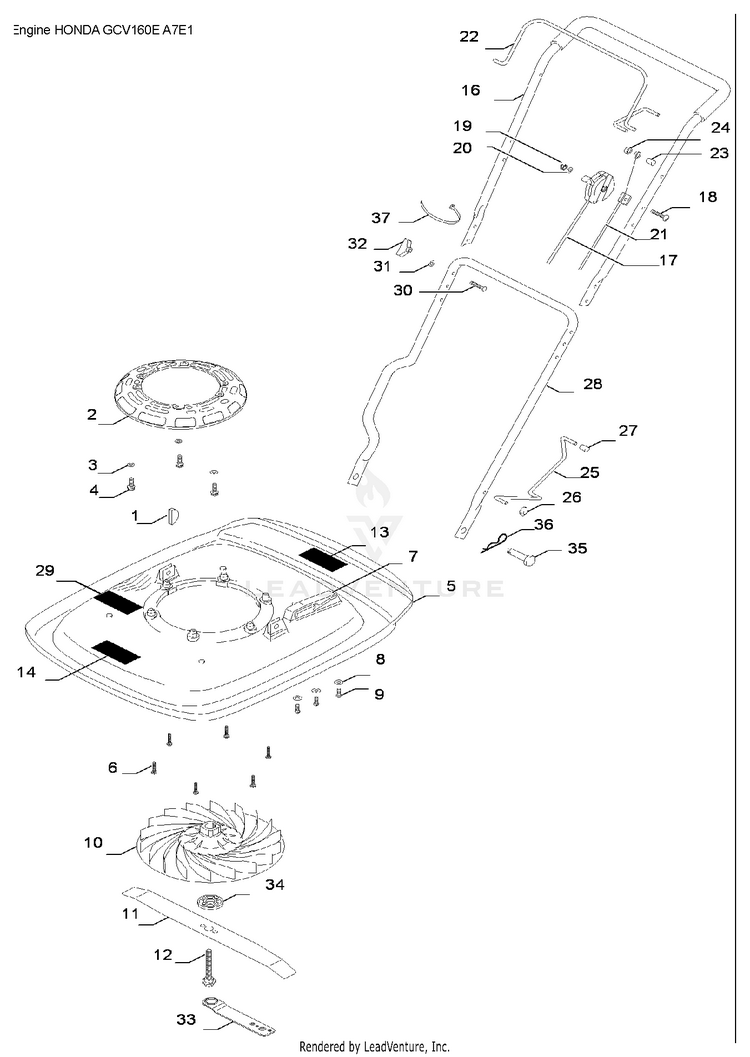

PRODUCT COMPLETE

...
...
23
Knob HUS-514647600
...
2
ADAPTER PLATE HUS-510683900
...
5
HOOD - HVT HUS-510620620
...
35
PIN/PIVOT HUS-514009203
...
6
SCREW HUS-513055800
...
27
Knob HUS-514647600
...
19
NUT M6 NYLOC GME/D HUS-514718000
...
8
Washer HUS-514931300
...
17
CHOKE CABLE HUS-512811000
...
9
SCREW HUS-514919701
...
13
NEEDS DESCRIPTION HUS-513998700
...
26
STARLOCK WASHER HUS-514668200
...
4
SCREW HUS-513088200
...
32
WINGNUT M6 HUS-513767900
...
11
NEEDS DESCRIPTION HUS-511900400
...
21
WIRE HUS-513084600
...
16
UPPER HANDLE HUS-511933400
...
24
NEEDS DESCRIPTION HUS-514927500
...
1
KEY HUS-514005300
...
34
SPACER WASHER HUS-513834000
...
29
LABEL:"STEP HERE" HUS-513790500
...
7
SLOTTED, GUIDE HUS-512621000
...
18
SCREW M6X55 HUS-725238151
...
12
BLADE BOLT HUS-514667704
...
14
NEEDS DESCRIPTION HUS-513118000
...
36
CLIP/SPRING HUS-514042300
...
31
WASHER HUS-514026600
...
30
BOLT HUS-514919801
...
28
LOWER HANDLE HUS-511924800
...
37
TIE WRAP (3.5 X 150) HUS-513084200
...
25
HOOK, SLOTTED GUIDE HUS-512753700
...
20
WASHER HUS-514026600
...
22
LOOP HUS-511801000
...
3
WASHER HUS-514961900
...
10
NEEDS DESCRIPTION HUS-577172301
