Husqvarna GTVH205 - 954140102A (1999-10) Riding Tractor

Model: GTVH205 - 954140102A (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

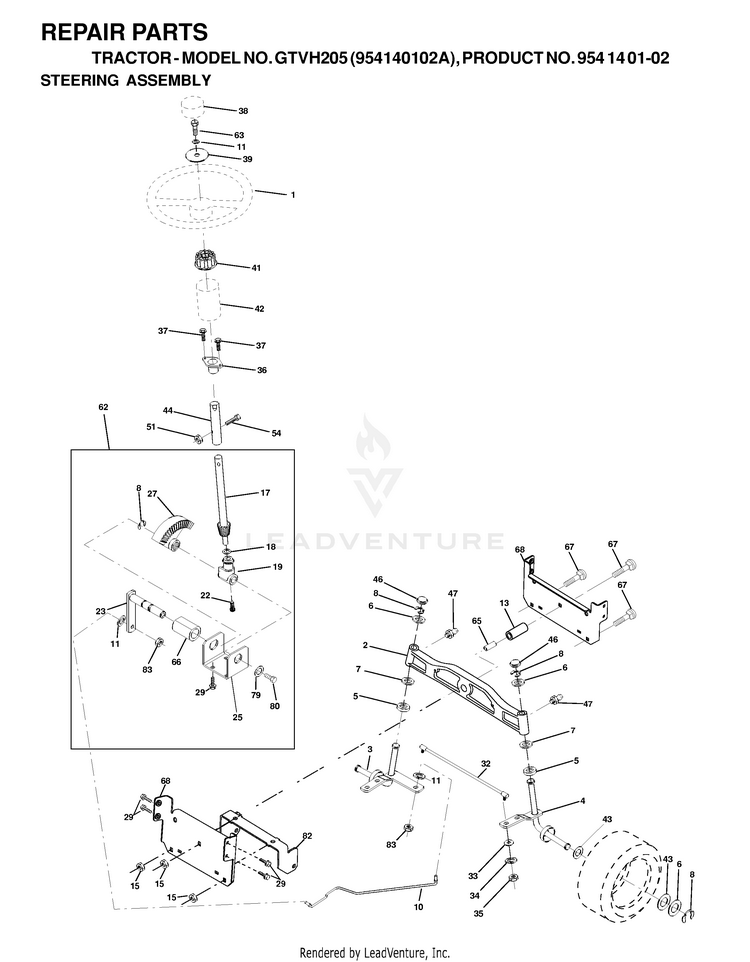

STEERING

...
...
25
BRACKET STEERING HUS-532154406
...
62
KIT.STEER.ASM.P/L HUS-584371701
...
51
Hardware HUS-596040501
...
32
TIE ROD HUS-532171888
...
12
NUT.HEX.1/2-20 HUS-873940800
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
...
17
SERVICE KIT SHAFT ASM ST HUS-531166901
...
2
AXLE.ASM.LT.CAST.LGHTWGHT HUS-532193542
...
8
RING CLIP HUS-812000029
...
10
DRAGLINK.15".TIRES HUS-532169832
...
5
WASHER THRUST HUS-532006266
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
44
SHAFT EXT STEERING HUS-532153721
...
23
SERVICE.KIT SHAFT ASSY SHAFT A HUS-531154301
...
82
SERVICE.KIT BRACKET HUS-531170201
...
43
WASHER HUS-532121749
...
19
STEERING SHAFT SUPPORT HUS-532160395
...
41
STEERING WHEEL ADAPTOR HUS-532159945
...
65
SPACER.BRACE.AXLE HUS-532414736
...
63
Bolts HUS-596564401
...
27
GEAR.SECTOR HUS-532136874
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
36
KIT.BUSHING.STEERING HUS-532155106
...
38
INSERT.CAP.STRG.WH (3 2) (L B) HUS-532172092
...
1
STEERING WHEEL HUS-532166627
...
6
WASHER HUS-532121748
...
11
Washers HUS-596238701
...
18
THRUST WASHER HUS-532057079
...
42
STEERING BOOT, GRAY HUS-532145054
...
66
BEARING ARM HUS-532154404
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
54
Screws HUS-595305701
...
13
TUBE, PIVOT AXLE HUS-532136518
