Husqvarna GTVH205 - 954140102A (1999-10) Riding Tractor

Model: GTVH205 - 954140102A (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

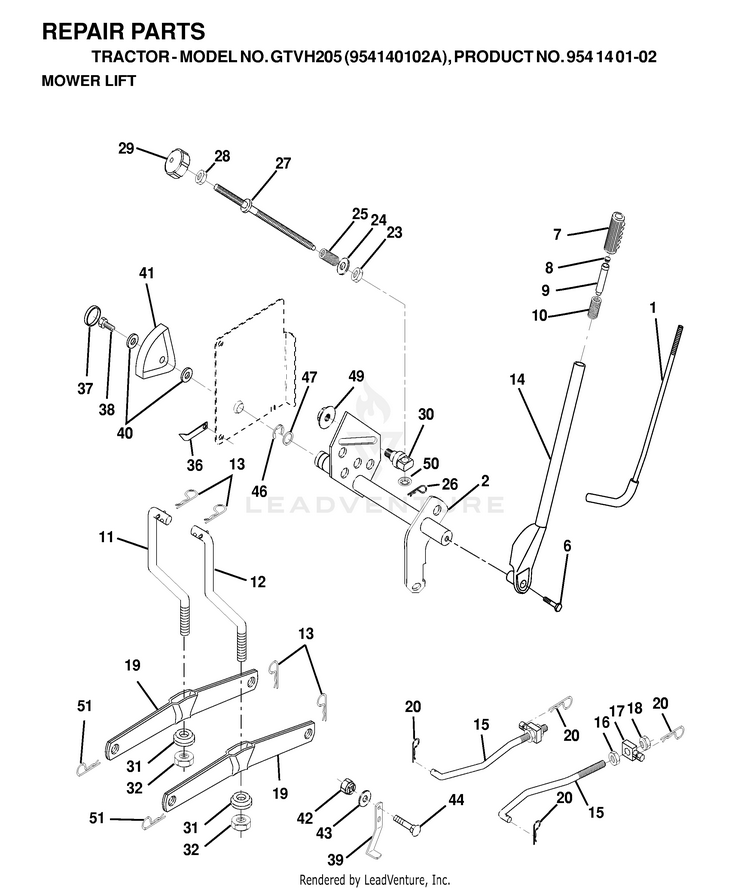

MOWER LIFT / DECK LIFT

...
...
10
SPRING HUS-532002876
...
9
PLUNGER BUTTON KIT HUS-532125925
...
15
LINK.SUSPENSION.FRONT HUS-532173288
...
19
SERVICE KIT ARM ARM.REAR.SUSPE HUS-531165801
...
32
NUT CROWNLOCK 3/8-24 HUS-873540600
...
14
LEVER ASSY-LIFT RH HUS-532159189
...
11
LIFT LINK LH HUS-532145537
...
36
POINTER, HEIGHT INDICATOR(2 2) HUS-532155097
...
12
LIFT LINK RH HUS-532145536
...
23
NUT T HUS-532110807
...
41
HEIGHT INDICATOR HUS-532123934
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
13
RETAINER-SPRNG RB HUS-532124670
...
25
SPRING HUS-532002876
...
17
TRUNNION HUS-532175689
...
46
E-RING HUS-812000022
...
7
GRIP HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
2
Shaft Assembly, Lift HUS-532159188
...
1
LEVER ROD LT HUS-532121006
...
37
PLUG,HOLE HUS-532123935
...
39
MOWER STOP HUS-532142992
...
50
NUT PUSH M HUS-532110452
...
29
KNOB INF 3/8-16 HUS-532138057
