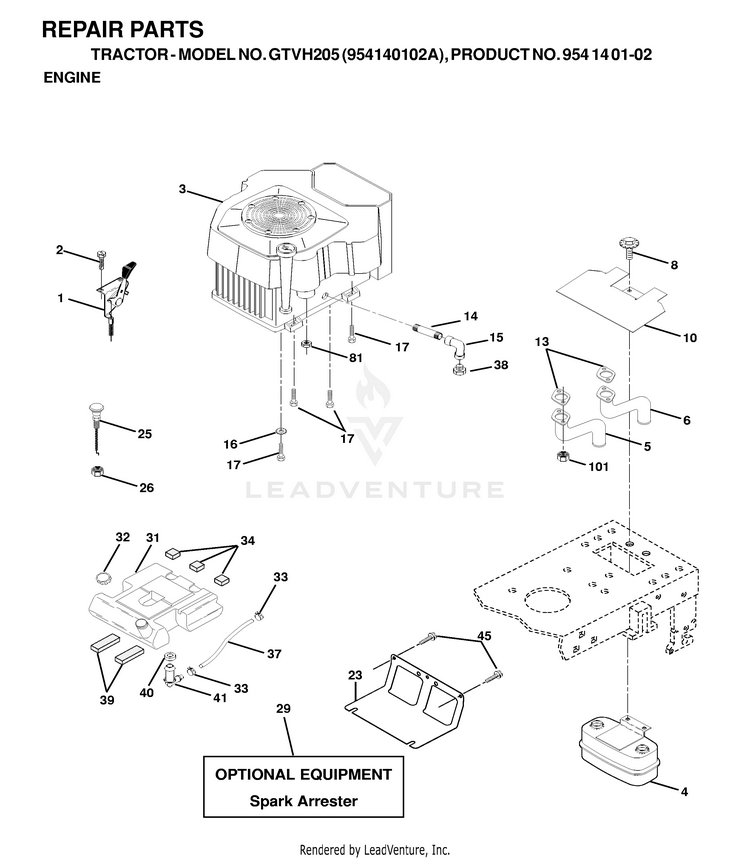

Husqvarna GTVH205 - 954140102A (1999-10) Riding Tractor

Model: GTVH205 - 954140102A (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
41
STEM FUEL TANK HUS-532139277
...
25
CONTROL, CHOKE HUS-532145996
...
5
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
34
PAD-SPACER LT HUS-532106082
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
39
PAD IDLER TI HUS-532109227
...
6
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
33
HOSE CLAMP HUS-532123487
...
26
Nut Keps 3/8 - 24 UNF HUS-873920600
...
40
BUSHING OUTLET T HUS-532003645
...
14
Nipple, Pipe 3/8 NPT x 4-1/2 HUS-813280336
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
31
FUEL TANK 3.5G HUS-532151346
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
101
Nuts HUS-596433401
...
1
CONTROL,TH/CH FLAG HUS-532170863
...
15
VALUE.OIL.DRAIN HUS-532428287
...
81
NUT.HEX..25-20.UNC HUS-532050675
