Husqvarna GTVH205 - 954140102A (1999-10) Riding Tractor

Model: GTVH205 - 954140102A (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

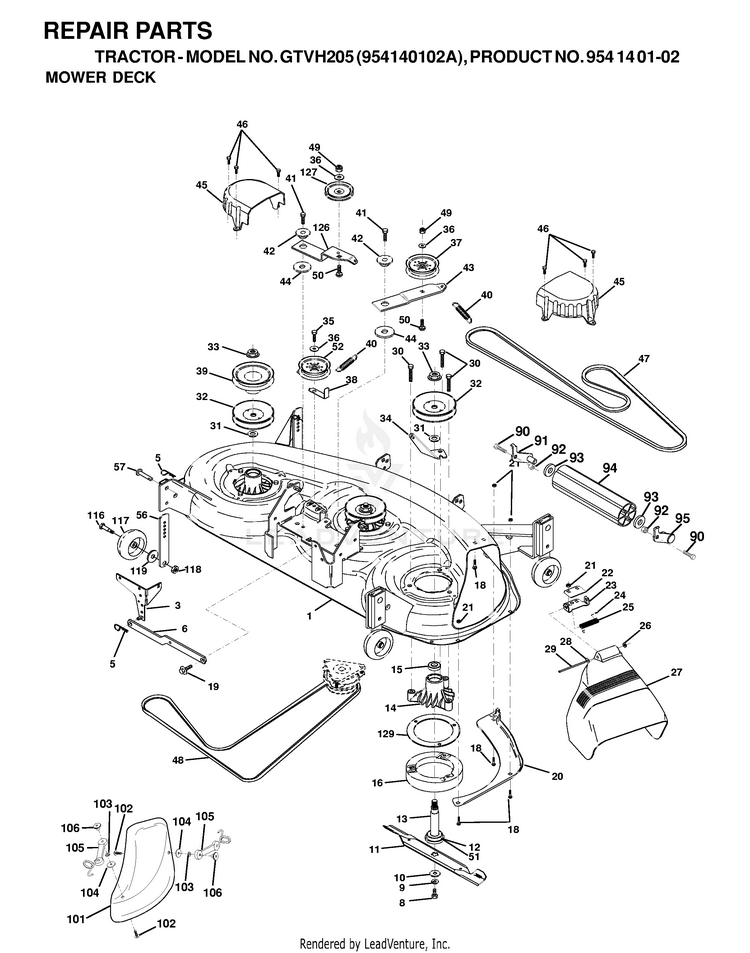

MOWER DECK / CUTTING DECK

...
...
24
CAP-SLEEVE LT HUS-532105304
...
101
COVER.MULCH.46"3-BLADE.(2 2) HUS-532145579
...
48
V-BELT PRIMARY 50" HUS-532148763
...
105
WASHER HUS-819061216
...
42
SPACER.RETAINER.MOWER HUS-532165723
...
3
BRACKET SWAY BAR HUS-532138457
...
32
MANDREL PULLEY HUS-532173434
...
43
ARM IDLER DECK 46" HUS-532144949
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
34
ANCHOR, SPRING DECK 46" HUS-532144945
...
38
KEEPER.BELT.IDLER HUS-532156086
...
44
WASHER HUS-532178515
...
126
ARM IDLER PRIM 46 HUS-532144948
...
47
BELT V SECONDARY HUS-532144959
...
127
PULLEYS HUS-593787801
...
56
BAR.ADJUST.WHEEL.ANTI.SCALP.BL HUS-532155986
...
52
PULLEY.IDLER.FLAT.46".PRIMARY HUS-532173901
...
104
Nuts HUS-596987401
...
45
COVER MANDREL 46 HUS-532145059
...
102
Screws HUS-596039001
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
25
SPRING TORSION HUS-532123713
...
532152443
MULCH BLADE 46" HUS-532152443
...
117
WHEEL GAGE DONUT HUS-532133957
...
22
STIFFENER BRACKET HUS-532134753
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
37
CLG HUS-597025001
...
26
NUT PUSH M HUS-532110452
...
- -
KIT.MANDREL.ASM.44"/46/50"SRVC HUS-532143651
...
106
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
13
SHAFT.ASM.W/BEARING HUS-532137553
...
11
BLADE.46".HI-LIFT.PREMIUM HUS-532176084
...
15
BEARING HUS-532110485
...
103
LOCKWASHER #10 HUS-810071000
...
8
BLADE BOLT HUS-532850857
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
94
NOSE ROLLER HUS-532132264
...
10
WASHER.BLADE HUS-532140296
...
14
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531154201
...
51
WASHER FELT HUS-532153390
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
39
PULLEY.DRIVEN.DECK.46" HUS-532144917
...
23
SERVICE KIT BRKT HUS-529845901
...
40
SPRING.SEC.44"VEN HUS-532137273
