Husqvarna GTVH205 - 954140102A (1999-10) Riding Tractor

Model: GTVH205 - 954140102A (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

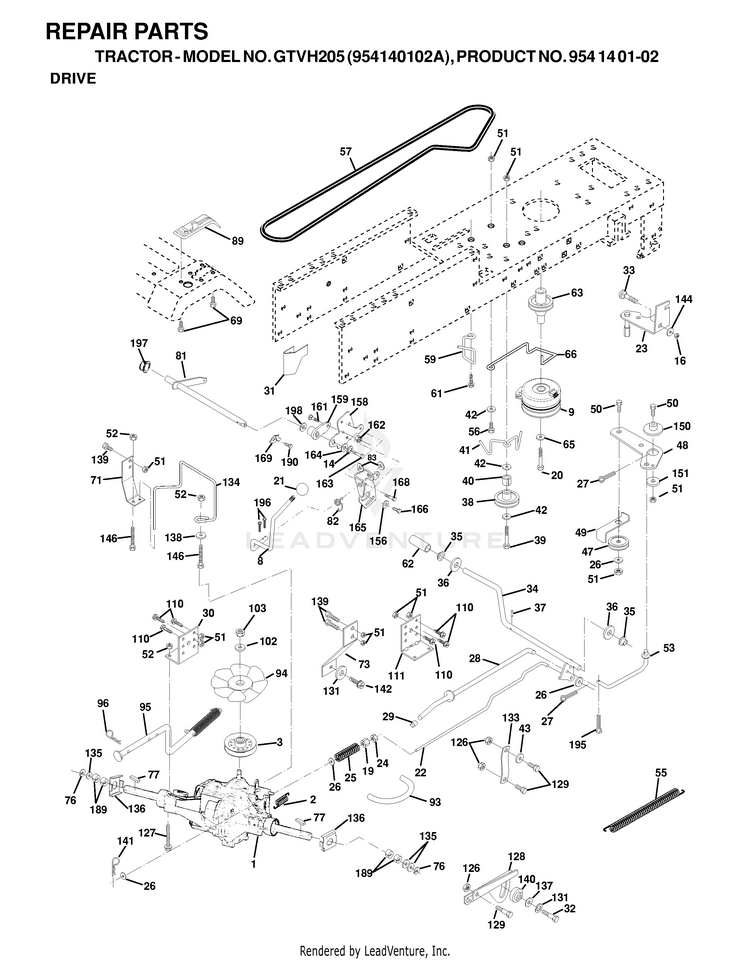

DRIVE

...
...
35
BEARING.NYLON HUS-532120183
...
198
WASHER.NYL.7/8IDX.105"HYD CR HUS-532169593
...
47
PULLEY IDLER HUS-532139245
...
63
ENGINE PULLEY HUS-532161400
...
52
Hardware HUS-596040501
...
158
BRACKET.SHIFT.MOUNT HUS-532437458
...
71
STRAP.TORQUE.LH.HYDRO HUS-532158283
...
34
SHAFT, FOOT PEDAL HUS-532155071
...
31
KEEPER BELT LH HUS-532123791
...
94
FAN 7" HYDRO HUS-532140462
...
38
CLG HUS-597025001
...
62
PAD, FOOT PEDAL HUS-510089501
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
93
LINE FUEL HYD 4" HUS-532142564
...
59
KEEPER, BELT CENTER HUS-532169691
...
40
SPACER T HUS-532124965
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
29
PLUNGER CAP HUS-532071673
...
134
BELT GUIDE HUS-532158278
...
128
Bracket HUS-532158284
...
2
SPRING BRAKE HUS-532142431
...
66
BELT KEEPER HUS-532161488
...
165
SERVICE KIT BRACKET BRACKET.PI HUS-531149501
...
23
BRACKET HUS-532171258
...
3
PULLEY, TRANSAXLE HUS-532143995
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
69
Screws HUS-596134101
...
150
BUSHING.BELLCRANK.GRD.DR HUS-532165850
...
9
ELECTRIC CLUTCH HUS-532160889
...
55
SPRING, RETURN LT HUS-532105709
...
166
SCREW HUS-532166880
...
169
PLATE FASTENING LT HUS-532165581
...
95
CONTROL.ASM.BYPASS.HYDRO-3000 HUS-532158508
...
136
WASHER.AXLE.FLANGE.HG-3000 HUS-532163168
...
102
WASHER HUS-532141322
...
41
KEEPER.BELT.IDLER.FLAT HUS-532165838
...
76
E RING HYT HUS-812000053
...
135
WASHER HUS-532123800
...
8
ROD SHIFT FENDER HUS-532166020
...
141
Pin HUS-532159197
...
30
BRKT TRANS LH HUS-532123780
...
81
SHIFT.ASM.CROSS.TAPER HUS-532165598
...
159
HUB.SHIFT HUS-532444304
...
21
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
111
BRKT TRANS RH HUS-532123776
...
57
BELT HUS-532161741
...
140
Bushing HUS-532004475
...
133
LINK, TRANSAXLE HUS-532165926
...
48
BELLCRANK, CLUTCH HUS-532154407
...
197
NYLINER SNAP 5/8" ID HUS-532169613
...
82
SPRING,TORSION HUS-532123782
...
73
STRAP.TORQUE.RH.HYDRO HUS-532158282
