product name

Husqvarna GTH3052 TF - 96041026501 (2012-01) Riding Tractor

Model: GTH3052 TF - 96041026501 (2012-01)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

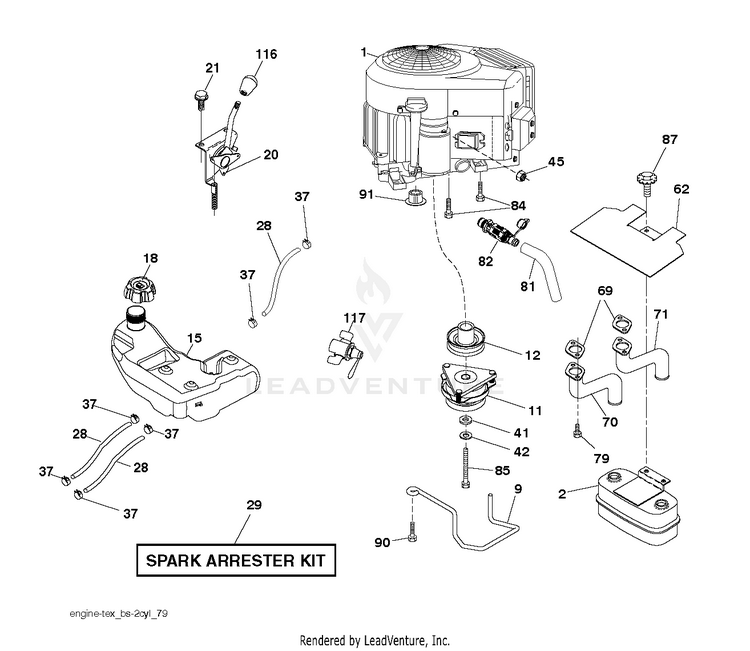

ENGINE

...
...
90
SCREW 3/8-16X1 HUS-817000616
...
84
SCREW.3/8-16 HUS-817060620
...
82
VALUE.OIL.DRAIN HUS-532428287
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
12
PULLEY ENGINE HUS-532194343
...
9
KEEPER BELT ENGINE HUS-532408667
...
21
Screws HUS-596321701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
69
GASKET.MUFFLER HUS-532165391
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
37
HOSE CLAMP HUS-532123487
...
42
Washers HUS-596238901
...
87
BOLT.5/16-18UNCX1.W/SEMS.BLK HUS-532198239
...
41
WASHER HUS-532126197
...
1
ENGINE B&S MODEL NO. 49M877-5598-G5 (448325) HUS-000000000
...
117
VALVE FUEL RESERVE HUS-532420828
...
20
CONTROL.THROTTLE/CHOKE.PRO.45 HUS-586219601
...
116
KNOB - SHIFT HUS-539132624
...
11
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
79
Screws HUS-596134202
...
15
TANK FUEL HUS-532422804
...
91
BUSHING.1.375OD HUS-532187495
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
85
BOLT HEX 7/16-20 X 3.75 GR. 5 HUS-532179953
...
...
...
