Husqvarna GTH27V52 LS - 96043009900 (2009-12) Riding Tractor

Model: GTH27V52 LS - 96043009900 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

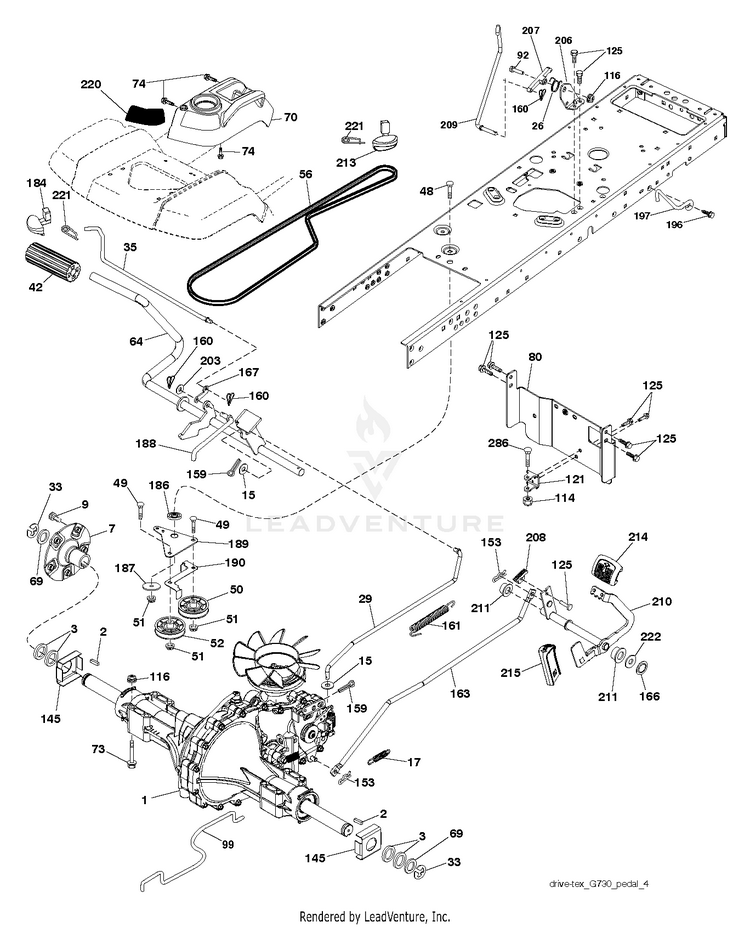

DRIVE

...
...
114
Hardware HUS-596040501
...
49
Bolts HUS-596136201
...
99
SPRING.BYPASS.YT.G700 HUS-532418188
...
159
Pins HUS-596029501
...
121
BRACKET STRAP TORQUE HUS-532175611
...
214
PEDAL.FORWARD.HUSQVARNA.DEALER HUS-532416863
...
35
Rods HUS-583864502
...
69
WASHER HUS-532123800
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
56
V-BELT.GROUND.DRIVE. HUS-532420807
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
190
KEEPER BELLCRANK ROUND DRIVE HUS-532407505
...
166
NUT.PUSH.625 HUS-532429164
...
208
Gears HUS-596564101
...
29
ROD BRAKE HUS-532418186
...
42
PAD, FOOT PEDAL HUS-510089501
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532197860
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
73
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
74
Screws HUS-596134101
...
286
BOLT.5/16-18X2.5 HUS-872010520
...
207
Latch HUS-587031402
...
196
SCREW 3/8-16X1 HUS-817000616
...
2
KEY 1/4 X 2.5 HUS-532007070
...
161
SPRING, RETURN LT HUS-532105709
...
220
REFLECTOR.RH.TEX GT RH HUS-532198908
...
145
WASHER.AXLE.FLANGE.HG-3000 HUS-532163168
...
211
BEARING.NYLON HUS-532120183
...
7
SERVICE KIT HUB.ASM HUB.ASM.WH HUS-531149201
...
48
GSPW Bolts HUS-596136101
...
209
Rods HUS-596869801
...
33
E RING HYT HUS-812000053
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
9
Bolts HUS-596218701
...
187
Washers HUS-596135501
...
92
Screws HUS-595305701
...
163
ROD PEDAL CONTROL HUS-532418185
...
116
GSPW Nuts HUS-596135701
...
189
SERVICE KIT BELLCRANK BELLCRAN HUS-531171001
...
80
STRAP.TORQUE.YT.G700 HUS-532418184
...
1
TRANSAXLE HYDRO G7-BCBB-1XDC-1FCA HUS-000000000
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
186
SPACER.RETAINER HUS-532194321
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
160
GSPW Retainers HUS-596029401
...
3
WASHER T HUS-532007563
...
153
RETAINER M HUS-532004497
